MS-600A PVC Film Cold Glue Wrapping Machine for Profile 13

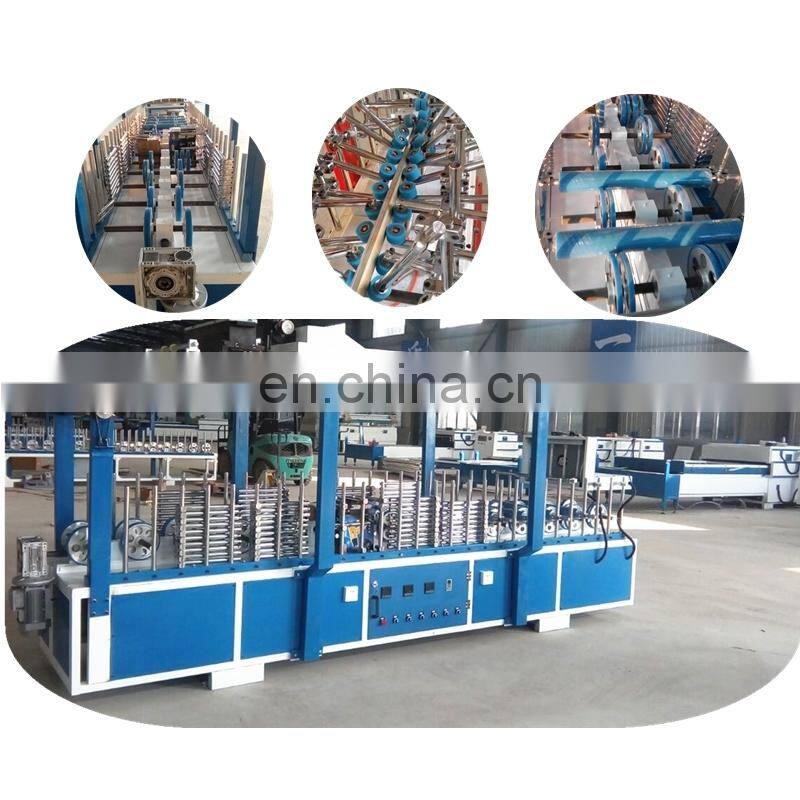

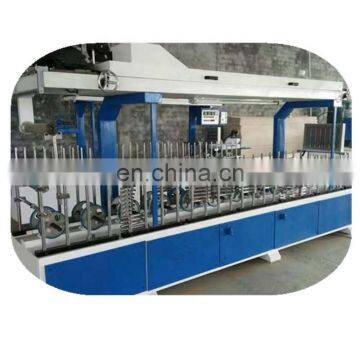

MS-600A  cold glue wrapping machine

PVC film Profile Wrapping Machine with coldglue/

MDF profile wrapping machine with cold glue

Working procedure

1. Coat the cold glue on the cladding material by glue roller

2. Heat the base material with cladding material on the drying tunnel, heating temperature is 40~~60℃

3. Make the cladding materials stick on the base material tightly by compression rollers.

Base material requirement: must be regular line profiles,which are allowable with grooves, curved surface . good pressure resistance is necessary ; and base material length should be more than 40mm.

Available cladding material: Pvc decorative film, decorative paper, solid wood veneer, Boeing board, composite aluminum film,etc.

Advantages: 1)Low cost in liquid glue and pvc film (cladding materials)  2) Machine price is economic , and wrapping speed is faster.

Disadvantage: 1)When heating on drying tunnel , Volatilization of glue is unfavorable to environmental protection.  2)It will take much longer time(about 48hours) to wait after wrapping .

MS-600A technical parameters

Company introduction

1. Own three factoris involved Aluminium profiles processing machine , AL/PVC window and door machines , Insulation glass machines.

2. Machine quality ,delivery time , after-sale service ,etc can be definately guaranteed ,

3. Machine price is definatley much more competitive than other trading company .

4. Machine guarantee time is definatley longer than others.

5. Machines have been exported to almost 20 countries .

Our service

1. Provide free installation service.

2. Design according to your requiremnts for free.

3. Provede technical assistance and analysis for fee

4. Machine Accissories will be provided for free .

5. Customers can get in touch with us any time by email , phone , etc.

Packages & shipping

All machines are packed in safe standard exporting wood cases .

Frequently asked questions

1.Q:  if machines can be customized according to requirements?

A: Yes , definately

2. Q: Lead time for a fully automatic powder coating production line?

A: 25-35 working days.

Parts of Exhibistions

 Parts of Installation
