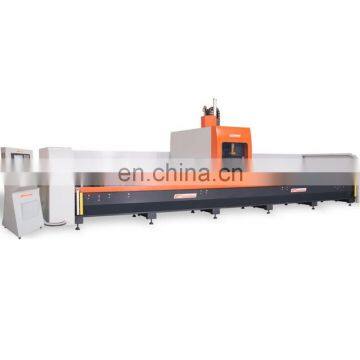

4 Axis CNC Milling Drilling Machining Center For Aluminum profile window and door curtain wall

4 Axis CNC Milling Drilling Machining Center For Aluminum profile window and door cutain wall

1)German design concept,: Used to drill, cut, mill as well as end face cutting.

2) High-speed electric spindle, 8-position tool magazine, automatic tool-changing . High-precision servo motor, ball screw, bearing. Main parts are international top brands.

1. After welding the bed, it is processed by the machining center once.  Machine head is an integral casting, durable and not deformed.

2. Adopt international top brand high precision ball screw, linear guide rail, gear rack, servo motor combined with German Haitieg 9.5 motorized spindle to ensure smooth movement, accurate processing, high efficiency

3,International top brand operating system, easy to operate, with a high speed motorized spindle of 4kW 9.5KW, an 8-position tool storehouse, Automatic tool change.

4. Exclusive designed clamping device, which is suitable for various types of profiles.

5.  All the moving parts are centralized lubricated by intermittent supply system, and the cutting saw are cooled by special cold spray system ,which can  improve the service life .

6. with cutting wastes recovery box,  feeding work table is movable.

7. Equipped with protection cover to ensure operators’satety.

Effective travel range:

   X-axis:0~7000mm  Y-axis:0~500mm   Z-axis:0~350mm   C-axis:0~180º

Processing accuracy:±0.1mm

Position accuracy:±0.05mm

   Repetitive positioning accuracy:±0.05mm

   X-axis:±0.1mm

Y-axis:±0.05mm

Z-axis:±0.05mm

C-axis:±0.05mm

Feeding speed

Running speed:

X-axis :80m/min

Y-axis 60m/min

Z-axis 30m/min

C-axis 25m/min
