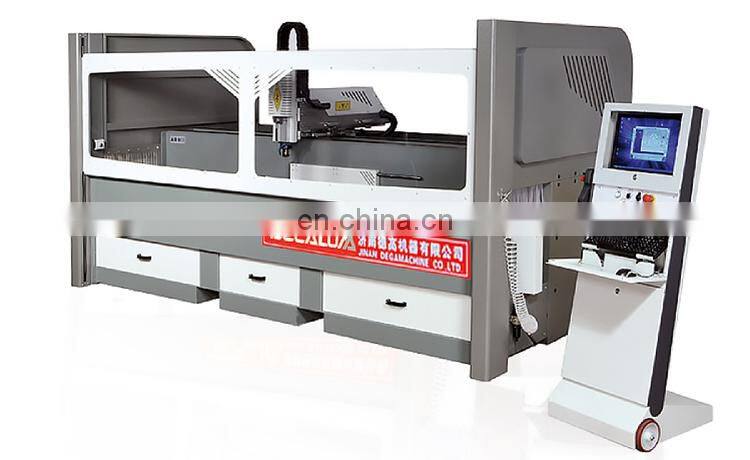

Aluminum Profile CNC Machining Centre
Machine function:
1. CNC machining centre is used for processing aluminum profile, light alloys, pvc and steel. Workbench is controlled by CNC and can rotate at any angle among -90°/0°/+90°.
2. Spindle is equipped with 4.5 KW motor, frequency controlled at 22000 rpm and has ISO30 quick tool handle.
3. The interpolation of X,Y,Z and W axis is controlled by CNC.
4. Working performance and overturning workbench are safe and reliable under the protection of sealing cover.
5. Equipped with 4 pneumatic clamping device, can store 6 tool(drilling,milling and tapping)in tool magazine.
6. Machine head is equipped with lubricating device and can realize full protection of machine head.
Technical Parameter:
Power supply | 380V50HZ, three phase five wire |
Total power | About 10 kW |
Air consumption | About 100 L/min |
Working pressure | 0.5-0.8MPA |
Max. X axis movement | 3500mm |
Max. Y axis movement | 700mm |
Max. Z axis movement | 560mm |
X axis speed | 60000mm/min |
Y axis speed | 20000mm/min |
Z axis speed | 20000mm/min |
W axis | -90°/0°/+90° |
Spindle power | S6 6.6KW S1 5.5KW |
Spindle rotary speed | 0-22000RPM |
Positioning accuracy | ±0.02mm |
Milling surface roughness | Ra12.5μm |
Processing range | 200*200MM |
Dimension | 5.1*1.8*2.1m |
Weight | 2300KG |
