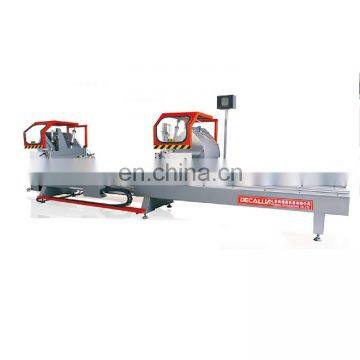

Aluminum profile digital display double head cutting saw

FOB Price

US$ 8,300 - 9,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

DECALUMA

Aluminum profile digital display double head cutting saw

Specification:

1. Designed for Cutting Aluminum profile and Curtain-wall accurately.

2. Imported Digital Display System automatically shows cutting length and cutting quantity, repeated positioning high precision, easy operation.

3. Machine head movement and saw blade feeding all use linear guide bearing, high moving precision.

4. Two heads can work together or lonely, when together work, one time can cut off the required length and angle.

5. Double Saw blade can automatically achieve 45 and 90 degree, and 22.5(optional) cutting.

7. Carbide saw blade is imported from Japan, have long life service.

8. Machine body uses high precision spindle, thus making saw blade stable movement.

9. Machine head movement and saw blade feeding all takes linear guide bearing, high moving precision.

Technical Parameter:

Power supply	Made to order
Motor power	2*2.2KW
Motor rotary speed	3400r/min
Operation air pressure	0.6 Mpa
Saw blades length	400~4200mm
Air consumption	200L/min
Cutting length	Max. 4200mm,Min. 220mm
Cutting width	Max. 190mm
Cutting angle	90°,45° 22.5°
Cutting profile surface plane	≤0.10mm
Cutting angle tolerance	Ra12.5 μm
Saw blade height max	300mm90°;200mm45°
Feeding speed	Stepless timing 0~3m/min
Saw blade specification	φ500mm×4.4mm×φ30mm Z=120
Overall Dimension	553017501950mm
Weight	1850kg
