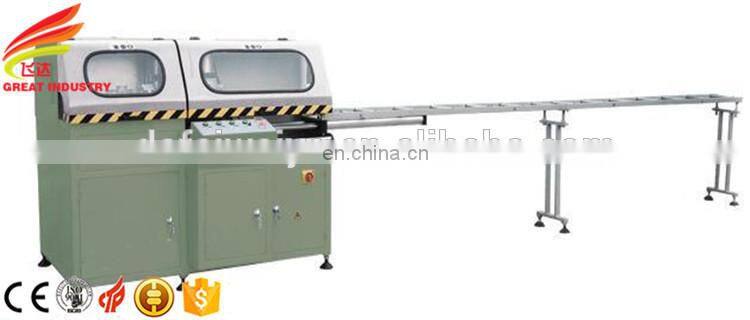

Made in China Single Head Aluminum Profile 90 Degree Angle Cutting Saw Machine

Made in China single head aluminum profile 90 degree angle cutting saw machine

Product Application aluminum angle cutting machine

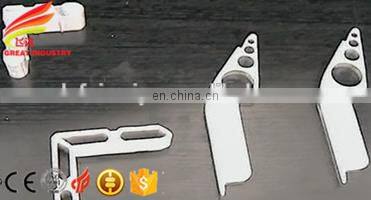

--Good at automatically cutting corner profiles, including thick-wall corner profiles.
--With automatic collecting tank for spare parts.
--With a trough for collecting cutting scraps and used coolant.
--Cooling spray system
--Safety cover for protecting operators from injury
--Automatic stop when processing finishes

Main Specification aluminum angle cutting machine

1) Max. length of profile: 300 mm
2) Mini. length of profile: 3 mm
3) Max. travel of sawing head: 90 mm
4) Blade diameter: Ф 450 mm
5) Blade aperture: Ф 30mm
6) Effective cutting length: 110 mm
7) Height of working stand: 1150 mm
8) Pneumatic working pressure: 0.5-0.8 MPa
9) Air consumption: 0.2 cubic m/min.
10) Blade feeding speed: 1-5 m/min.
11) Power of main motor: 3 kw
12) Rotational speed of spindle: 2800 rpm
13) Dimensions: 1150x2250x1450 mm
14) Weight: 500 kg

Cutting Precision aluminum angle cutting machine
1) Repetition on length: ± 0.1 mm
2) Repetition on angle: ± 5'
3) Verticality of cutting: 0.1 mm (100x100mm section)
4) Planeness of cutting surface: 0.1 mm (100x100mm section)
5) Roughness of cutting surface: Ra 12.5 µm

90° CUTTING ANGLE

                   GOOD STRUCTURE

HIGH PRECISION

          PERFECT PRODUCT
