Product Details
Brand Name | Trump | Place of Origin | Shandong, China | |
Model Number | LYA6-50 | Certification | CE | |
After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 year | |
Weight | 500kg | Dimension(L*W*H) | 1000*1200*1700mm | |
Voltage | 380V/220V Optional | Condition | New | |
Power(W) | 1.5kw | CNC or Not | Normal | |
Power Source | Hydraulic |
Product Description

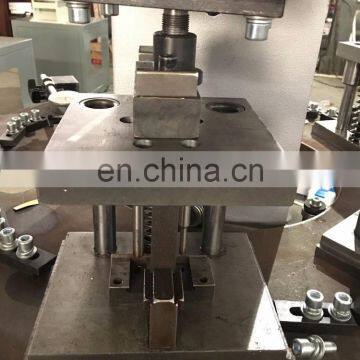

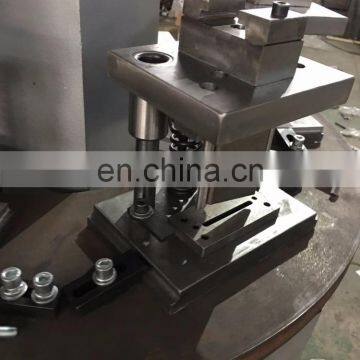

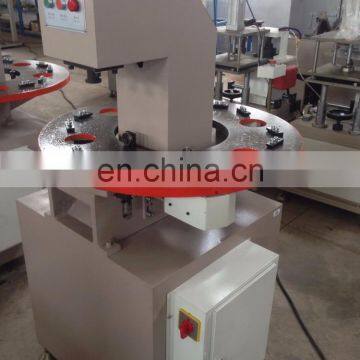

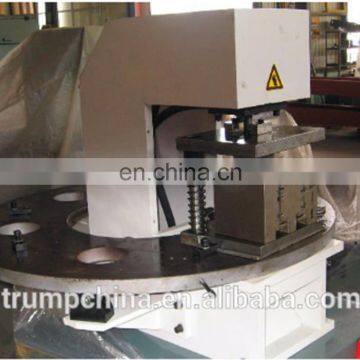

High quality hole punching machine for aluminium profile
1.Used for different kinds of holes punching.

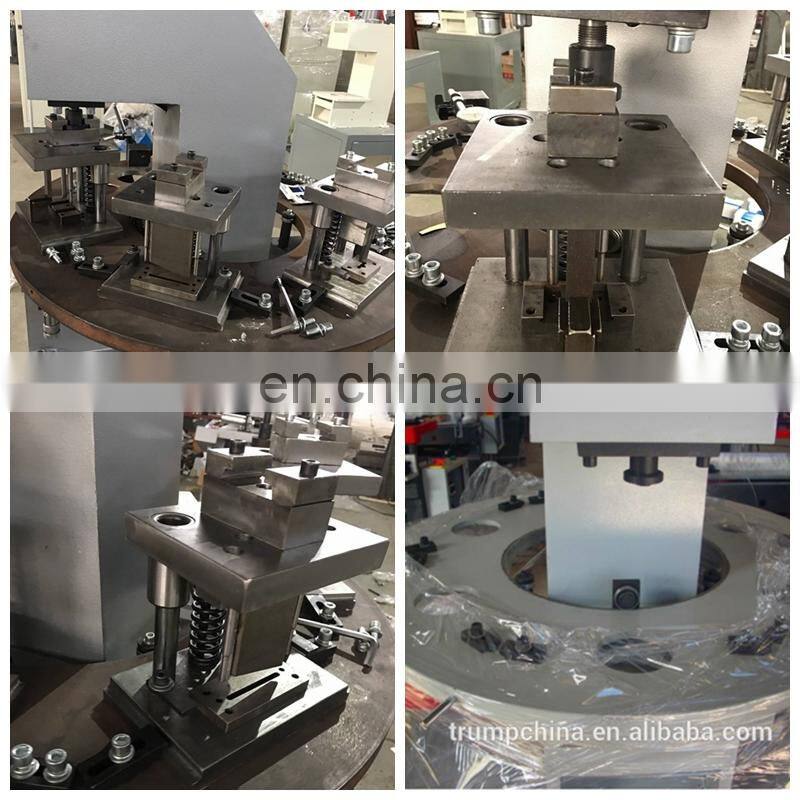

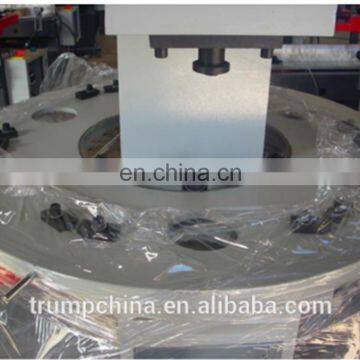

2.Rotating work table can be installed with six sets of dies.
3.Single position die can be designed and installed easily.
4.Hydraulic drive,great power for special kinds of holes.
5.Openside design,easy operation.
Brand | TRUMP |
Model | LYA6-50 |
Power Supply | 380V 50HZ |
Input Power | 1.5Kw |
Rated pressure | 16MPa |
Saw Blade specification | Φ250*Φ32,Φ300*Φ32 |
Capability of oil box | 20L |
Press nominal pressure | 50KN |
Closing height | 185mm |
Punching travel | 30mm |
Die size | 250*200*215mm |
Overall Dimension | 1000*1200*1700mm |
Weight | About 500Kg |
We work with everything from raw material to final machine, could guarantee machine quality from each step. select each part carefully, we are strive to quality first when machine production and test each machine before delivery.
We will provide the best machine for you.
Before payment
Free contact for the most suitable machine
Free professional design for each customer especially.
After sale service
24 hours technical support by phone, email or skype (email or skype) .
1years warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.
Payment
♦ L/C, 30% deposit by T/T,70% spare payment L/C.
♦ T/T, 30% deposit by T/T,70% spare payment before shipment.
♦ Western Union or Paypal.
Jinan Trump is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
