Saw Head Accessories for Aluminum Pvc Profile Cutting Saw
- Qingdao Port
- T/T Credit Card
You May Like
-
4 Head Automatic Plastic Upvc Welding Machine for Pvc Window and Door Making
-
Four Head Single Seamless Used Pvc Plastic Windows Doors Making Frame Welding Machine
-
Jinan Hisena Automatic Feeding, Long Stroke,90 Degrees,single Head Cutting Saw for Aluminum Alloy Profile
-
Jinan Hisena High Efficiency Aluminium Doors Window Manufacturing End Milling Machine for Mullion Connection
-
Jinan Hisena Cnc High Efficiency Aluminum Corner Cleat Cutting Saw Machine for Window Door Manufacturing
-
Jinan Hisena Multi Pieces Aluminum Heat Sink Cutting Circular Saw Cnc Machine
Product Details
| Brand Name | Hisena |
Product Description

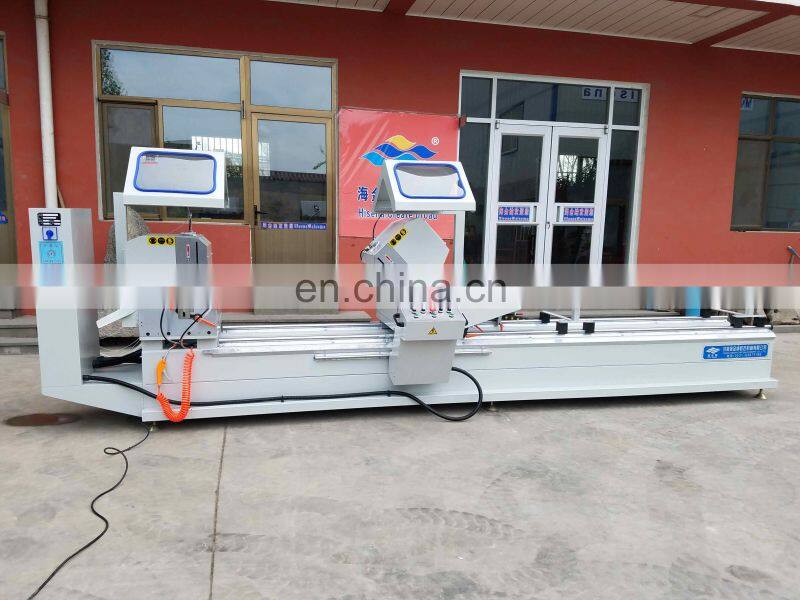

LJZ2-450*3700 High efficiency Double head Mitre Saw for aluminum curtain wall machine
Specifications
Double head Mitre Saw for aluminum curtain wall machine
1.aluminum mitre saw
2.Used for aluminum pvc profiles cutting.
3.CE.ISO 20000
High efficiency Double head Mitre Saw for Aluminum window machine , aluminum mitre saw LJZ2-450*3700
Main Features:
1. Used for not only aluminum profile and curtain wall profile cutting, but also corner connector cutting.
2. Feeding system adopts imported linear guide pair, with high accuracy and long service life.
3. 90°and inward 45° cutting is available.
4. Saw blade rotate smoothly due to high accuracy main spindle.
5. Imported carbide saw blade give accurate processing and high endurance.
6. Imported linear bearing motion pair ensured steady processing accuracy.
7. Uniform speed feeding and smooth motion due to airdraulic damping cylinder.
8. Auto-opening guard shield ensured safety operation.
Main Technique Parameter:
Power supply | 380V 50Hz |
Main motor power: | Power 2*1.5kw |
Input power | 3kw |
Air pressure | 0.4-0 .6 M pa |
Air consumption | 200L /min |
Main motor rotation speed: | 3000rpm. |
Max/min Cutting length | 3700-450mm |
Saw blade dimension: | φ450× φ30 |
Cutting angle: | 90 ° and inward45 ° |
Cutting W x H | 120x200 ( mm ) |
Repeat locating length | ≤0.2mm |
Angle cutting tolerance | ±5′ |
Plane of cutting surface | ≤0.10 |
Cutting profile surface roughness | Ra12.5um |
Size: (width × high × long) | 4500mm × 1170mm × 1400mm |
Weight: | 1500Kg |
Remarks

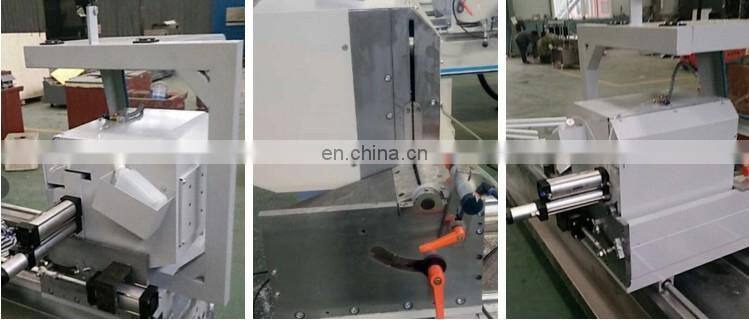

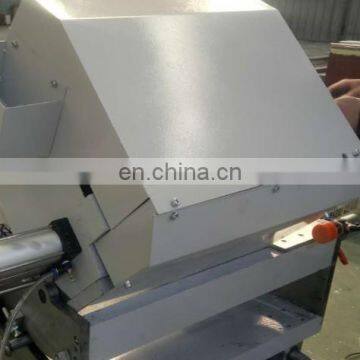

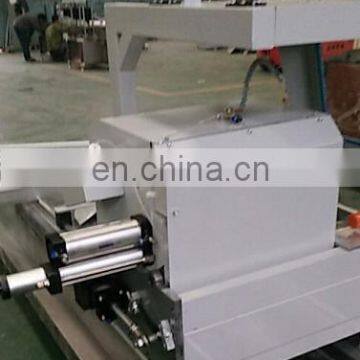

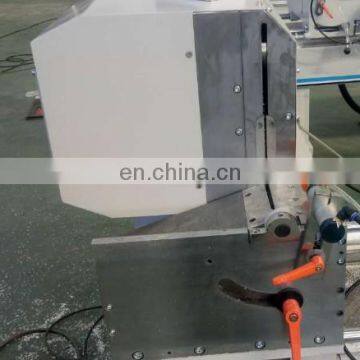

Finished saw head
Support custom single head, double heads and other accessories.
1.Payment Terms: 40% T/T in advance, 60% T/T balance before delivery.
2.Delivery Time:15 working days after payment.
