Upvc Aluminum Windows and Door Machines for Manufacturing

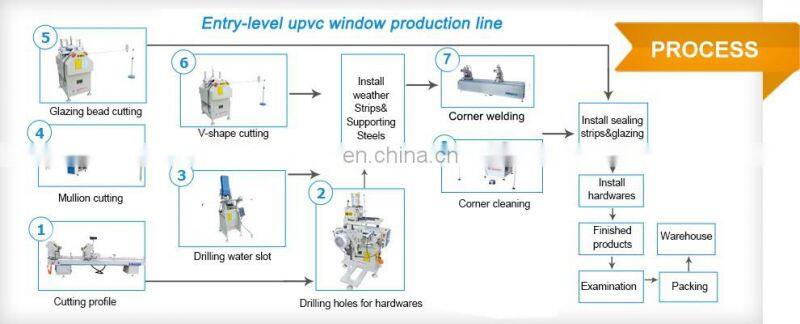

The picture below shows an entry-level production line for white upvc windows and doors.

Click on the picture for details.

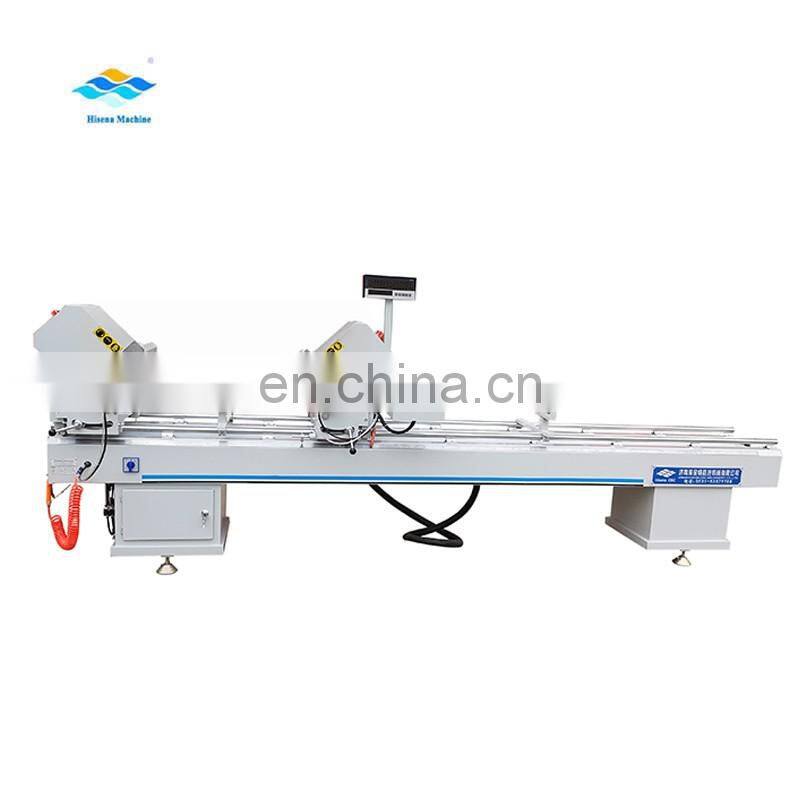

#1 Double head mitre saw

Cutting angles:manual ±45° and 90°

Maximum cutting width*height:105*140mm

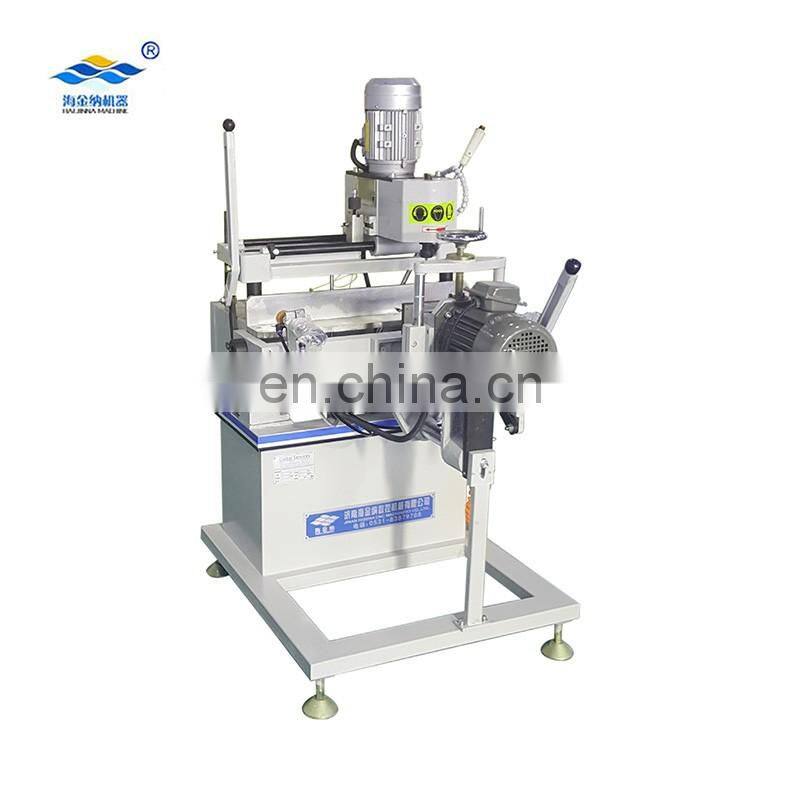

#2 Lock hole drilling machine

The front motor is used to drill lock mounting hole, and the rear motor is used to copy router mill the hole of the lock actuator.

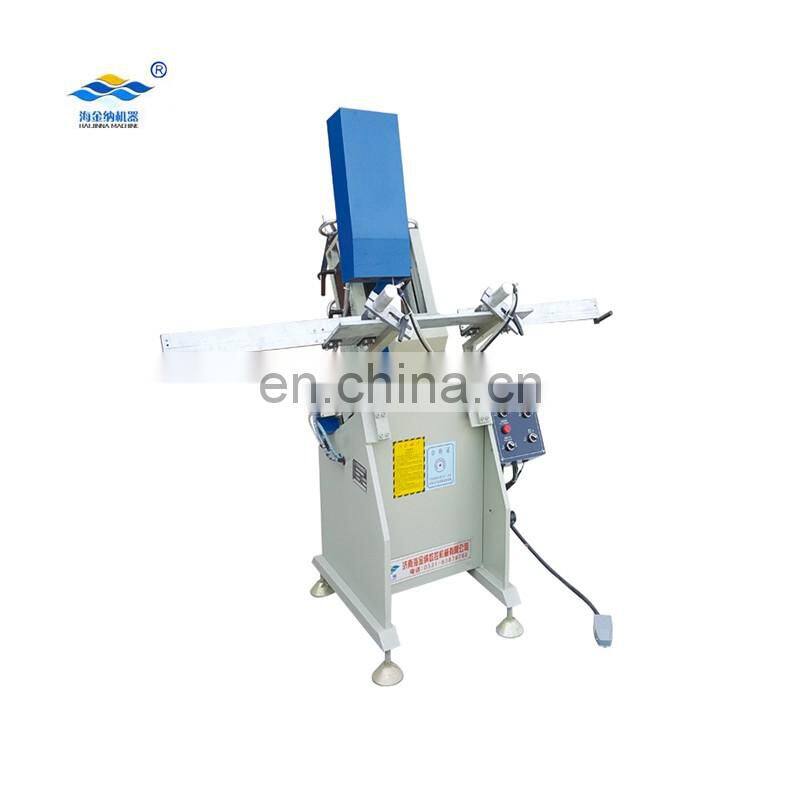

#3 Two-axis water slot milling machine

Two axes for machining 45° and 90° drain holes.

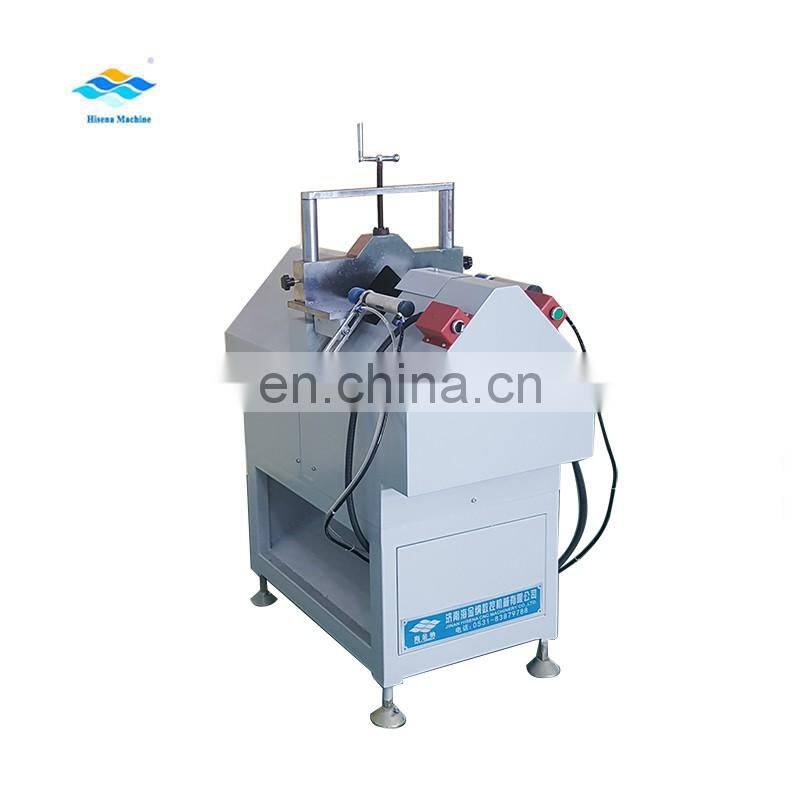

#4 Mullion cutting saw

1 Used for v shape cutting of the mullion profile
2 Two saw blade:φ300/400×30mm

#5 Glazing bead cutting saw

1 Used for 45 degree angle cutting of glazing bead
2 Two saw blades,can cutting two glazing bead profiles one time,more efficient
3 Grid type tooling can be adjusted for profiles of different widths

#6 V-notch cutting saw

1 Used for v shape cutting of the window frame
2 Two saw blade: φ300/×30×3.2mm

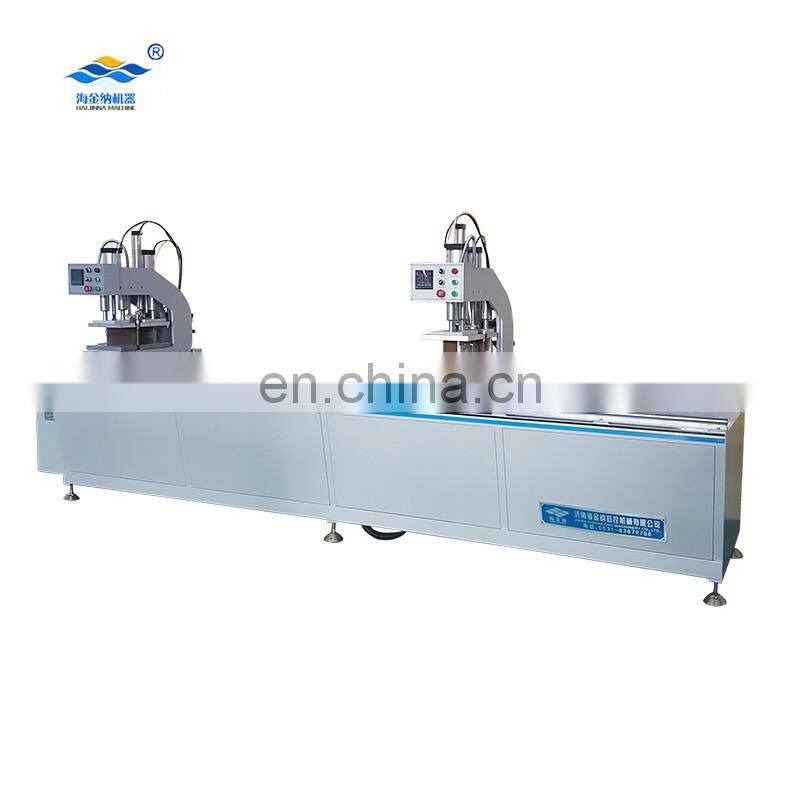

#7 Two head welding machine

1 seam welding

2 window corner welding and mullion corner welding are available.

#8 Corner surface cleanig machine

1 For cleaning both surface of window corners

2 Handle tools can be used for outer and inner corner cleaning.
