Home > Products > Road Construction Machinery > Motor Grader Top Supplier Fast Delivery 170hp Motor Grader PY165C for Africa Road Construction

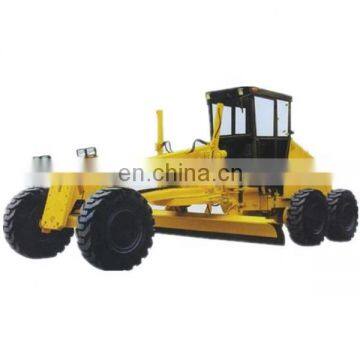

Motor Grader Top Supplier Fast Delivery 170hp Motor Grader PY165C for Africa Road Construction
- 200 Unit / Units per Month
- Shanghai China
- T/T Credit Card
You May Like
-
China Motor Grader PY180C Road Grader with Ripper and Blade for Sale
-
Heavy Motor Grader 17ton Luto ng Road Grader Brand New PY220C 158kW Engine with Ripper
-
Lut ong PY130C 130HP Motor Grader
-
China Liu gong SEM919 190HP Small Motor Grader Good Price SEM919
-
High Performance SEM Motor Grader SEM921 Motor Grader
-
180HP Motor Grader X GMA XG3165C Road Machine for Sale
Product Details
| Brand Name | Newinbdu | Place of Origin | Jiangxi, China | |
| Certification | ISO, CE | |||
| Weight | 15500kg | Dimension(L*W*H) | 8900*2625*3420 | |
| Condition | New | Reverse Speed(km/h) | 23 | |
| Forward Speed(km/h) | 33 |
Product Description
Motor Grader Top Supplier Fast Delivery 170hp Motor Grader PY165C for Africa Road Construction
1.Energy-saving and noise-reducing: adopt low-speed engine transmission line, low specific fuel consumption of rated point, energy saving and environmental protection; low-speed ratio configuration of transmission system, average fuel consumption reduced by about 8%
2.Strong Power: Adopting Sichai High-efficiency State III Variable Power Engine
3.With load rotation: to improve the hydraulic system pressure, blade rotary force greatly improved, high-frequency quenching gear ring, wear resistance and life expectancy, to achieve load rotation.
4.Efficient operation: The displacement of the hydraulic pump and the hydraulic motor is increased, the speed of the cylinder is increased by 20%, and the operating efficiency leads the industry.
Basic specification | |
Engine model | 6BT5.9 |
Rated power/speed | 100/2200kw/rpm |
Dimension(L*W*H) | 8015×2380×3050mm |
Operating weight(Standard) | 11200kg |
Performance specification | |
Travelling speed ,forward | 5,8,13,20,30,42km/h |
Travelling speed ,reverse | 5,13,30km/h |
Tractive force(f=0.75) | 61.3KN |
Max. grade ability | 30% |
Tire inflation pressure | 300kPa |
Working hydraulic pressure | 16MPa |
Transmission pressure | 1.3~1.8MPa |
Operating specification | |
Max. steering angle of front wheels | ±49° |
Max. lean angle of front wheels | ±17° |
Max. oscillation angle of front axle | ±15° |
Max. oscillation angle of balance box | 16 |
Frame articulation angle | ±27° |
Min. turning radius using articulation | 6.6m |
Blade | |
Maximum lift above ground | 410mm |
Maximum depth of cutting | 515mm |
Maximum blade position angle | 90° |
Blade cutting angle | 54°-90° |
Circle reversing rotation | 360° |
Moldboard width X height | 3710×610mm |
