215HP China motor grader GR215 grader motor for sale

FOB Price

USD $78,000 - $78,000 / Unit

1 Unit(Min.Order)

Port SHANGHAI
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Certification	ISO CE
Dimension(LWH)	897026253470
Condition	New	Reverse Speed(km/h)	23
Forward Speed(km/h)	38

Product Description

215HP China motor grader GR215 grader motor for sale

Please Contact

Steven Zheng
Mobile / Whatsapp/ Wechat: +86-13063433538

Email: Steven at
Web:

Product Description

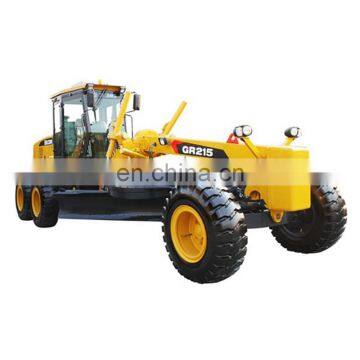

GR215 Motor Grader

GR series of motor grader are mainly used in the operation of road surface leveling, ditch digging, slope leveling, bulldozing, scarification and snow removing on the road, airport and farmland. The motor grader is the necessary construction machinery for defense construction, mine construction, urban and rural road construction and irrigation works and farmland improvement.

•New appearance.

•The adopted articulated frame assists the front wheel to steer, featuring small turning radius and flexibility.

hydraulic controlled brake power shift gearbox includes 6 Forward gears, and 3 Reverse gears.

•The adopted international matched hydraulic parts ensure the reliable operation.

• The blade movement is hydraulic controlled fully.

•The rear axle is three-way drive axle with NO-SPIN self -locking differential.

•The reasonable distribution of the adjustable operation panel, seat, lever and instrument guarantees the comfortable and convenient operation.

•The luxury and beautiful cab features wide visibility and good sealing.

•The machine can be equipped with front bulldozing plate, rear scarifier, front harrow and auto-leveling system.

Specifications:

Item	Specification	Unit
Engine model	SC7H180.1G3
Rated power/speed	153/2000 160/2000	kW/rpm
Dimension(LxWxH)	8970×2625×3470	mm
Total weight(Standard)	16500	kg
Forward speed	5,8,11,19,23,38	km/h
Reverse speed	5,11,23	km/h
Tractive force(f=0.75)	82	KN
Max. gradeability	25	%
Tire inflation pressure	260	kPa
Working hydraulic pressure	20	MPa
Transmission pressure	1.3~1.8	MPa
Max. steering angle of front wheels	±50°
Max. lean angle of front wheels	±17°
Max. oscillation angle of front axle	±15°
Max. oscillation angle of balance box	front15°,reverse15°
Frame articulation angle	±27°
Min. turning radius using articulation	7.3	m
Max. lift height	450	m
Max. cutting depth	500	m
Max. blade position angle	90°
Blade cutting angle	28°-70°
Circle reversing rotation	360°
Moldboard width X height	4270*610	mm
