Home > Products > CNC Router > wood working centre-MDF CNC router MD1325C

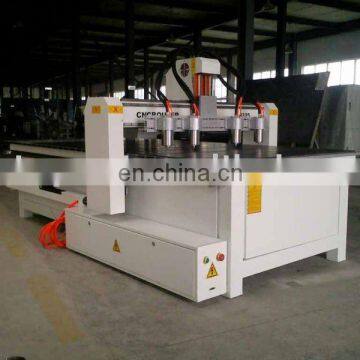

wood working centre-MDF CNC router MD1325C
USD $5.00 - $15.00
/ Set
1 Set(Min.Order)
- 200 Set / Sets per Month
- Qingdao
- T/T Credit Card
You May Like
-
Professional cnc wood furniture machine HC 1325
-
Special design cnc wood working machine MD1325
-
Best small woodworking cnc roter machine MD 6090
-
HSD Spindle cnc wood engraving machine,cnc router ,cnc wood carving Machine MD-1325
-
Auto tool changer woodworking cnc router with rotary axis MD1325
-
high speed cnc router, China Cheap cnc router machine MD1325
Product Details
| Brand Name | MINGMEI | Place of Origin | Shandong, China | |
| Model Number | MD1325 | Condition | New | |
| CNC or Not | CNC |
wooden cases
Product Description
wood working centre-MDF CNC router MD1325C
1.Main features of the machine
- MD1325C-ENGRAVING MACHINE ,is an economic processing centre,with a row of the knife .All are equipped with a leading international components.
- With Italian air-cooled high power electric spindle,and drive system use Janpanese servo motor.
- For the international leading suefac with high-intensity,vacuum absorption table ,high electric plank material for adsorption,and strong adsorption of different materials.
- Intelligent protection of the surface ; to prevent misuse,or software errors which may cause damage to the surface. Intelligent processing with cross-border protection to prevent the design of the layout over the processing area causing collision because of mechanical phenomenon.
- The new generation control system,auto-complete multilevel 3D processing ,carving or cutting.Meanwhile ,offiine operation can be realized.
- General principles of tempering aging treatment of welding structure ,solid without deformation. Ganty mobile ,fixed work platform,materials on the table canbe arbitrary processed.
2.Technical-parameters
| Index | Index | Parameter | Optional |
| Travel | X Travel | 1300mm | <2500mm |
| Y Travel | 2500mm | <5500mm | |
| Z Travel | 200mm | <450mm | |
| table size | 14400*2915mm | ||
| Precision | working precision | 0.04mm | |
| Repostion | 0.05mm | ||
| Structure | Table structure | vacuum adsorption | Strip adsorption |
| X.Y.Z structure | X.Ygear Z screw Rod | ||
| speed | Max air line speed | 45000mm/min | |
| Max working speed | 2o000mm/min | ||
| spindle | spindle power | 3.8kw | |
| running speed | 0-18000r/min | ||
| Mede of Operation | Stepper | ||
| Working vottage | AC 380V/50HZ | ||
| Dictate of operation | G code | ||
| Opera .ting system | DSP | Bao meta system | |
| Net weight | 1600kg | ||
| Gross weight | 1900kg | ||
