Foshan Machinery CNC Metal Circular Saw Machine
- Foshan Guangzhou Shenzhen Shanghai Qingdao Port in China
- T/T Credit Card
You May Like
Product Details
| Brand Name | CHITTAK | Place of Origin | Guangdong, China | |
| Model Number | CTK-76CNC-SD | Certification | CE ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 Year | |
| Weight | 1200kg | Dimension(L*W*H) | 7500*2200*1550mm | |
| Voltage | 380V 50HZ | Rated Power | 2.4/3KW | |
| Condition | New |
Product Description

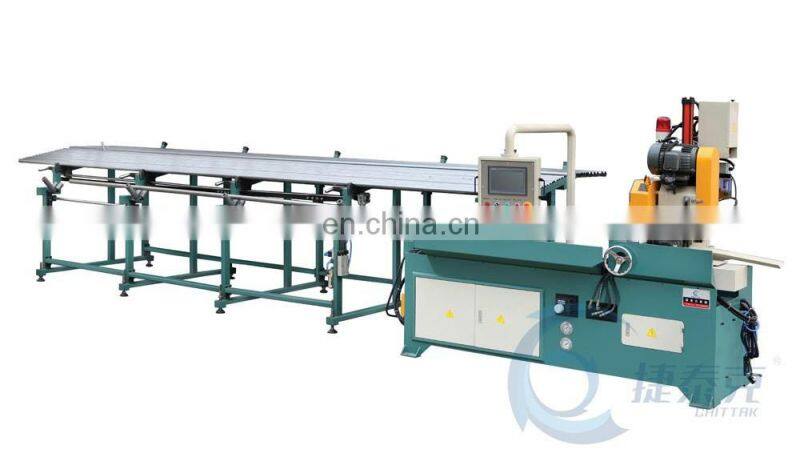

Foshan Machinery CNC Metal Circular Saw Machine CTK-76CNC-SD
Main Features:
- This machine adopts man-machine interface control and touch screen with easy operation.
- Servo control leftover material processing equipment, which saves manpower, and improves production efficency.
- It can set the feeding length of head material according to the order during cutting.
- Cutter up and down move adopts slide rail system.This linear guide rail is by precision grinding & laborscrapping. Lubricating oil can permeate interface directly. If any wear, you can adjust the strip. It can maintain the stability of the saw blade, no gap, cutting tolerance guaranteed, low maintenance cost.
- Servo feed drive ensures smoothness and stability of cutting, avoiding vibration and noise.
- Servo motor control cutter to have three different feeding according to the diameter or thickness of the material, improving cutting force and cutting surface finish. Compared with pneumatic or hydraulic cutter, servo controled cutting knife has 1-4 times efficiency.
- High efficiency reducing mechanism is used for eliminating backlash rebound and the heavy cutting saw balde enjoys longer life time.
- The high efficiency reducing mechanism is used for eliminating backlash rebound and the heavy cutting saw blade enjoys longer service life.
- Automatic circulation of coolant ensures smooth cut surface and longer service life of saw blade.
- It adopts PLC controller with simple circuit and easy maintenance.
- Automatic alarming system is convenient for trouble shooting.
- Firm charging structure, accurate action,floating type load support without damaging the work surface.
- AC servo motor control roll screw slide system, stable and precise feeding. Max. feeding speed can reach 500m/s.
- 5 different length can be set on a single cutting piece, reducing leftover wast. .
- It is quick and easy to adjust circular tube/solide bar by hand wheel.
Specifications:
Model | CTK-76CNC-SD | |
mortor | 1. AC servo motor(leftover material handling) | 0.75kw |
| 2. AC feeding servo motor | 1.5KW | |
| 3. Spindle drive motor | 2.4/3kw | |
| 4. Cutting fluid motor | 150w | |
| Feeding drive mode | AC servo motor+precision ball screw | |
| Tail drive mode | AC servo motor+precision ball screw | |
| Spindle speed | 52-104r/min | |
Saw Blade Size | Diameter (mm) | HSS250-325 special:350 |
Pin hole(mm) | 2×11×PCD63 | |
| Raw material length(mm) | standard:6000 or cutomized | |
| Feed length(mm) | standard:6-1000 or customized | |
| Material head length(mm) | 10-20 | |
| Material tail lenght(mm) | 20-30 | |
Working Barometric pressure(Kg/cm2) | 5-8 | |
Machine Size(L*W*H)(mm) | 7500*2200*1550 | |
Machine Net Weight (Kg) | 1200 | |


1) Provide the technical paper materials for installment, maintenance, operation and so on;
2) Provide equipment's key element bill of materials;
3) Provide the technical training for the equipment operation attendants;
4) Provide the installment instruction and the debugging work of the equipment;
5) Provide the perpetual paid service after the quality guarantee period.
Chittak Machinery Co., Ltd. is located in Foshan city, which is one of the most well-known manufacturing bases in China.
The company's technology team is composed of a group of engineers who have earlier engaged in the pipe cutting machine research and development. Has been accumulating more than 10 years of manufacturing experience, and more than 50 capable technicians and skilled workers, now the company possesses perfect quality control system and modern management tools. We are able to present best quality product for the best prices with ensuring first-class after-sale service to all the customers from home and abroad.
Our main products include: pipe cutting machine, profile cutting machine, aluminium profile cutting machine, chamfering machine, metal saw blade sharpening machine, and circular metal saw blade, etc. Our high quality products and attentive service help to win a large number of loyal customers home and abroad. The equipments are sold to the domestic market, Russian, Ukraine, Japan, Thailand, Vietnam, Indonesia, India, Bangladesh, Turkey, Iran, Brazil, South Africa, Columbia, Argentina, Middle East countries, etc, serving more than 30 countries and regions.
Our mission is to serve the needs of our customers to the best by providing our high quality China-made machinery and best possible service and to exceed their expectations. we will strive to strengthen our capabilities and continue to innovate our machines to fulfill the present and future needs of our worldwide customers.We are dedicated to a long-term partnership with our customers.
Our Exhibitions & Customers:

Question 1: What is the machine?
Answer: it is steel tube metal cutting machine, or semi automatic cut off saw,
or high speed metal circular saw cutting machine, or hydraulic drive cutting machine etc
Question 2: What is its function?
Answer: It is a metal solid bar or rod, hollow tube or pipe, profile cutting machine,
it is used for cutting steel, stainless, copper, brass bars.
Question 3: What is its cutting methods?
Answer: it uses TCT or HSS cold circular saw blade to cut it, not uses band saw
blade, laser, plasma or other ways.
Question 4: What fields can it be applied to?
Answer: car, car parts, boats, forging, furniture, moulds, metal processing, hardware parts,
large machines, sports products, boats, construction products, etc
