Fast Speed Automatic Metal Round Tube Hydraulic Cutting Machine 355 Model
- Foshan Guangzhou Shenzhen Port in China
- T/T Credit Card
You May Like
-
Semi Automatic Pneumatic Steel Tube Cutting Machine
-
Servo-Feeding Aluminum Profile Cutting Machine Production Line Direct Manufacturer in China
-
High Speed Aluminum Round Pipe/ Tube/ Window Profile Cutting Machine in Stock for Hot Sale
-
Chittak Automatic Pipe Cutting Machine With Oil Hydraulic Power
-
Cheap Chinese CNC Stainless Steel Pipe Cutting Machine
-
Professional Stainless Steel Furniture Orbital Pipe Cutting Machine
Product Details
| Brand Name | CHITTAK | Place of Origin | Guangdong, China | |
| Model Number | CTK-355AV-CNC | Certification | ISO9001 | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 Year | |
| Weight | 1500kg | Dimension(L*W*H) | 2450*1050*1900mm | |
| Voltage | 380V 50HZ | Rated Power | 7.5kw | |
| Condition | New |
Product Description

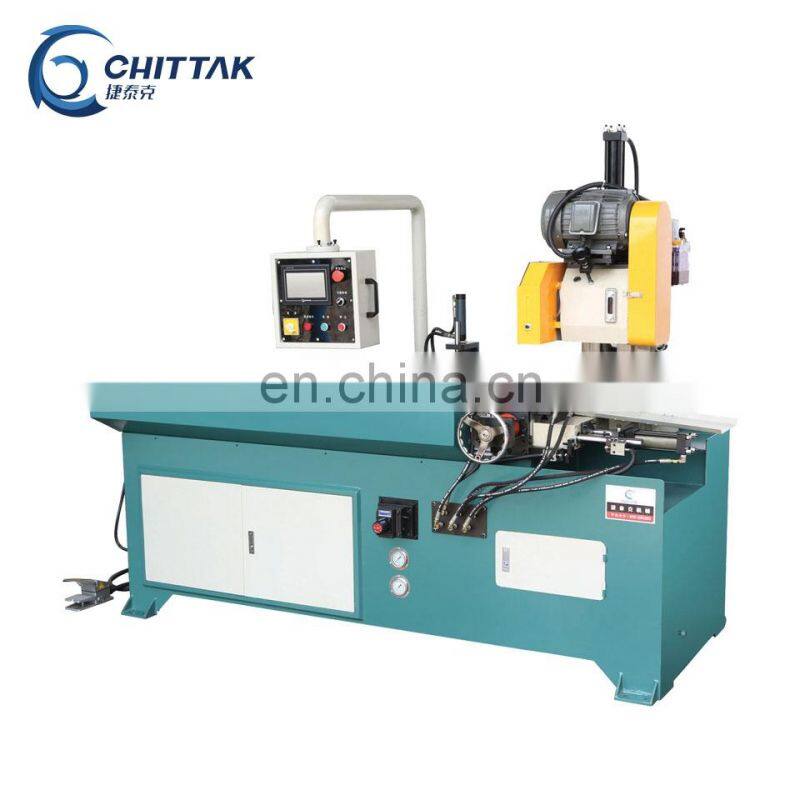

Fast Speed Automatic Metal Round Tube Hydraulic Cutting Machine 355 model
CTK-355AV-CNC
Main Features:
- This machine adopts man-machine interface control and touch screen with easy operation.
- Easy to learn and understand, extremely powerful functions
- Digital display of length
- It adopts frequency conversion technique for revolution adjustment of machine according to different materials
- Advance and retreat cutter along vertical slideway for rise and drop, stable sawing and high precision.
- The high efficiency reducing mechanism is used for eliminating backlash rebound and the heavy cutting saw blade enjoys longer service life
- Firm charging structure, accurate action,floating type load support without damaging the work surface
- The specially designed clamp features strong clamping, firmness, reliability and safety.
- Automatic oil feed and lubrication for slideway enjoys stable running and longer service life.
- Automatic circulation of coolant ensures smooth cut surface and longer service life for saw blade.
- It adopts PLC controller with simple circuit and easy maintenance.
- The saw chips are concentrated for disposal, which is easy and clean.
Standard Components:
1.Basic machine station;
2.Feeding Length digital display system
3.Automatic controlled electric system
4.Oil pressure system
5.Maintenance kit
Specifications:
Model | HD-355AV-CNC | HD-375AV-CNC | HD-400AV-CNC | |
Main Drive Motor | 2.0/2.8KW 380V 50HZ | 2/2.8KW 380V 50HZ | 6.5KW 380V 50HZ | |
Blade Speed(RPM) | 52/104(A series)Or 26/52(B series) | 62/27 or 48/19 |
| |
Saw Blade Size | Diameter (mm) | HSS250-350 | HSS250-370 | HSS250-400 |
Aperture (mm) | 32 | 32 | 32 | |
Pin hole(mm) | 2×11×PCD63 | 2×11×PCD63 | 2×11×PCD63 | |
Feeding Length(mm) | standard:6-640mm×3 times | standard:6-640mm×3 times | standard:6-640mm×3 times | |
Air Pressure(Kg/cm2) | 25-35 | 25-35 | 25-35 | |
Machine Size(L*W*H)(mm) | 2400*1100*1750 | 2400*1100*1750 | 2400*1100*1750 | |
Machine Net Weight (Kg) | 1100(A series ) | 1200 | 1200 | |
Cutting Capacity ( take mild steel as reference)
Model | HD-355AV-CNC | HD-375AV-CNC | HD-400AV-CNC |
Head Swivel | 90 | 90 | 90 |
Round tube | 110 | 110 | 125 |
Square tube | 100 X 100 | 110 X 110 | 125 X 125 |
Rectangle tube | 160 X 80 | 160 X 80 | 160 X 80 |
Solid Bar | 50 | 75 | 100 |
Square Bar | 38*38 | 65*65 | 100*100 |
