Light Pole Anchors Street Light Foundation

Bracket:

Weldment manufatured from 1/4”,3/8” and 1/2” ASTM A36 steel Plate

Cap Plate:

1”x5”x9.0” ASTM A572 Grade 50 with confining ring welded to one side.

Bracket Hardware:

3/4”X16” long all thread rod

Grade B7, tensile strength=125ksi (min)

Electrozinc plated per ASTM b633.

Pier Tube:

2.875” x0.155” x36”long triple coated in-line galvanized ASTM A500 Grade C

Yield strength=50ksi(min)

Tensile strength=55ksi(min)

Pier Tube Coupler:

2.25”x0.18”x6” long

Pier Starter Tube:

Pier tube section with 3.376” tricition reduction collar

pressed around leading end

External Sleeve:

3.5”x0.216”x30” or 48” long with welded collar or turned fare at one end

ASTM A500 Grade B or C

Yield strength=50ksi(min)

Tensile strength=62ksi(min)

Helical piles, also known as anchors, piers or screw piles, are steel deep foundation solutions used to secure new or repair existing foundations. Consisting of a extension shaft with one or more helix-shaped bearing plates, commonly referred to as blades or flights, welded to the lead section.

Extension shafts, with or without additional helix blades, are used to extend the pile to competent load-bearing soils and to achieve design depth and capacity.

Brackets are used at the tops of the piles for attachment to structures, either for new construction or retrofit applications.

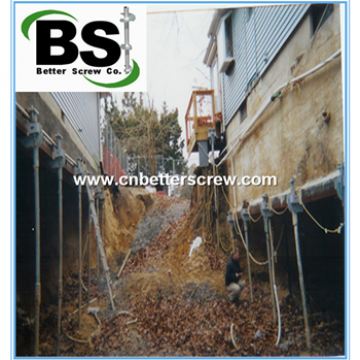

Helical piles have been used all over the world to secure residential and commercial buildings.Helical piles are installed at intervals between the footing forms and tied into the rebar grid work prior to pouring concrete. The piles are extended to depths attaining the installing torque that correlates with the required load bearing capacity.

1. Packaging: Usually we shipping the products in 20ft’ container or according to your demand.
2. Shipping: 5-6 weeks after confirming your order.

1. Professional staffs reply your inquiry in 24 working hours.

2. Professional factory : We are the first class helical screws products supplier for Residential,       Commercial and Industrial Projects as well as Underpinning and Anchoring.

3. Good quality, competitive pricing and timely service.

4. OEM and ODM service are available here.

5. Sample: Available.

1. Are your products the same with the ones in our local market?
Yes, our welding performed to America Standard AWS D1.1&EURO Standard EB287 and we manufactured millions of helical piers and a series of accessories for North American/Europen/Australian etc market during the past 10 years and very familiar with every detail of these products. We believe that there is no company in China is more professional than us on this product.

2. What is the minimum order quantity?

The MOQ for helical piers is 10 tons for per specification. You can mix different sizes of posts to make up a full container. If you want to know the MOQ for other products, please feel free to contact us.

3. How long is your lead time?

Usually our production time for one container goods is about 30-40 days, and the shipping time

depends on your place of delivery.

4. What is your payment term?

Usually our payment term is T/T. We can receive the payment 1-3 days after you made payment.

5. Is it complicated to purchase your products if we have never imported?
The whole process is very simple. We can take charge of the whole process including producing inChina and shipping the products directly to your company. Our shipping agent in USA/Canada can deal with the customs clearance and inland transportation affairs for you. You just need to stay in your office to check our products.
