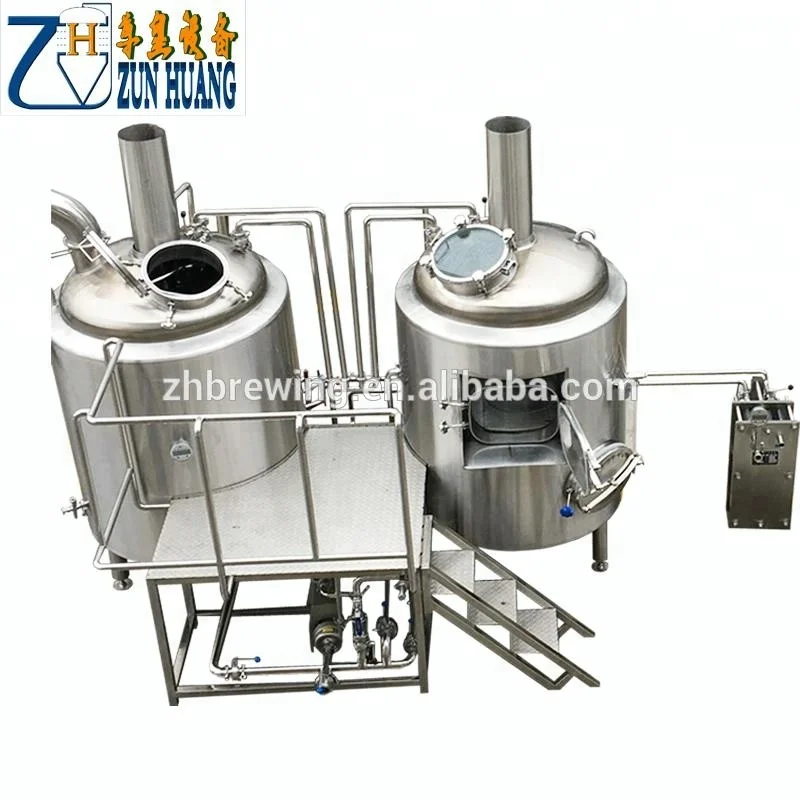

500L Beer Brewing Equipment Beer Making Machine Beer Brewhouse

Product features:

1. Appearance clean and generous: The tank is polished by mirror, and the equipment is bright;

2. Good insulation effect: The equipment is divided into two kinds of heat insulation and cold insulation, which is the best to ensure the temperature of the beer brewing process;

3. Visualization operation: the equipment is controlled by PLC, and the fermentation tank is equipped with a glass tube level gauge, which is convenient for visual operation;

4. Low energy consumption: environmental protection, energy saving, low power consumption, saving energy consumption of about 20%;

Product picture:

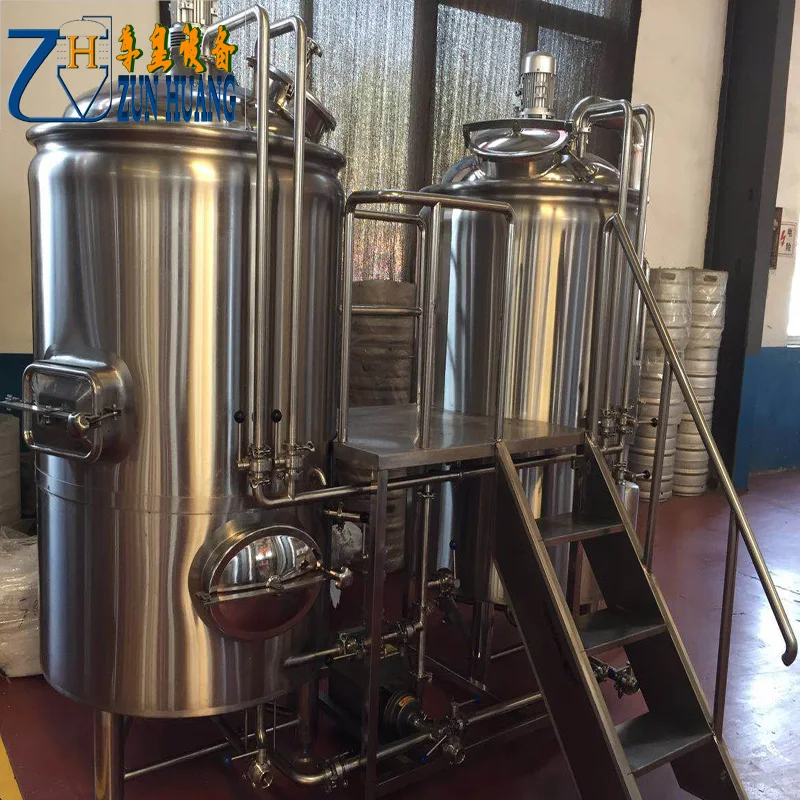

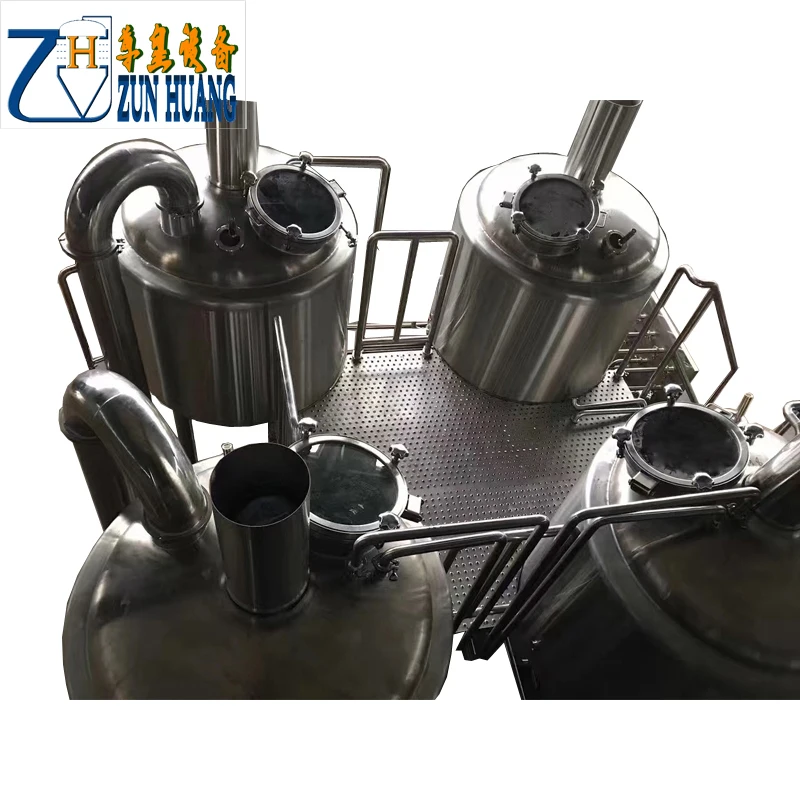

 Mash system

System is mainly composed by mash/lauter tun, filter tank, boiling pot, whirlpool tank, hops adding equipment etc.

 The main body of mash tun, mash copper system all using international standards, high-quality 304 stainless steel. The manufacture is using of modern automatic plasma & laser cutting and the protection of pure argon gas welding and other technology.The full mirror polished technology for the inside of the tanks which expose to materials such as wheat mash; external matte polished to ensure customers with high quality and low price, beautiful mash system.

Fermentation system:

1. The inner of the fermentation tank are adopted 304 stainless steel. Use polyurethane to keep warm. The outside scarfskin is according to the customer’s requirement.
You can choose stainless steel polishing, carbon steel, spray finishing and so on.

2.Adopted the international standard of fermentation technology, diverse methods to control the temperature. The inner surface of the tank is mirror-polished. The standard is≤0.8um ≤0.6um ≤0.2um. Completely meet the demand of PLC and sterilize system.

3.The cooling jacket can achieve all countries’ standard, supply Miller, arch, corrugated plate and so on. Meet all kinds of demand of cooling technology of coolant and
pressure.

Cooling system:

Cooling system mainly includes Ice water tank, glycol water tank, plate heat exchanger, refrigeration unit, cooling pipelines and vales and control system. Refrigeration unit is the core part, with liquid nitrogen refrigeration compressor, respectively cooling fermentation tanks and bright beer tanks use the tap water.

CIP Cleaning system:

Related product ↓↓↓↓↓↓↓

Technical Parameters:

1. Manhole, stainless steel top manhole or glass sight manhole

2.Temperature measurement method: PT100 temperature probe.

3.Cleaning method: Fixed rotate cleaning ball and sprage coil on top.

4.Mechinical agitation& Raker: at the top stirring. High power, low speed to ensure complete worse layer.

5.Milled sieve plate,0.7mm distance with discharge hole.

6.Whirlpool tangent pumped at 1/3 height of the tank and glass level.

7.Stainless steel legs, with screw assembly to adjust leg height

 Shandong Zunhuang Brewing Equipment Co., Ltd is the domestic integrated industrial and trade comprehensive enterprise dedicated in research, manufacturer, development, sales and after-sale service, until now have the 16 years produce experience, company focuses on beer system project that refer to fruit wine equipment, white spirit and alcohol equipment etc, corollary equipment, our company purpose: “Quality first, customer highest”, use the short period provide direct and comprehensive service, and improve the products’ valve and market competitive.

 Internationally recognized:

 Zunhuang technology has been internationally recognized, and achieved ISO9001: 2008 international quality system certification, import and export EU CE Certification; accepted ASME, CE, AS1210 third-party inspection, with import and export rights, the company's products have been in over 30 countries worldwide.

1. Ocean shipment,railway shipment,express delivery.

2. No matter flat pack to save shipping cost,or fill with your merchandise into allassembled displays to ship together,all is up to you.

3. And we have our own department to arange the shipments.we ship worldwide dierctly by see,railway or express.we will provide all documents you need to import.

4. We packed the goods to meet the transport distance, shock, rust and anti-handling requirements damaged before shipping, to ensure the safe transport of goods to reach the buyer designated location before it is shipped.

 Ten provide to service you:

1. After-sale Service for the whole life.

2. 24h service for you, solve your urgent problem first time.

3. 3 years warranty for the main products.

4. Free design for your brewery layout for 2D or 3D.

5. Spare parts replacement and repair service provided.

6. Engineer going abroad for installation, debugging and technical training if you need.

7. Provide the Form E, CO, etc..others necessary reduce import Tax files for you.

8. To provide update information about brewing equipment technology once we test.

9. Help you send the goods if you have others company order, then send to you together.

10. Door to Door service, if you need any brewing parts.

1.Q: Are you a manufacturer?
A: We are the manufacturer of beer brewing equipment for 16 years.

2.Q:Can I have the customized products for myself?
A:Yes,we can design and manufacture as client's requirements.

3.Q: Can you guarantee your quality?
A: All of our products is applied with CE certificate and highly in accordance with GMP. Equipment is made of high quality of SUS304/316. Inspect certificate is available.

4.Q:How about the after sales service?
A:For our after-sale service, we promise all life of technical support to new and old customers.
All of our products is available with 10 years warranty even for spare parts within quality warranty period, our service is free of charge.
