600V High Flexible Copper Conductor EPR Insulation CPE Sheath DLO Rubber Cable

600V high flexible copper conductor EPR insulation CPE sheath DLO rubber cable

Diesel Locomotive Cable which is commonly known as DLO Cable is a flexible (tinned copper Class I, 24 AWG strands) rubber insulated (EPR—Ethylene propylene rubber) and rubber jacketed (CPE-chlorinated polyethylene) 2000 volt UL rated cable originally developed for use in the wiring of Diesel Locomotives. Diesel Locomotives use diesel engines to drive generators to power electric motors that turn the wheels, DLO cable is used to transmit the power from the generator to the electric drive motor. It is available from 14 AWG to 1111 KCMIL. It is also used in many other applications where a flexible, tough cable is needed due to tight bending radiuses.

DLO Cable in sizes 1/0 and larger is generally tray cable rated allowing for use in industrial facilities.

DLO Cable may be an allowable substitute for welding cable that is often miss-used when a flexible cable is needed (welding cable is generally only allowed on the secondary circuits of an electric welder—ie. welding leads).

DLO can be thought of as a very heavy duty welding cable due to the double jacket (or insulation and jacket) construction and will at times be used as welding cable especially for the high amperage systems.

Standard:

UL Listed
 Accepted for listing by MSHA
RoHS Compliant

Constructre:

• Conductor:
10 AWG through 777.7 MCM stranded tinned annealed copper
• Insulation:
Premium-grade 90°C EP
• Jacket:
 CPE, black

We are one of China top rank cable&wire manufacturer.Our products meet standards of GB,IEC,DIN,ASTM, JIS, NF, AS/NZS,CSA,GOST and so on. We also have obtained ISO9001,ISO14001,OHSAS18001,UL,CE,KEMA, TUV,SABS,PBS,Bureau Veritas,Lloyd,GL,NK,KR certifications.
We have obtained UL certifications for TC cable, DLO cable,RHH/RHW/RHW-2,XHHW/XHHW-2/SIS, THHN,SER/SEU/USE, MV-90/MV-105,MC cable,AC cable,TECK 90,SOOW,Welding cable,Mining cable,type DG,PV cable,Shipboard cable and so on.

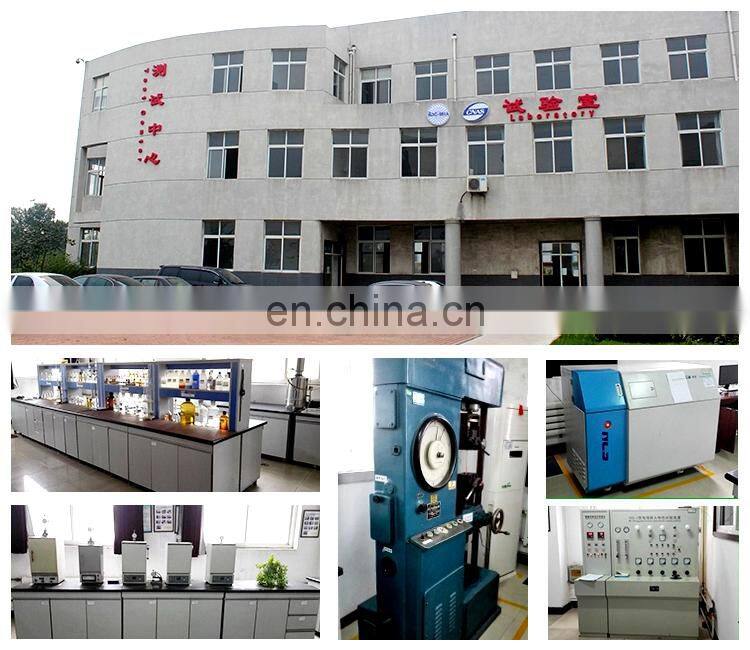

CNAS accredited national level laboratory.

1.25 years production experience and 16 years export experience .
2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3. OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback.  Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7.Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.

1.When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price,please call us or tell us in your e-mail so that we will regard your inquiry priority.

2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.

3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express  account or prepay us if you do not have an account.

4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
