Medium Voltage 2AWG 4 AWG Esp Power Cable Submersible Oil Pump Cable Flat Submersible Oil Pump Cable
- Tianjin Qingdao or other main port
- T/T Credit Card
You May Like
-
China Manufacturer ESP Flat Cable With Polyimide F46 Insulation Submersible Oil Pump Cable
-
Best Price QYPDY10 NBR Sheathed Cable Steel Tape Armored 3 Phase Submersible Oil Pump for Sale
-
Esp Motor Power Cable Submersible Oil Pump Cable
-
China Supplier Oilfield 3.6/6KV 3 Core 5 AWG Polypropylene Insulated NBR Jacket and Galvanized Steel Tape Armoured Esp Cable
-
China Oilfield 3.6/6kv 3 Core 1 AWG EPR Insulated NBR Jacket and Galvanized Steel Tape Armoured Cable Copper Armoured Cable
-
2015 New Products QYEEY Round ESP Power Electric Cable Three Phase
Product Details
| Brand Name | RNEDA | Place of Origin | Hebei, China | |
| Model Number | QYPDB10,QYPDF10,QYEQ10,QYAEQ10,QYPDY10,QYEEY10,QYEEY10,QYAEEY10 | Type | Medium Voltage | |
| Application | Industrial | |||
| Conductor Material | Copper |
Product Description

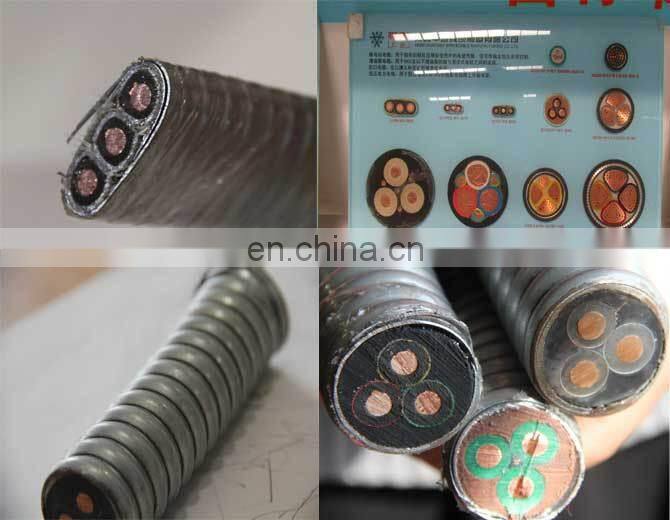

Medium voltage 2AWG 4 AWG esp power cable submersible oil pump cable flat submersible oil pump cable
Implemented Standard: Enterprise standard
Product Introduction
The product manufactured by us has the characteristics of advanced technology, reliable quality.The main manufacturing equipment is included the ROYLE90 plastic extrude, the rubber continuous vulcanizing process, the interlocked armoring machine made by CEECO, Canada, the continuous sintering process imported from GRILLER, Austria, the Nokia cross linked cable process, the advanced continuous annealing process and tinned process, etc. Now, the cable and coil end lead wire for submersible oil pump or pump unit can be produced, with different types and specifications, the crosssection of conductor is 42mm2 and below. The well temperature is from 50℃ to 180℃, the max. continuous working temperature of conductor is 204℃. The insulation material that can be used is as below: PP, EPR, polyimideF46, fluoroscopic, XLPE, etc. The material of inner jacket includes NBR, compound of the neoprene and PVC, EPR, fluoroplastics, lea, etc. The outer sheath material is as the galvanized steel tape, stainless steel tape, etc. All kinds of cables for submersible oil pump can be developed according to the customer’s requirements.

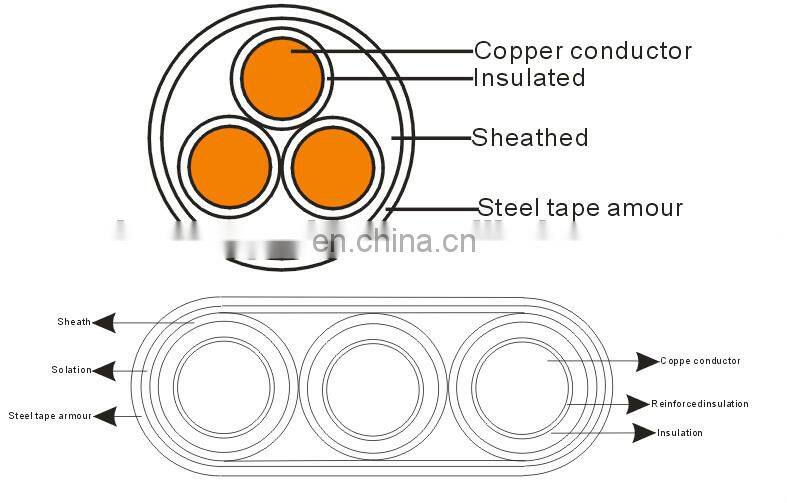

Type and Name
Cable type | Description | Max working temperature℃ | Product range (cross section) mm2 |
QYPN | PP insulated and NBR sheathed, galvanized steel tape interlocked armoring, cable for submersible oil pump | 96 | 10,13,16,20,33,42 |
QYPNY | PP insulated and NBR sheathed, galvanized steel tape interlocked armoring, round cable for submersible oil pump | 96 | 10,13,16,20,33,42 |
QYEN | EPR insulated and NBR sheathed, galvanized steel tape interlocked armoring, cable for submersible oil pump | 140 | 10,13,16,20,33,42 |
QYENY | EPR insulated and NBR sheathed, galvanized steel tape interlocked armoring, round cable for submersible oil pump | 140 | 10,13,16,20,33,42 |
QYEE | EPR insulated and sheathed, galvanized steel tape interlocked armoring, cable for submersible oil pump | 175 | 10,13,16,20,33,42 |
QYEEY | EPR insulated and sheathed, galvanized steel tape interlocked armoring, round cable for submersible oil pump | 175 | 10,13,16,20,33,42 |
QYEQ | EPR insulated and lead sheathed, galvanized steel tape interlocked armoring, cable for submersible oil pump | 204 | 10,13,16,20,33,42 |
QYYEQ | Polyimide-F46 composite film and EPR insulated, lead sheathed, galvanized steel tape interlocked armoring, cable for submersible oil pump | 232 | 10,13,16,20,33,42 |
QYYEEY | Polyimide-F46 composite film and EPR insulated, EPR sheathed, galvanized steel tape interlocked armoring, round cable for submersible oil pump | 204 | 10,13,16,20,33,42 |
QYJEQ | Polyimide-F46 composite film and EPR insulated, lead sheathed, galvanized steel tape interlocked armoring, lead wire for submersible oil pump | 200 | 10,13,16,20,33 |
Test voltage of the finished product before leaving the factory
Rated voltage (KV) | Test voltage(KV) |
1.8/3 | DC 30/5min or AC 10KV/1min,no-breakdown |
3.6/6 | DC 35/5min or AC 13KV/1min,no-breakdown |

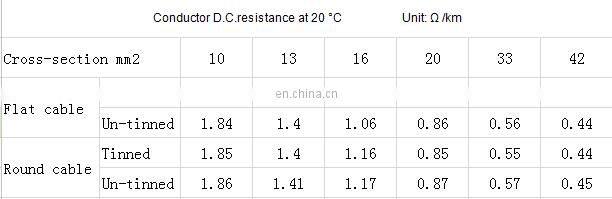

Conversion date of the conductor's cross-section
| Cross-section(Approximation).mm2 | 10 | 13 | 16 | 20 | 33 | 42 |
| AWG# | 7 | 6 | 5 | 4 | 2 | 1 |
| Diameter mm | 3.655 | 4.115 | 4.621 | 5.189 | 6.544 | 7.348 |
| Cross-section(Actual.)mm2 | 10.55 | 13.3 | 16.77 | 21.15 | 33.63 | 42.41 |
Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects.
Products: XLPE insulating power cables with voltage up to 35kV, PVC insulated power cables, mining cable, general rubber sheathed flexible cable, Submersible oil pump cable, locomotive-vehicle cables, elevator cable,shipboard cable, nuclear station cables, pre-fabricated branch cables, ABC cables, control cables, special cables, the motor winding connecting conductors, aluminum stranded conductor (AAC) and aluminum stranded steel-core reinforced conductor (ACSR) so on.
We are JV with Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables.submersible oil pump cables, .)and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria, South Africa,Congo, Middle East and Southeast Asia countries and so on.
We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.
1. 22 years production experience and 13 years export experience .
2high-end Machinery and equipment for high quality cable .
3.manufacture various of cable :power cable,control cable,abc cable,submersible oil pump cable,rubber cable,elevator cable,electric cable...
4. products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL,DNV:
system ceryification:ISO9001,ISO14001,OHSAS18001
5.our product sells all over the world and has the good reputation.
fessional teamwork service for you actively.
7.quick solution and long time online time waiting for your inquiry.
8.rapid delivery and feedback.
9.we can do that you except.
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, pleasecall us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freightcharge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account or prepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
(5)What cables does Hua Tong manufature?XLPE insulating power cables with voltage up to 35kV, PVC insulated power cables, mining cable, general rubber sheathed flexible cable, Submersible oil pump cable, locomotive vehicle cables, elevator cable,shipboard cable, nuclear station cables, prefabricated branch cables, ABC cables, control cables, special cables, the motor winding connecting conductors, aluminum stranded conductor (AAC) and aluminum stranded steel-core reinforced conductor (ACSR) so on.
(6). Which payment terms do you accept?
A: The payment term varies with different price level and total value of every contract.
The following are most common terms:
a.100% TT advance for small amount orders.
b.30% T/T down payment, balance payment negotiable accordingly.
