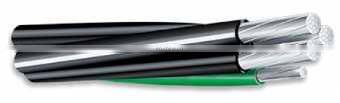

UL854 SEU Cable With XHHW-2 Inners 600 Voltage Copper Conductor XLPE Insulation Sunlight Resistance PVC Jacket Wire
- shanghai tianjin qingdao
- T/T Credit Card
You May Like
-
UL Listed TR-XLPE Insulated 15kv 133% URD Power Cable
-
260 MIL TR-XLPE Insulated 25KV URD Cable 100% Insulation Level
-
URD Cable 175 MIL EPR Insulated 15KV 100% Insulation Level
-
345 MIL EPR Insulated 35KV URD Cable 100% Insulation Level
-
UL Listed TR-XLPE/EPR Insulated 15KV 100% URD Power Cable, URD Cable
-
600V Duplex Conductor URD Cable-Aluminum Conductor
Product Details
| Brand Name | RNEDA | Place of Origin | Hebei, China | |
| Model Number | SE-R, SE-U, USE-2, USE | |||
| Conductor Material | Copper | Conductor Type | Stranded |
Product Description
Top ten cable manufacturer in China
Largest cable manufacturer in north China
Annual export volume exceed 200million USD
With UL,TUV,KEMA,CE,BV,PSB,SABS,LLOYD'S,GL,NK,KR,ABS Products certifications
With TUV type testing report
Wide products range
ISO9001,ISO18001,OHSAS18001 system certifications
CNAS approval laboratory
UL854 SEU Cable with XHHW-2 Inners 600 Voltage Copper Conductor XLPE Insulation Sunlight Resistance PVC Jacket Wire ：
Applications:

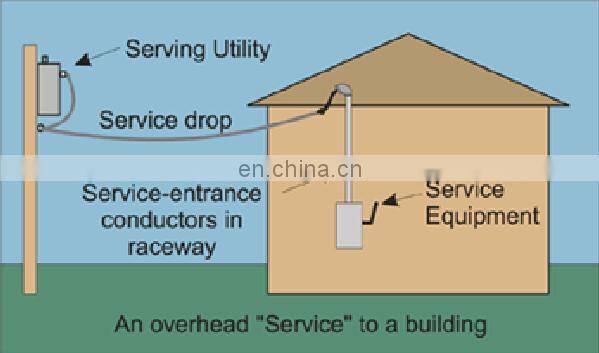

HUATONG Aluminum Service Entrance Cable Type SE, with rated voltage 600V, is used to transmit power from the junction box to the meter base and from the meter base to the distribution cabinet
It may be used in all applications where Type SE cable is permitted.Type SE cable could be used in dry or wet environmet at the working temperature not exceed 90C.
Standard:
ASTM-B-800 and B-801
UL Standard 44 for XHHW-2
UL Standard 854 for SER/SRU
RoHS environmental conductive requirement
Product Charactors:
Conductor:AA-8030 aluminum alloy conductors
Insuation:Cross-linked polyethylene(XLPE) Insulation
Jacket: Sunlight resistant,moisture resistant and flame retardant
Temperature Range: Temperature of 90C in wet and dry locations
Environmental: Free of harmful heavy metals in compliance with ROHS
Voltage Rating:600Volt
Specification:
The AA-8000 aluminum alloy conductor is applied in Type SER/SEU cable. Its insulated core is complied to the requirment of Type XHHW-2 in UL44. Insulation material is cross-linked polyethylene(XLPE) with characteristics of abrasion resistance,moisture proof and heat resisting.Meanwhile the insulation has the flame retardant property,which can meet FT2 level combustion test requirment. The outside of cable core should be wrapped a fibrage tape,both of the insulation wire core and outer sheathed can meet the 720h sunlight resistance requirment.
SE-R
SE-U
USE/USE-2:
HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We are OEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.
We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC,DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.
1. 22 years production experience and 13 years export experience .
2.high-end Machinery and equipment for high quality cable .
3.manufacture various of cable :power cable,control cable,abc cable,submersible oil pump cable,rubber cable,elevator cable,electric cable...
4. products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL,DNV:
system ceryification:ISO9001,ISO14001,OHSAS18001
5.our product sells all over the world and has the good reputation.
fessional teamwork service for you actively.
7.quick solution and long time online time waiting for your inquiry.
8.rapid delivery and feedback.
9. Stock available, Free sample.
10.We can do that you expect.
(1)When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, pleasecall us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freightcharge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account or prepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
