Home > Products > UL CERTIFICATED PRODUCTS > XLPE/AIA/PVC 3 and 4 Conductor Armored Power Cable (600 V)
XLPE/AIA/PVC 3 and 4 Conductor Armored Power Cable (600 V)
- Tianjin port Qingdao port or other main port
- T/T Credit Card
You May Like
-
MC Compact Stranded-aluminum Conductor XHHW-2 Aluminum Armored 600V 3,4 Conductor UL1569 Certificate
-
MC Cable- Solid Copper Conductors/Aluminum MC 120V/208V and 277V/480V
-
Mc Compact Stranded Aluminum Conductor Thhn/Thwn Aluminum Armored
-
Type Mc Cable in Sizes 6AWG to 2000kcmil Employing Iterlocked Aluminum Armour
-
THHN/ THWN OR XHHW-2 Conductor Aluminum or Steel Interlocked Armor UL1569 Certificate MC Cable
-
8 AWG - 4/0 AWG Bare Copper Compressed 3 and 4 Conductor Armored Power Cable (600 V)
Product Details
| Brand Name | RNEDA | Place of Origin | Hebei, China | |
| Model Number | MC cable | Type | Low Voltage | |
| Application | Marine | Insulation Material | XLPE | |
| Jacket | PVC | Conductor Material | Copper |
Product Description

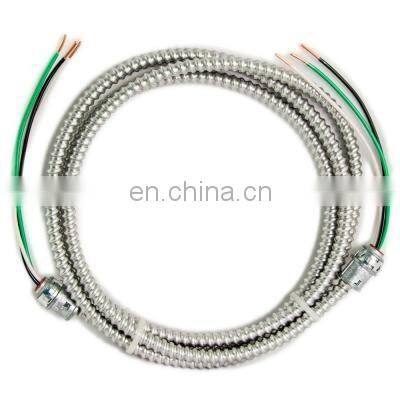

XLPE/AIA/PVC 3 and 4 Conductor Armored Power Cable UL Type MC, 600 V
Approvals:
· National Electric Code (NEC)
· UL 1569
· UL 44
· ICEA S-95-658/NEMA WC 70
· UL Type MC- 600 volts
· NEC Type XHHW-2 conductors
· IEEE 383 (70,000 BTU/hr)
· UL 1581 (70,000 BTU/hr)
· IEEE 1202 (70,000 BTU/hr)/CSA FT4
· ICEA T-29-520 (210,000 BTU/hr)
· Meets EPA 40 CFR part 261 leachable lead content per TCLP method
· OSHA acceptable
Construction:
· Conductor:
· 8 AWG - 4/0 AWG bare copper compressed
· Class B stranding per ASTM B3 and B8
· Insulation:
· Cross-Linked Polyethylene (XLPE)
· Color-Coded: per ICEA Method 1: Table E-2
· Ground:
· Annealed bare copper Class B stranding per ASTM B8
· Armor:
· Aluminum Interlocked Armor (AIA)
· Jacket:
· Flame retardant, moisture and sunlight resistant PVC - black
· XLPE/AIA/PVC 3 and 4 Conductor Armored Power Cable Options:
· Other constructions available
· XLPE/AIA/PVC 3 and 4 Conductor Armored Power Cable Applications:
· Commercial, industrial and utility applications where maximum performance and easy installation is demanded and fire resistance is critical
· Permitted for Class I Division 2, Class II Division 2, and Class III Division 1 and 2 per NEC Article 334
· Exposed or concealed work, wet or dry locations, indoors or outdoors and cable trays
· XLPE/AIA/PVC 3 and 4 Conductor Armored Power Cable Features:
· Rated at 90°C wet or dry
· Provides excellent oil, sunlight, chemical, and crush resistance
· Long service life
· Cost-effective alternative to installations in conduit
· Meets cold bend test at -25°C
HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We are OEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.
We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC,DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.
1. 22 years production experience and 13 years export experience .
2.high-end Machinery and equipment for high quality cable .
3.manufacture various of cable :power cable,control cable,abc cable,submersible oil pump cable,rubber cable,elevator cable,electric cable...
4. products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL,DNV:
system ceryification:ISO9001,ISO14001,OHSAS18001
5.our product sells all over the world and has the good reputation.
fessional teamwork service for you actively.
7.quick solution and long time online time waiting for your inquiry.
8.rapid delivery and feedback.
9. Stock available, Free sample.
10.We can do that you expect.
(1)When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, pleasecall us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freightcharge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account or prepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
