Factory Outlet Price SC APC 1x2 1x4 1x8 1x16 Fiber Optic Steel Tube PLC Splitter

Factory Outlet Price SC APC 1x2 1x4 1x8 1x16 Fiber Optic Steel Tube PLC Splitter

Application:

Fiber to The Point (FTTX)
Fiber to The Home (FTTH)
Passive Optical Networks (PON)
Gigabit Passive Optical Networks (GPON)
Local Area Networks (LAN)
Cable Television (CATV)
Test Equipment

Fiber Optical Splitter For SC APC 1x2 1x4 1x8 Description :

Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated

optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used 1310nm, 1490nm

and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access

technology FTTP fiber network system, broadband passive optical optical distributor (POS) use.

Including 1x2,1x4,1x8,1x16,1x32,1x64, and 2x2,2X4,2X8,2X16,2X32,2X64 type.

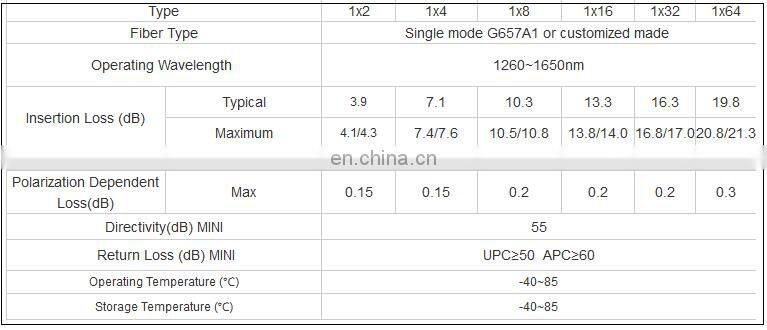

Specification:
1x2, 1x4, 1x8, 1x16, 1x32, 1x64 splits
2x2, 2x4, 2x8, 2x16, 2x32, 2x64 splits
Fiber jacketing outside boxes 2mm and up to 3mm
ABS box type or inside metal box/module cassette type
SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC connector options
Custom connector configurations and combinations

Characteristics:
Low insertion loss
Low Polarization Dependent Loss
Excellent Environmental Stability
Excellent Mechanical Stability

Standards:

Comply with Standard

• Telcordia GR-1209-CORE-2001
• Telcordia GR-1221-CORE-1999
• RoHS

Storage/Operating Temperature: -40°C to + 80°C

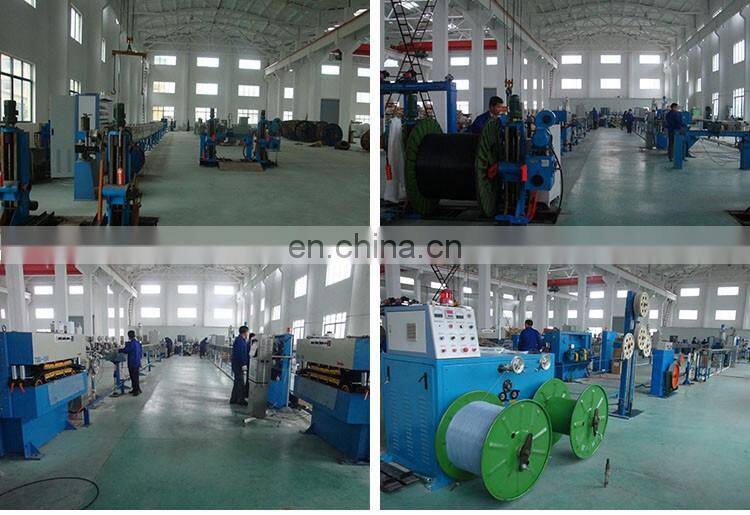

Hunan Shuanglin Communication Technology Co.,Ltd. is one of the biggest manufacturer of fiber optic cable in China.
