Home > Products > steel profiles > H beam hot rolled Q235 Q345 First Grade Quality

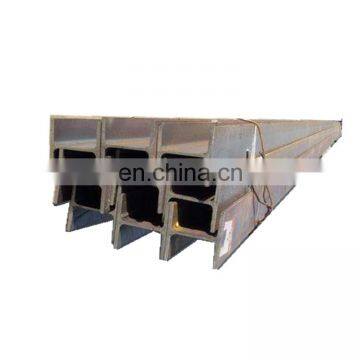

H beam hot rolled Q235 Q345 First Grade Quality
- Tianjin Xingang Port
- T/T Credit Card
You May Like
-
h beam astm a36 carbon hot rolled prime structural steel h beam
-
Wholesale Hot Paint H Profile Universal Beam Sizes Weight Per Meter
-
China Supplier Steel Structure welding h beam sizes and universal beam cutting and drilling holes
-
galvanised h beam factory
-
Hot Rolled Steel Structure H Beam For Building
-
China price Q195 / Q235 / Q345 steel u channel purlin u channel galvanized u purlins
Product Details
| Brand Name | Lanchuang | Place of Origin | Hebei, China | |
| Model Number | H100-900 | Length | 6-12m | |
| Thickness | 5.0mm-16.0mm | Application | Structure Construction | |
| Standard | JIS | |||
| Web Thickness | 5.0-16.0mm | |||
| Web Width | 100-900mm | Flange Thickness | 7-28mm | |
| Flange Width | 50-300mm |
Product Description
| | H=100~900mm |
| B=50~300mm | |
| tw=5.0~16.0mm | |
| tf=7.0~28.0mm | |
Meterial: Q235(equivalent to A36, SS400, S235JR, ST37-2) Q345(equivalent to S355JR, ST52-3) | |
Surface: black, galvanized or customized. |
GB STANDARD H BEAM:
| SIZE (mm) | KG/M | SIZE (mm) | KG/M | SIZE (mm) | KG/M | SIZE (mm) | KG/M |
| 100*50*5.0*7 | 9.54 | 248*124*5.0*8 | 25.8 | 390*300*10.0*16 | 107 | 498*432*45.0*70 | 605 |
| 100*100*6.0*8 | 17.2 | 250*125*6.0*9 | 29.7 | 394*398*11.0*18 | 147 | 500*200*10.0*16 | 89.6 |
| 125*50*6.0*8 | 13.3 | 250*250*9.0*14 | 72.4 | 396*199*7.0*11 | 56.7 | 506*201*11.0*19 | 103 |
| 125*125*6.5*9 | 23.8 | 250*255*14.0*14 | 82.2 | 400*200*8.0*13 | 66 | 582*300*12.0*17 | 137 |
| 148*100*6.0*9 | 21.4 | 294*200*8.0*12 | 57.3 | 400*400*13.0*21 | 172 | 588*300*12.0*20 | 151 |
| 150*75*5.0*7 | 14.3 | 294*302*12.0*12 | 85 | 400*408*21.0*21 | 197 | 594*302*14.0*23 | 175 |
| 150*150*7.0*10 | 31.9 | 298*149*5.5*8 | 32.6 | 414*405*18.0*28 | 233 | 596*199*10.0*15 | 95.1 |
| 175*90*5.0*8 | 18.2 | 300*150*6.5*9 | 37.3 | 428*407*20.0*35 | 284 | 600*200*11.0*17 | 106 |
| 175*175*7.5*11 | 40.4 | 300*300*10.0*15 | 94.5 | 440*300*11.0*18 | 124 | 606*201*12.0*20 | 120 |
| 194*150*6.0*9 | 31.2 | 300*305*15.0*15 | 106 | 446*199*8.0*12 | 66.7 | 692*300*13.0*20 | 166 |
| 198*99*4.5*7 | 18.5 | 340*250*9.0*14 | 79.7 | 450*200*9.0*14 | 76.5 | 700*300*13.0*24 | 185 |
| 200*100*5.5*8 | 21.7 | 344*348*10.0*16 | 115 | 458*417*30.0*50 | 415 | 792*300*14.0*22 | 191 |
| 200*200*8.0*12 | 50.5 | 346*174*6.0*9 | 41.8 | 482*300*11.0*15 | 115 | 800*300*14.0*26 | 210 |
| 200*204*12.0*12 | 56.7 | 350*175*7.0*11 | 50 | 488*300*11.0*18 | 129 | 890*299*15.0*23 | 213 |
| 244*175*7.0*11 | 44.1 | 350*350*12.0*19 | 137 | 496*199*9.0*14 | 79.5 | 900*300*16.0*28 | 243 |
Q1: What products can you offer?
We can provide cold bending steel purlins, thin iron wire, black steel tube, gi tube, gi/ppgi coil
and sheet, etc.
Q2:Why should I choose you?
(1) Contact us with your detailed inquiry, you will be replied within 24 hours.
(2)You are promised to obtain the best quality, price and service.
(3) We'd like to provide samples for your confirm.
(4) Wide excellent experiences with after-sale service.
(5)Every process will be checked by responsible QC which insures every product's quality.
Q3: Can you provide samples for checking before order?
Yes.Free samples with freight collect will prepared as required.
Q4: Can you accept customization?
Yes. If you have special requirements on products or packages, we can do customization for you.
Q5: What is the price term?
FOB, CIF, CFR, EXW are acceptable.
Q6: What’s the payment term?
T/T, L/C, D/A, D/P or other method as agreed.
