Home > Products > WDM > Adaptor-Input ABS Type PLC Splitter Fiber Optic PLC Manufacturer HYC Co., Ltd

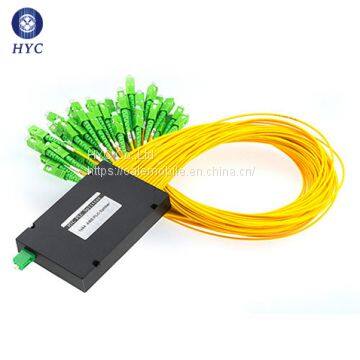

Adaptor-Input ABS Type PLC Splitter Fiber Optic PLC Manufacturer HYC Co., Ltd

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin

China

Product Description

HYC's adaptor-input ABS type PLC splitter is used in PON network, and has a good protective effect for the internal optical components and cables. It has simple design and reliable installation. It is characterized by installing an adaptor at the input port.

Features:
? Low insertion loss, low PDL
? Good channel to channel uniformity
? Wide operating wavelength from 1260-1650nm
? Using adaptor as input port
? Input and output cable:OD2.0/3.0mm, good mechanical performance, convenient for connector assembly

Application:
? CATV system
? Optical fiber sensor
? Lan network
? FTTH

Specification:

Parameters	1×2	1×4	1×4	2x4	1×8	2x8	1×16	2x16	1×32	2x32	1×64	2x64
Operating wavelength(nm)	1260~1650
Fiber type	G652D/G657A1/G657A2
Insertion Loss(dB)	4	4.2	7.2	7.4	10.5	10.8	13.7	14	17	17.5	20.6	21
Uniformity(dB)	0.4	1	0.6	1.5	0.8	1.5	1.2	2	1.5	2	2	2.5
Return Loss(dB)	55		55		55		55		55		55
PDL(dB)	0.2	0.3	0.2	0.3	0.2	0.3	0.3	0.3	0.3	0.3	0.35	0.5
Directivity (dB)	55		55		55		55		55		55
Temperature Stability(-40~85 oC)(dB)	0.5		0.5		0.5		0.5		0.5		0.5
Operating temperature (oC)	-25~70
Storage temperature (oC)	-25~70
ABS box dimension (LxWxH) mm	120x80x18
