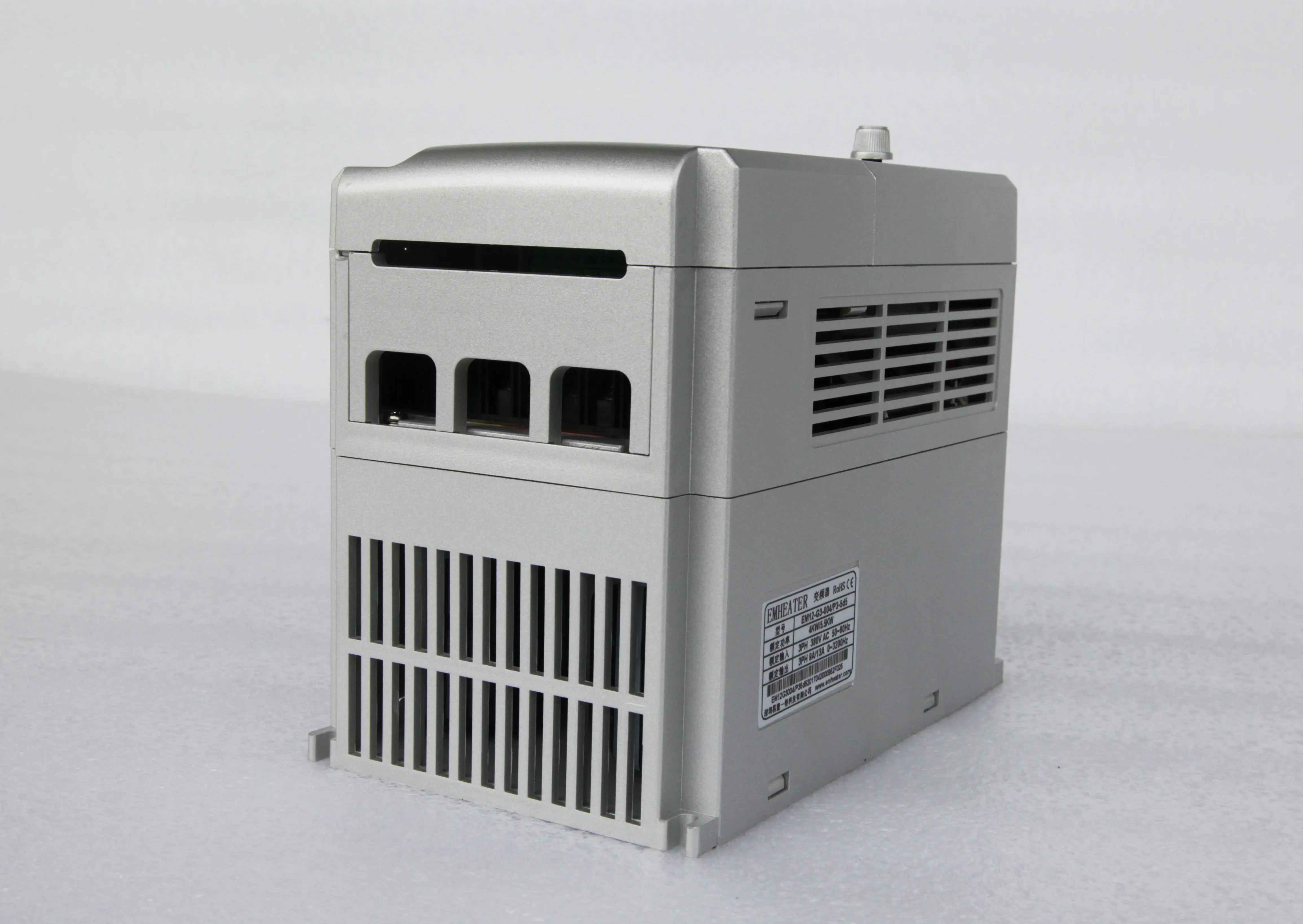

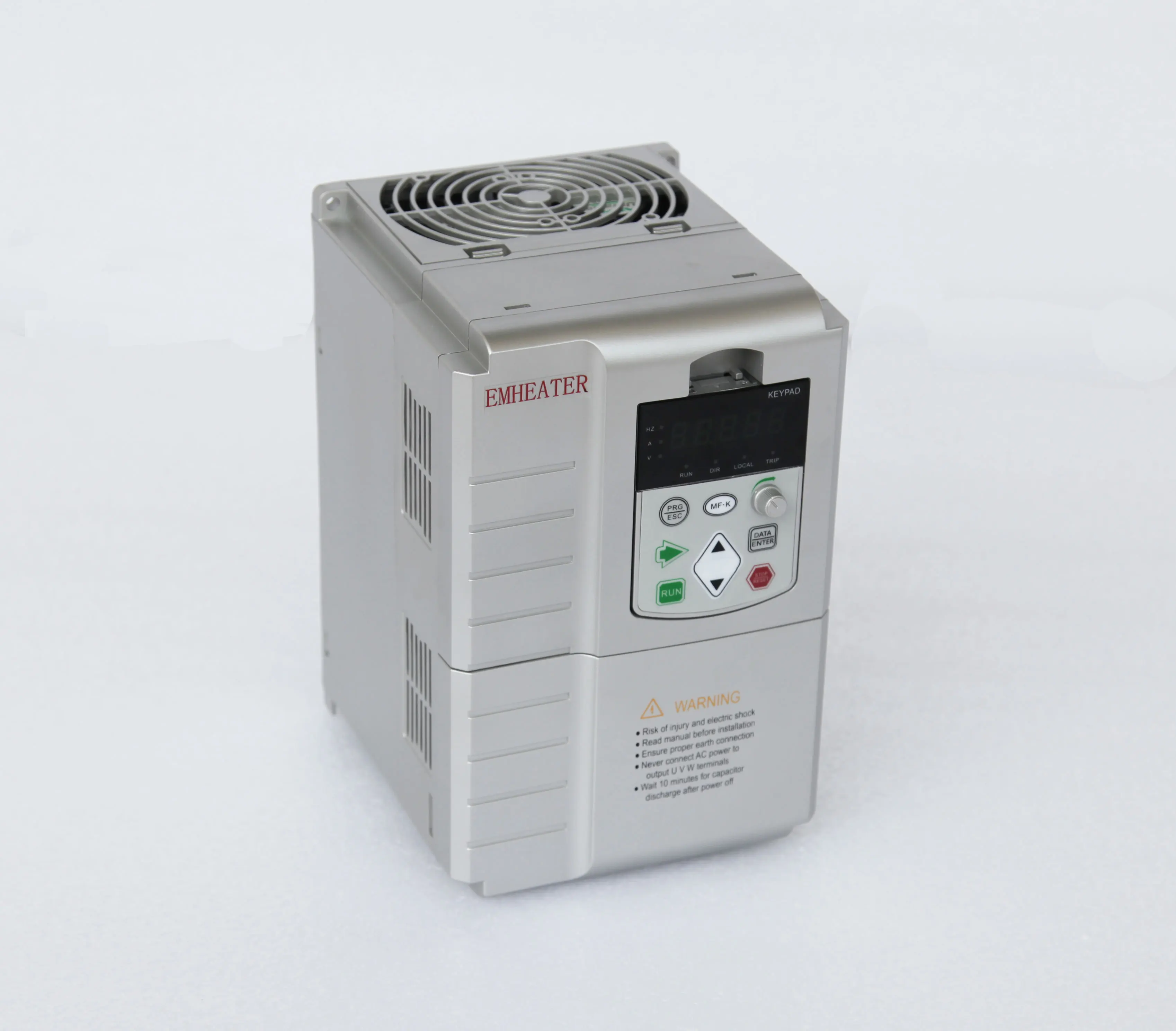

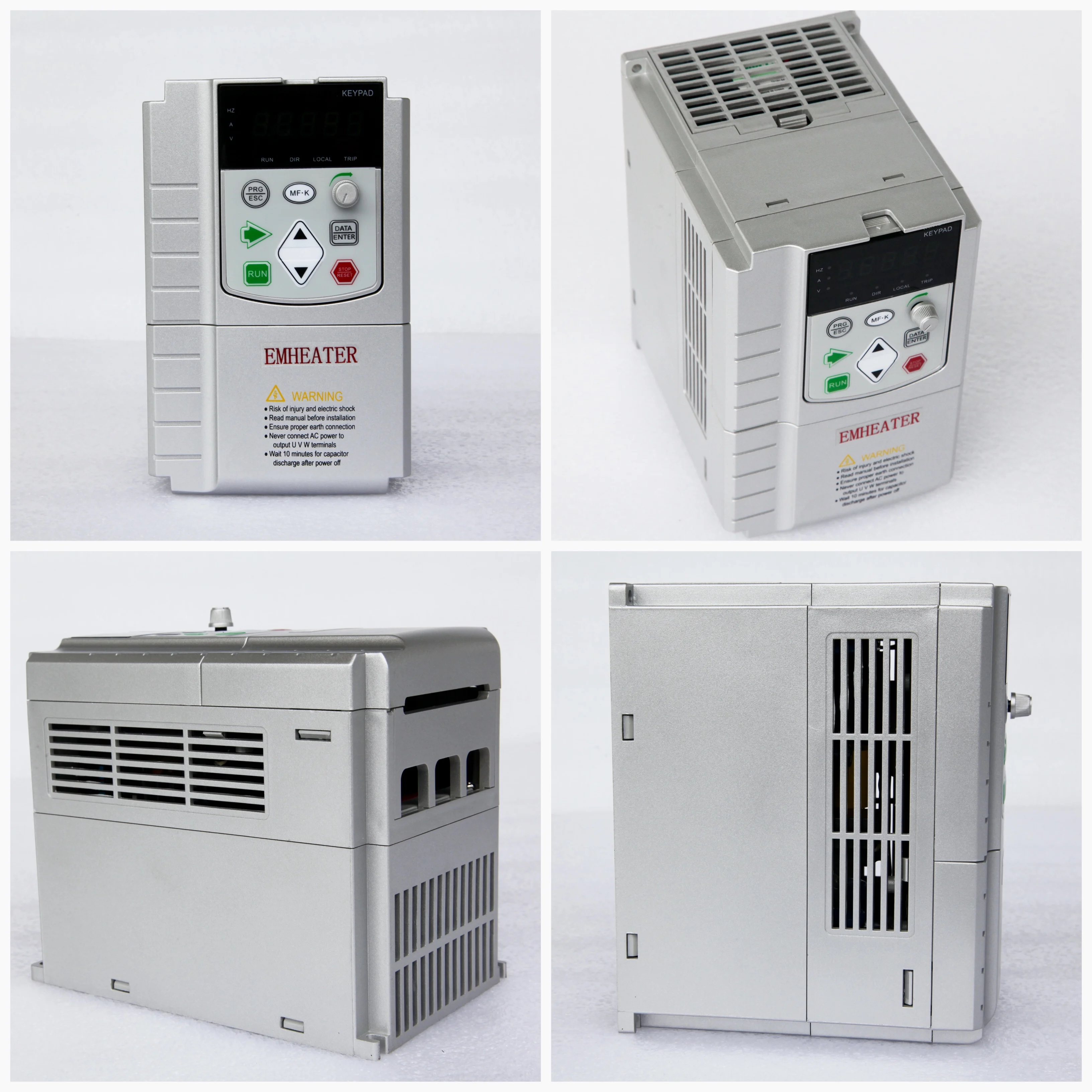

frequency inverter 380V 30kw 50~60hz for compressor With Good Service

CHINA BEST COST EFFECTIVE FREQUENCY INVERTEREM12

High Performance Vector Control

 Application scope

motor/water pump/draught fan/conveyor/lifting equipment and so on

 Features and data of EM12

1.EM12 is first class frequency inverter with very strong software and hardware.

2.It has servo drive feature, with perfect speed control mode, and excellent torque control mode.

3.It can save 2 group motor parameters , and can drive synchronous motor and asynchronous motor.

4.It has sensor-less vector control (SVC), vector control+ PG; V/F control and V/F separation control.

5.It has 49 kinds digital input functions and 38 kinds digital output functions.

6.It has S curve of acceleration and deceleration, user can self defined S curve turning time.

7.The IGBT carrier frequency can auto adjustment according to heat sink temperature.

8.35 kinds protection function, including auto detecting short circuit after power on.

9.Including textile swing frequency and skip frequency function, etc.

10.Voltage Range:220V~240V; 380V~440V.

11.Input Frequency Range:45~65Hz.

12.Output Voltage Range:0V~rated input voltage.

13.Output Frequency Range:V/F( 0~3000Hz); Vector Control (0~300Hz).

14.Overload Capacity:60s with 150% of rated current, 3s with 180% of rated current.

15.From 0.75~30KW Plastic house; 30~400KW is metal house.

16.Speed Accuracy: ±0.5% (SVC); ±0.02% (VC).

17.Pulse setting input: 0Khz~100Khz.

18.All model built-in RS485 card, and approved by CE, Rohs, ISO9001 quality certificate.

19.EM12-G3/P3 models are integrated IGBT.

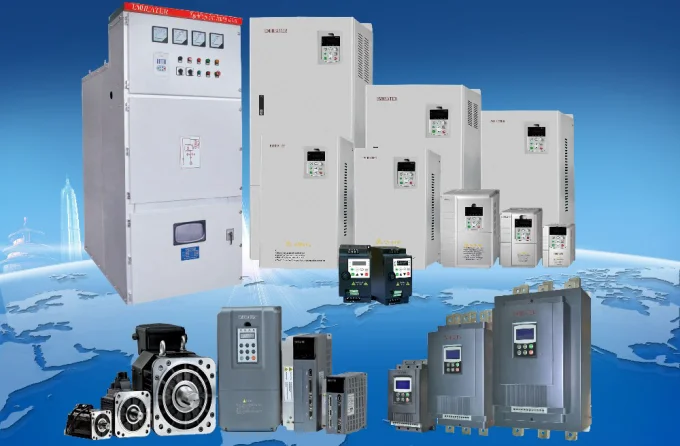

 Reated Products and Pictures

1.Vector Frequency Inverter

/product-detail/7-5kw-Frequency-Inverter-of-380V_62031833463.html?spm=a2747.manage.0.0.623171d2uVopBz

2.Solar pump inverter

/product-detail/45W-380V-Triple-Phase-MPPT-Solar_62031309786.html?spm=a2747.manage.0.0.623171d2uVopBz

ft starter

/product-detail/EMHEATER-Motor-Protection-online-working-soft_62039421707.html?spm=a2747.manage.0.0.139e71d2A7kPT4

  Certificate

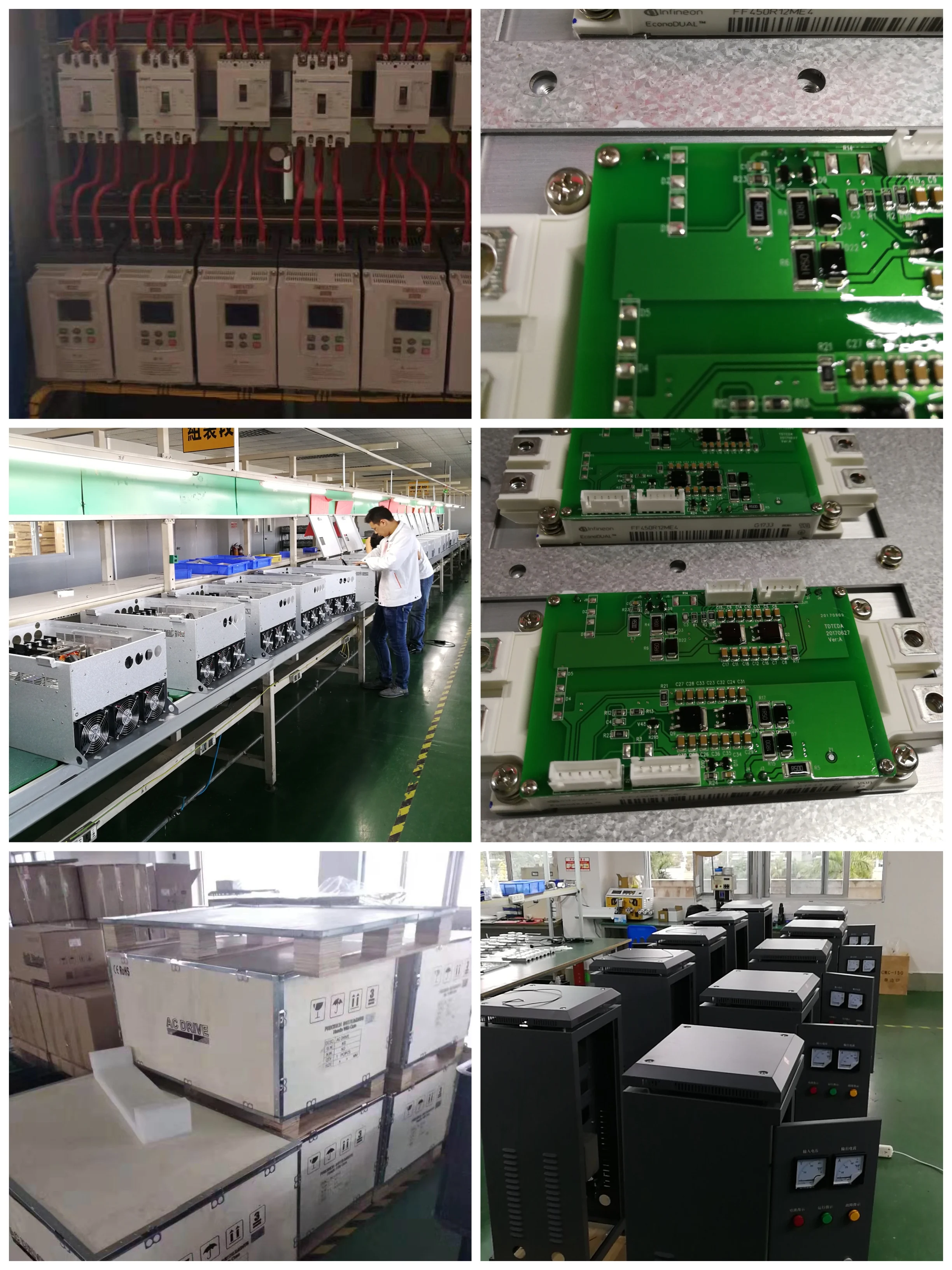

 Workshop

 Our Customers

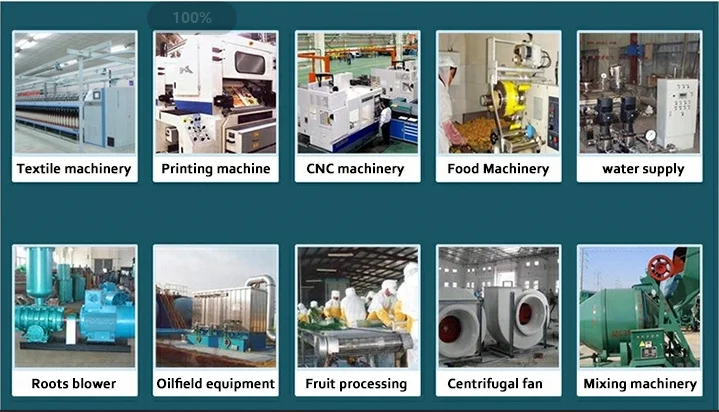

 Application

A: We are factory.

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

A: Yes, we could offer the sample

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

-----------------------------------------------------------------------------
