Home > Products > Thin Section Ball Bearing > KB-AR0 Angular Contact Ball Thin Section Bearing Open Type

KB-AR0 Angular Contact Ball Thin Section Bearing Open Type

FOB Price

US$ 1 - 100 / Piece

50 Pieces(Min. Order)

Port Shanghai, Shenzhen, Qingdao, Luoyang
Payment TermsT/T L/C D/P D/A PayPal Other

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	BCM		Place of Origin	China
Outside Diameter	,		Bore Size	,

Product Description

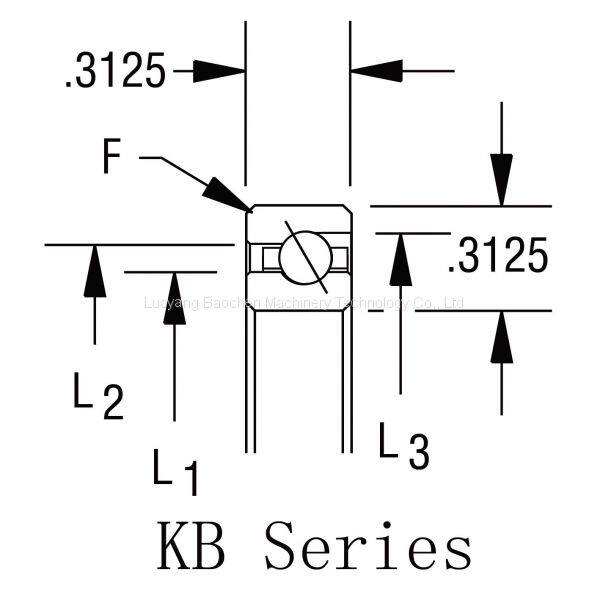

KB series	Interchange		（inch/mm） Dimension					Basic Cap.N				Weight
KB series	NTN	KAYDON	d	D	L1	L2	L3	Radial		AXial		Weight
Type	NTN	KAYDON						Cor	Cr	Coa	Ca	Kg
KB020AR0	KYB020	KB020AR0	2	2.625	2.231	2.393	2.464	4850	2130	14000	6130	0.068
KB020AR0	KYB020	KB020AR0	50.8	66.675	56.7	60.8	62.6					0.068
KB025AR0	KYB025	KB025AR0	2.5	3.125	2.731	2.893	2.964	5960	2450	17160	7070	0.086
KB025AR0	KYB025	KB025AR0	63.5	79.375	69.4	73.5	75.3					0.086
KB030AR0	KYB030	KB030AR0	3	3.625	3.231	3.393	3.462	6890	2710	19870	7780	0.1
KB030AR0	KYB030	KB030AR0	76.2	92.075	82.1	86.2	87.9					0.1
KB035AR0	KYB035	KB035AR0	3.5	4.125	3.731	3.893	3.962	7960	2980	23030	8580	0.122
KB035AR0	KYB035	KB035AR0	88.9	104.775	94.8	98.9	100.6					0.122
KB040AR0	KYB040	KB040AR0	4	4.625	4.432	4.393	4.46	9070	3250	26180	9340	0.136
KB040AR0	KYB040	KB040AR0	101.6	117.475	107.5	111.6	113.3					0.136
KB042AR0	KYB042	KB042AR0	4.2	4.875	4.481	4.643	4.71	9560	3330	27560	9650	0.141
KB042AR0	KYB042	KB042AR0	107.95	123.825	113.8	117.9	119.6					0.141
KB045AR0	KYB045	KB045AR0	4.5	5.125	4.731	4.893	4.96	10000	3470	28890	9960	0.154
KB045AR0	KYB045	KB045AR0	114.3	130.175	120.2	124.3	126					0.154
KB047AR0	KYB047	KB047AR0	4.75	5.375	4.981	5.143	5.21	10620	3600	30720	10400	0.159
KB047AR0	KYB047	KB047AR0	120.65	136.525	126.6	130.6	132.2					0.159
KB050AR0	KYB050	KB050AR0	5	5.625	5.231	5.393	5.46	11110	3690	32050	10710	0.168
KB050AR0	KYB050	KB050AR0	127	142.875	132.9	137	138.7					0.168
KB055AR0	KYB055	KB055AR0	5.5	6.125	5.731	5.893	5.958	12180	3960	35200	11380	0.181
KB055AR0	KYB055	KB055AR0	139.7	155.575	145.6	149.7	151.3					0.181
KB060AR0	KYB060	KB060AR0	6	6.625	6.231	6.393	6.458	13290	4180	38360	12050	0.2
KB060AR0	KYB060	KB060AR0	152.4	168.275	158.3	162.4	164					0.2
KB065AR0	KYB065	KB065AR0	6.5	7.125	6.731	6.893	6.958	14220	4360	41070	12620	0.213
KB065AR0	KYB065	KB065AR0	165.1	180.975	171	175.1	176.7					0.213
KB070AR0	KYB070	KB070AR0	7	7.625	7.231	7.393	7.456	15340	4580	44270	13250	0.227
KB070AR0	KYB070	KB070AR0	177.8	193.675	183.7	187.8	189.4					0.227
KB075AR0	KYB075	KB075AR0	7.5	8.125	7.731	7.893	7.955	16450	4800	27230	13870	0.245
KB075AR0	KYB075	KB075AR0	190.5	206.375	196.4	200.5	202.1					0.245
KB080AR0	KYB080	KB080AR0	8	8.625	8.231	8.393	8.453	17510	5020	50580	14490	0.259
KB080AR0	KYB080	KB080AR0	203.2	219.075	209.1	213.2	214.7					0.259
KB090AR0	KYB090	KB090AR0	9	9.625	9.231	9.393	9.451	19560	5420	56450	15600	0.29
KB090AR0	KYB090	KB090AR0	228.6	244.475	234.5	238.6	240					0.29
KB100AR0	KYB100	KB100AR0	10	10.625	10.231	10.393	10.449	21740	5780	62760	16710	0.322
KB100AR0	KYB100	KB100AR0	254	269.875	259.9	264	265.4					0.322
KB110AR0	KYB110	KB110AR0	11	11.625	11.231	11.393	11.447	23780	6130	68630	17780	0.354
KB110AR0	KYB110	KB110AR0	279.4	295.275	285.3	289.4	290.8					0.354
KB120AR0	KYB120	KB120AR0	12	12.625	12.231	12.393	12.445	25960	6530	74940	18850	0.386
KB120AR0	KYB120	KB120AR0	304.8	320.675	310.7	314.8	316.1					0.386
KB140AR0	KYB140	KB140AR0	14	14.625	14.231	14.393	14.439	30050	7200	86680	20760	0.445
KB140AR0	KYB140	KB140AR0	355.6	371.475	361.5	365.6	366.8					0.445
KB160AR0	KYB160	KB160AR0	16	16.625	16.231	16.393	16.433	34270	7870	98900	22670	0.509
KB160AR0	KYB160	KB160AR0	406.4	422.275	412.3	416.4	417.4					0.509
KB180AR0	KYB180	KB180AR0	18	18.625	18.231	18.393	18.425	38490	8490	111080	24490	0.572
KB180AR0	KYB180	KB180AR0	457.2	473.075	463.1	467.2	468					0.572
KB200AR0	KYB200	KB200AR0	20	20.625	20.231	20.393	20.416	42720	9110	123260	26230	0.635
KB200AR0	KYB200	KB200AR0	508	523.875	513.9	518	518.6					0.635
