Hot Sale 500 Liter Conical Beer Brewing Equipment Fermenter System Fermentation Tank

Product features:

1. Appearance clean and generous: The tank is polished by mirror, and the equipment is bright;

2. Good insulation effect: The equipment is divided into two kinds of heat insulation and cold insulation, which is the best to ensure the temperature of the beer brewing process;

3. Visualization operation: the equipment is controlled by PLC, and the fermentation tank is equipped with a glass tube level gauge, which is convenient for visual operation;

4. Low energy consumption: environmental protection, energy saving, low power consumption, saving energy consumption of about 20%;

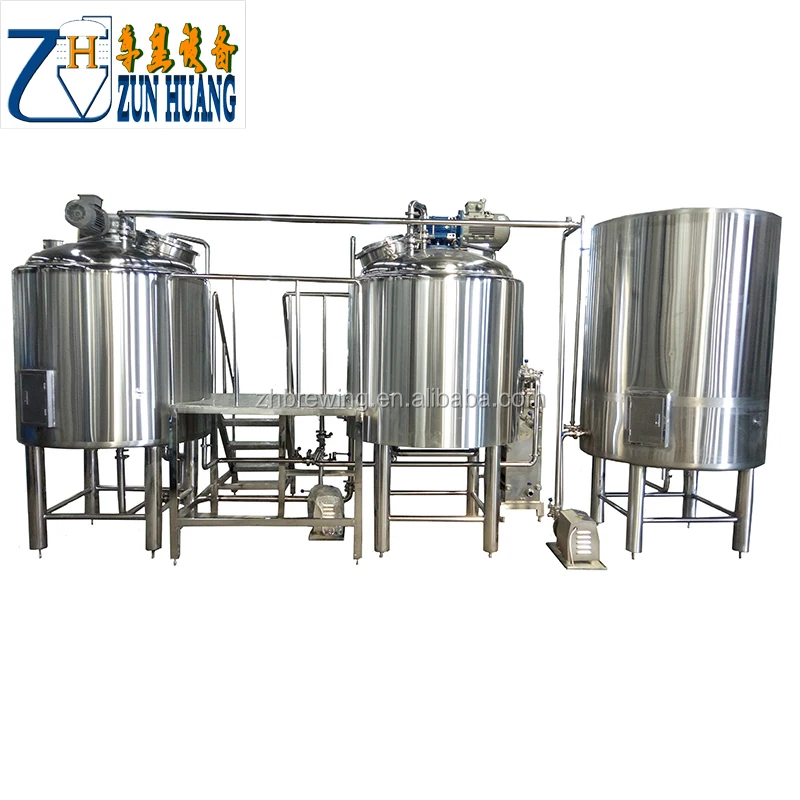

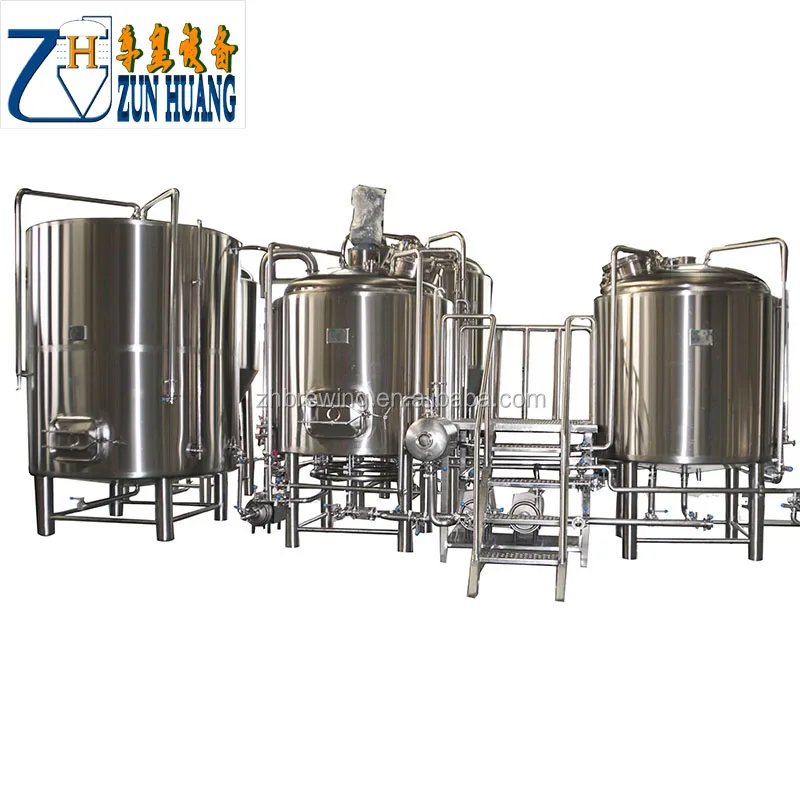

Beer equipment list

Product picture:

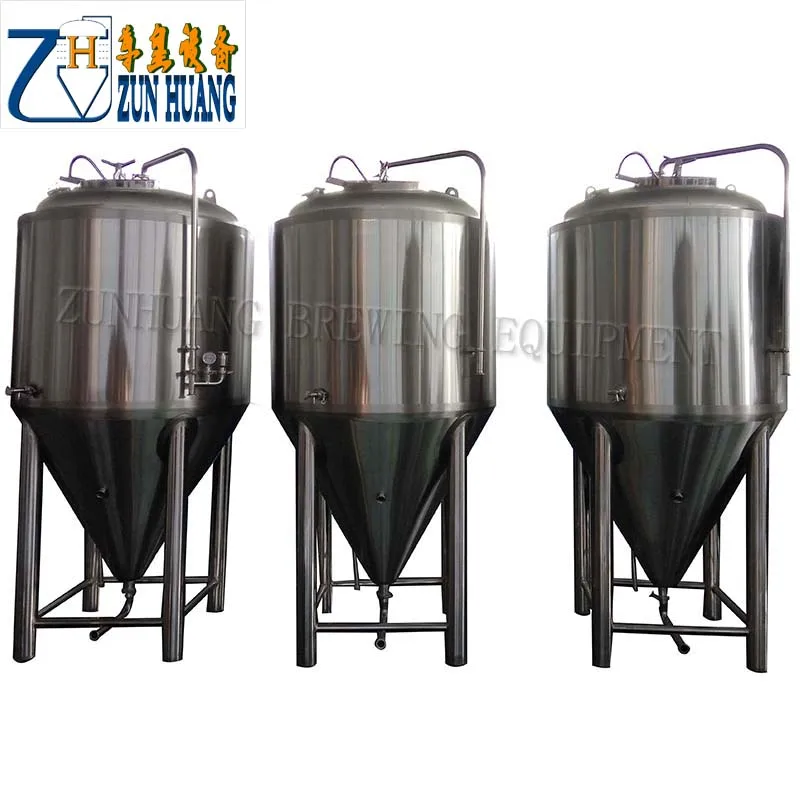

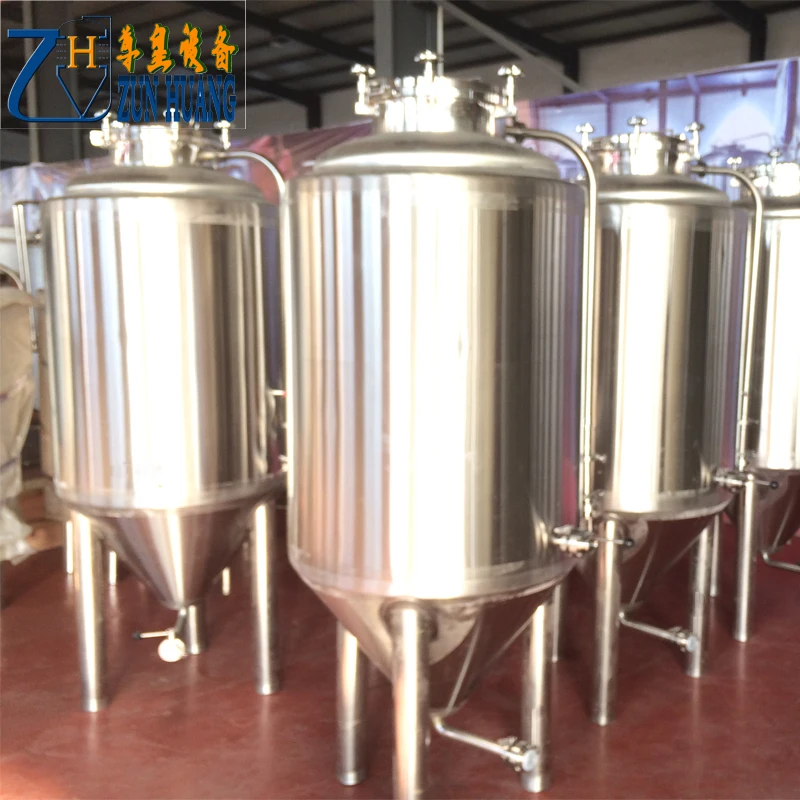

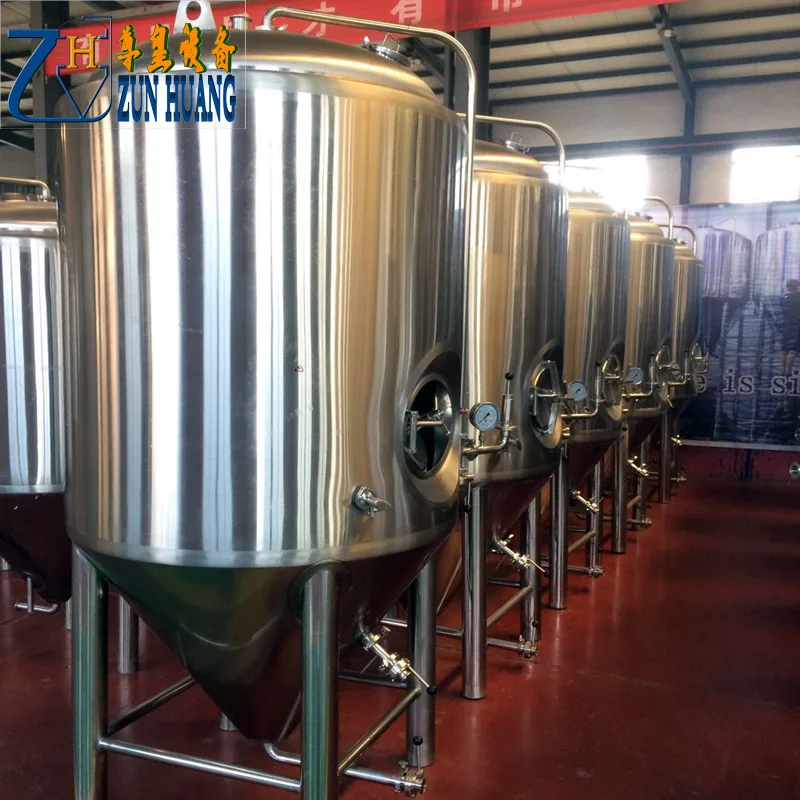

Cylindrical conical tank, widely used for beer one tank fermentation technology, conical angel 60°design, easy for yeast collection after primary fermentation.

All tank made of 304 high quality food grade stainless steel, including tank inner wall and outer wall, belt jacket, tank head, tank legs, accessories like manholes, valves pipes, fittings and etc.

Cooling jacket surrounded on the inner tank body, water and glycol mixture as the cooling media was transported through the belt jacket to keep the tank in a proper temperature level.

Related product ↓↓↓↓↓↓↓

 Technical Parameters:

1. Manhole, stainless steel top manhole or glass sight manhole

2.Temperature measurement method: PT100 temperature probe.

3.Cleaning method: Fixed rotate cleaning ball and sprage coil on top.

4.Mechinical agitation& Raker: at the top stirring. High power, low speed to ensure complete worse layer.

5.Milled sieve plate,0.7mm distance with discharge hole.

6.Whirlpool tangent pumped at 1/3 height of the tank and glass level.

7.Stainless steel legs, with screw assembly to adjust leg height

 Shandong Zunhuang Brewing Equipment Co., Ltd is the domestic integrated industrial and trade comprehensive enterprise dedicated in research, manufacturer, development, sales and after-sale service, until now have the 16 years produce experience, company focuses on beer system project that refer to fruit wine equipment, white spirit and alcohol equipment etc, corollary equipment, our company purpose: “Quality first, customer highest”, use the short period provide direct and comprehensive service, and improve the products’ valve and market competitive.

 Internationally recognized:

 Zunhuang technology has been internationally recognized, and achieved ISO9001: 2008 international quality system certification, import and export EU CE Certification; accepted ASME, CE, AS1210 third-party inspection, with import and export rights, the company's products have been in over 30 countries worldwide.

1. Ocean shipment,railway shipment,express delivery.

 Ten provide to service you:

1. After-sale Service for the whole life.

2. 24h service for you, solve your urgent problem first time.

3. 3 years warranty for the main products.

4. Free design for your brewery layout for 2D or 3D.

5. Spare parts replacement and repair service provided.

6. Engineer going abroad for installation, debugging and technical training if you need.

7. Provide the Form E, CO, etc..others necessary reduce import Tax files for you.

8. To provide update information about brewing equipment technology once we test.

9. Help you send the goods if you have others company order, then send to you together.

10. Door to Door service, if you need any brewing parts.

1.Q: Are you a manufacturer?
A: We are the manufacturer of beer brewing equipment for 16 years.

2.Q:Can I have the customized products for myself?
A:Yes,we can design and manufacture as client's requirements.

3.Q: Can you guarantee your quality?
A: All of our products is applied with CE certificate and highly in accordance with GMP. Equipment is made of high quality of SUS304/316. Inspect certificate is available.

4.Q:How about the after sales service?
A:For our after-sale service, we promise all life of technical support to new and old customers.
All of our products is available with 10 years warranty even for spare parts within quality warranty period, our service is free of charge.
