100 liter Peanut Butter Industrial Steam Heating Jacketed Kettle Cooking Pot with Mixer Jacketed Kettle
- Shanghai
- T/T L/C D/P D/A
- 15 days
You May Like
-
100 liter Industrial Electric Gas Sanitary Jacketed Cooking Pan Kettle /Stainless Steel Industrial Pressure Cooker
-
100 Gallon ice cream Electrical Jacket Cook Mixing Kettle Cooking Processing Planetary Mixer Cooking Machine Stirring
-
200 Gallon Strawberry Mixer Pressure Cooking Jacketed Kettle Electrical Jacket Cook Mixing Kettle machine price
Product Details
| Brand Name | JY | Place of Origin | China | |
| Model Number | JYGJK-100Z | Type | Cooking Equipment | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

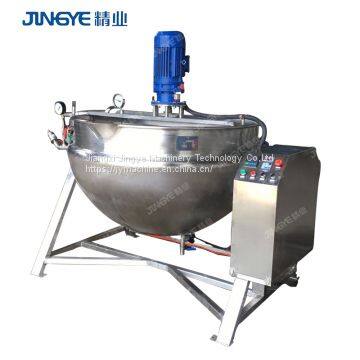

100 liter Peanut Butter Industrial Steam Heating Jacketed Kettle Cooking Pot with Mixer Jacketed Kettle
Production Description
.Suitable for
The jacketed kettle is suitable for mixing, concentrating and decocting the material in pharmaceutical,cosmetic, foodstuff and chemical industry etc.
It is the best choose for jam making such as the mat jam and strawberry jam making, tomato sauce making and candy, medicine, dairy, alcohol, cake, beverage, sweetmeat.
.Product parameters
Model(volume/Liter) | 50 | 100 | 200 | 300 | 400 | 500 | 600 | ||||
Caliber(mm) | Φ600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | ||||
Depth of Bowl(mm) | 450 | 500 | 550 | 600 | 650 | 700 | 750 | ||||
Mix Motor Power(kw) | 0.75 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | ||||
Heating Area(㎡) | 0.45 | 0.58 | 1.12 | 1.42 | 1.75 | 2 | 2.3 | ||||
Boiling Time(min) | 5 | 8 | 11 | 14 | 18 | 22 | 25 | ||||
Working Pressure and | ≤0.095Mpa,≤147°C(can be adapted） | ||||||||||
Stirring Speed | 36r/min (can be adapted ) | ||||||||||
Overall | Length(mm) | 900 | 1000 | 1100 | 1200 | 1300 | 1400 | 1500 | |||
Width(mm) | 750 | 850 | 950 | 1050 | 1150 | 1250 | 1350 | ||||
Height(mm) | 850 | 900 | 950 | 1000 | 1050 | 1100 | 1150 | ||||
.Product features
1 | This device is a series, mainly composed of body, inlet, drainage, tipping pots and other components. |
2 | The part in contact with the material is stainless steel SS304 or 306 or the like. |
3 | It can be used in middle or large restaurant and hotel industry to boil soup 、cooking 、mixing and uniform heating. |
4 | Its advantage is improving quality ,shortening time and improving working conditions. |
5 | The heating temperature is easy to control,the heating area is big,liquid material boiling time is short. |
Company information
Jiangxi JingYe Machinery Technology CO. LTD Is a high-tech private enterprise integrating R&D, engineering design, equipment manufacturing and engineering installation. It is a good supplier for food, beverage, biology, chemical industry, pharmaceutical equipment .
