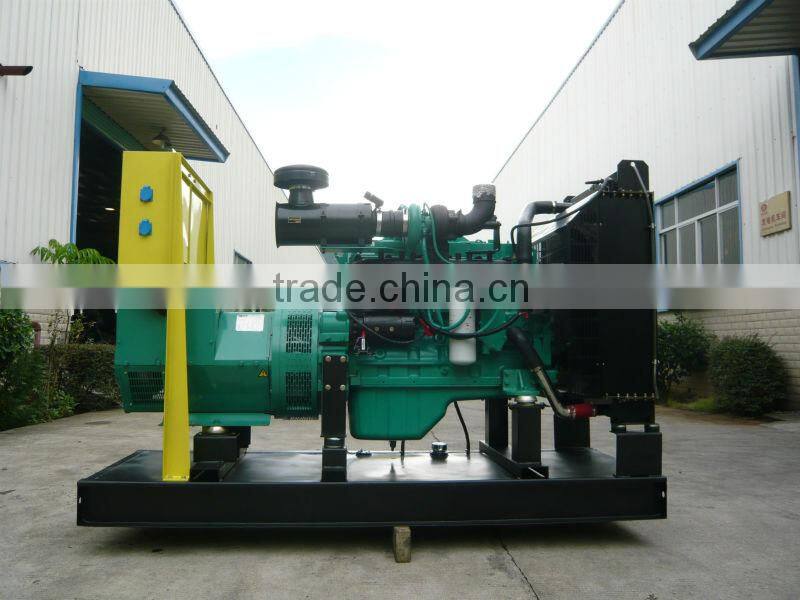

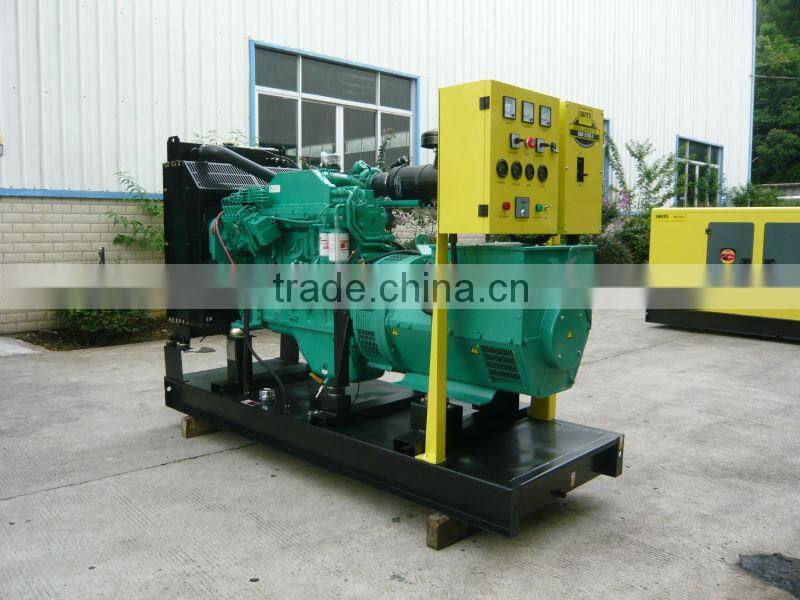

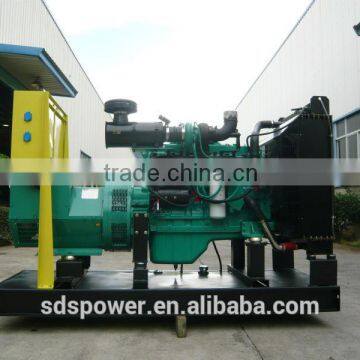

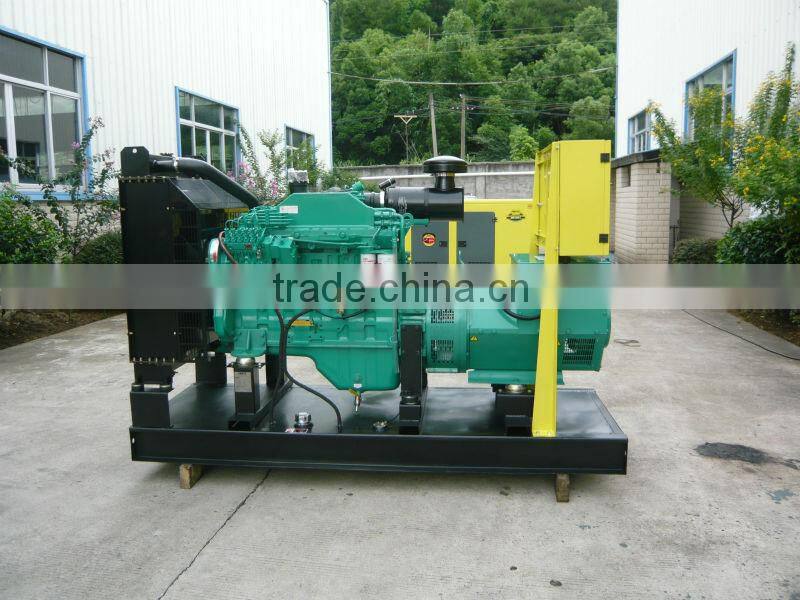

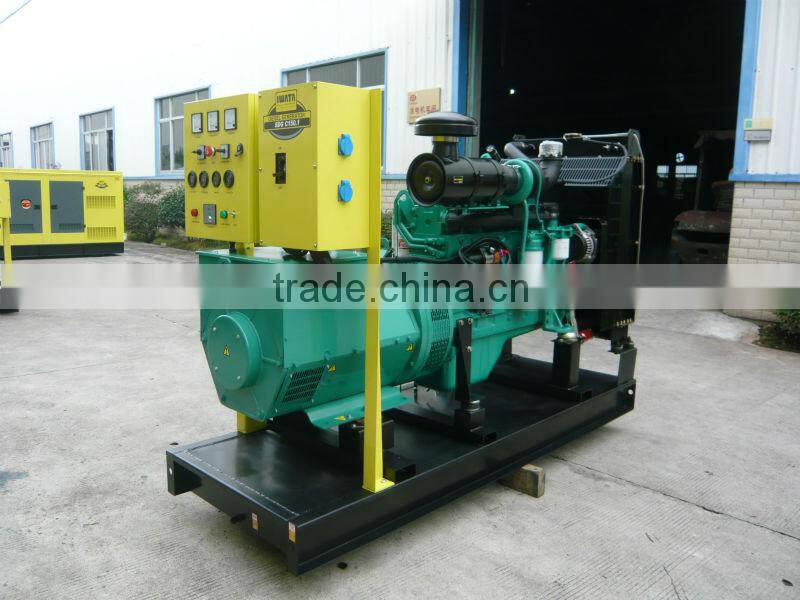

60HZ D engine 60kw three phase diesel generator
- FUZHOU
- T/T Credit Card
You May Like
Product Details
| Brand Name | SDS | Place of Origin | Shanghai, China | |
| Model Number | SDG-D75T.2 | Output Type | AC Three Phase | |
| Speed | 1800rpm | Frequency | 60hz | |
| Rated Voltage | 380V | Rated Power | 75kva 60kw |
Product Description
60HZ D engine 60kw three phase diesel generator
1)D engine
2)S alternator
3)Deepsea control system
4)12 months warranty
Important Features:
*Standard Radiator mounted on skid.

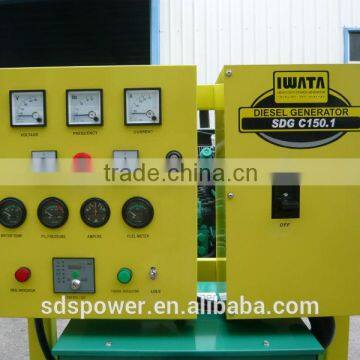

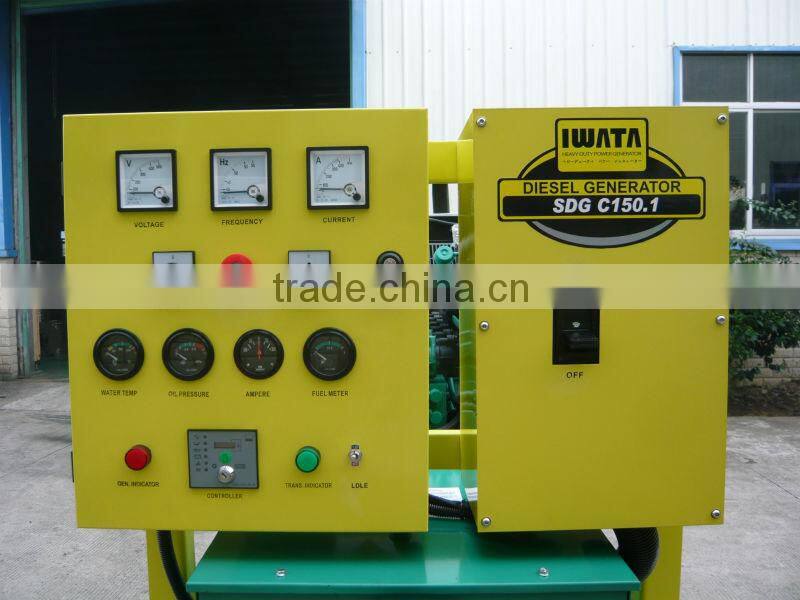

*Deepsea 702 auto/key start module
*Circuit breaker/&battery charger
*Genset lower than 1000kva have Anti-Vibration elements between engine/alternator and base frame
*24V Battery with battery cables
*Silencers with flanged flexible connection
*Genset below 200kw will be with a base fuel tank for at least 8 hours running, with fuel gauge integrated in the base frame of generating set
*English operation/maintenance manuals/test report for engine, alternator and genset
*Standard tools kit
| Type: | SDG-D Series | |
| Phase Number | Three Phase | |
| Model: | SDG-D75T.2 | |
| Rated Frequence(Hz) | 50 | 60 |
| Rated Voltage(V) | 400/230 | |
| Rated output power(kVA) | 62.5 | |
| Rated output power(kW/rpm) | 50 | |
| Power factor cosØ | 0.8 | |
| Noise level(dBA(@)7m)(zero load~full load) | ≤102 | |
| Structure Type | Open-frame type | |
| Excitation | Transistorized self-excitation constant voltage(AVR) | |
| Starter system | Electric start | |
| Engine model | TD226B-4D | |
| Engine type | Four-cylinder in line, 4-stroke, Turbocharged inhale, Direct injection | |
| Displacement[L(cc)] | 4L() | |
| Compression ratio | 16 | |
| Rated power[kW(Hp/rpm)] | 60 | |
| LUB. OIL capacity | 7.25 | |
| Alternator Type | LSA43.2L65 | |
| Fuel consumption(g/kw.h) | 208 | |
| The lowest fuel consumption(g/kw.h) | 1.36 | |
| Bore×Stroke [mm(in)] | 105*120 | |
| Displacement[L(cc)] | 4L | |
| Shape parameter | ||
| Overall dimension[mm(inch)] | 2050 Χ 750 Χ 1750 ( ) | |
