Home > Products > fiber laser marking machine > Hot selling best quality metal fiber laser marking machine 20w

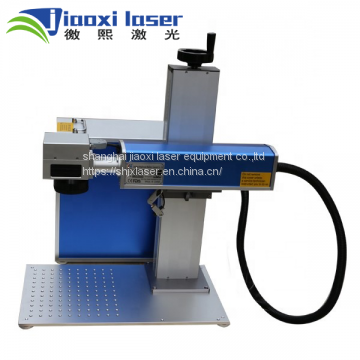

Hot selling best quality metal fiber laser marking machine 20w
- 100 Set / Sets per Month
- shanghai port
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 3 days
You May Like
-
Hot selling best quality metal fiber laser marking machine 30w
-
Portable 20W Fiber Laser Marking Machine / metal engrave printing
-
Portable 30W Fiber Laser Marking Machine / metal engrave printing
-
20W mini portable Fiber laser marking machine
-
30W mini portable Fiber laser marking machine
-
Fast Speed 20W Laser Marking Machine For Hardware
Product Details
| Brand Name | Jiaoxi | Place of Origin | China | |
| Model Number | JX-FTBX-Y20 | Certification | CE, ISO, SGS | |
| After-sales Service Provided | Engineers available to service machinery overseas | Condition | New | |
| Power(W) | 500W | Graphic Format Supported | AI, BMP, DST, DWG, DXF, DXP, PLT | |
| Control Software | EZCAD | Cooling Mode | Air Cooling | |
| CNC or Not | No | Laser Type | Fiber Laser | |
| Working Accuracy | 0.002mm |
Product Description
| JX-FTBX-Y20 | JX-FTBX-Y30 | JX-FTBX-Y50 | |
| Marking Area | 110×110mm(4.3×4.3in) 150×150mm(5.9×5.9in) Optional 175×175mm(6.9×6.9in) | ||
| Maximum Material Thickness | 300mm(11.8in)@110×110mm 250mm(9.8in)@150×150mm 206mm(8.1in)@175×175mm | ||
| Laser Type | RAYCUS/IPG/JPT Optional | ||
| Repetition Rate(Frequency) | 20-80KHZ@RAYCUS 1-400KHZ@JPT 1.6-1000KHZ@IPG | ||
| Output power adjustment range | 10%-100% | ||
| Marking Speed | ≤7m/s(275.6in/s) | ≤7m/s(275.6in/s) | ≤7m/s(275.6in/s) |
| Engraving Depth | ≤0.2mm(0.008in) | ≤0.4mm(0.016in) | ≤1mm(0.024in) |
| Minimum Line Width | 0.01mm(0.0004in) Depends on the material | ||
| Minimum Character | 0.2mm(0.008in) Depends on the material | ||
| Electrical Requirements | 110V-240V/50Hz-60Hz(According to local electricity supply). | ||
| Power consumption | 500W | 800W | 1000W |
| Marking Interface | USB connection.Compatible with Windows XP/Vista/7/8/10. | ||
| Communication Mode For Automation | TCP/IP,IO,RS232. | ||
| Marking Content | barcodes,serial numbers,text,vector,and logos. | ||
| Red Dot Pointer | Since the laser beam is invisible,the Red Dot Pointer allows you to have a visual reference for locating where the laser will fire. | ||
| Size | 800×650×1400(31.5×25.6×55.1in)@BY-20GS-A 380×650×850(16×25.6×33.5in)@BY-20GS-B 600×680×650(23.6×26.8×25.6in)@BY-20GS-C | ||
Shanghai Jiaoxi Laser Equipment Co.,Ltd is a professional manufacturer of Laser Marking Machine ,Laser Cutting Machine and CNC ROUTER ,Located in Shanghai
Baoshan industrial zone,it has a modern R & D center and manufacturing plant,since it was established ,it has continued to train and recruit talents through cooperation with colleges and brought a large number of enterprising and leading elites of the industry
Our company mainly products including laser marking machine ,CO2 laser cutting machine and cnc router etc , widely used in metal and non-metal field ,for example hardware ,integrated circuit chips ,
industrial bearings ,variety of auto parts ,hardware tools ,wire and cable ,mould,garment leather and craft gifts etc .in line with our advanced philosophy ,excellent products ,down to earth service,along with our strong R&D and production capacity ,wide social cooperation as well as efforts of our every employee,some machines are exported to the Europe, America, Singapore, Vietnam, India and Bangladesh etc .
Manufacturer the world first-class laser equipments is the enternal pursuit of jiaoxi laser
Thank you for your time browsing our site.
If you have any problem in Bingyan laser marking machine,please write your requirements in message box here as belows ??? or call me directly. (whatsapp/WECHAT +86-18121238823),we are pleased to discuss your requirements.
