Home > Products > Industrial Pump > 3G horizontal three screw pump
3G horizontal three screw pump
- 1000 Unit / Units per Month
- Ningbo/Shanghai
- T/T Credit Card
You May Like
Product Details
| Brand Name | Associated | Place of Origin | Zhejiang, China | |
| Model Number | 3G | Application | Maritime | |
| Usage | Oil | Theory | Rotary Pump | |
| Standard or Nonstandard | Standard | Structure | Screw Pump | |
| Pressure | High Pressure |
Standard export carton/plywood case
Product Description

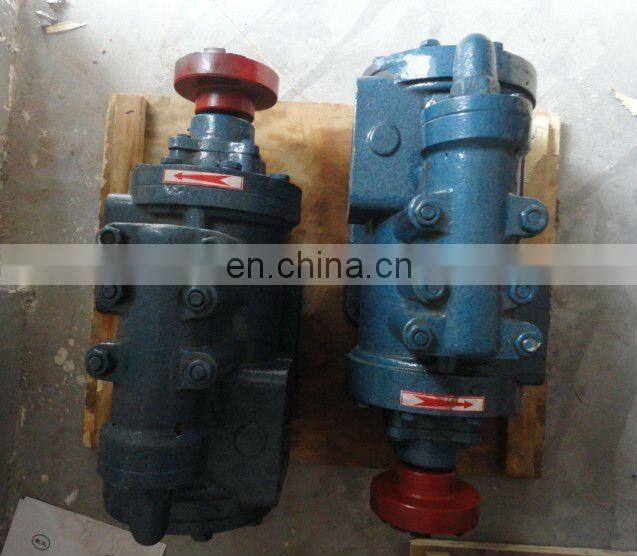

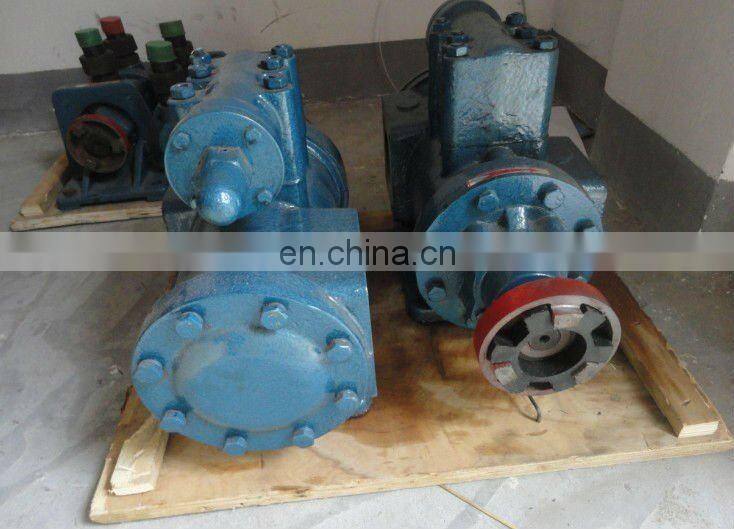

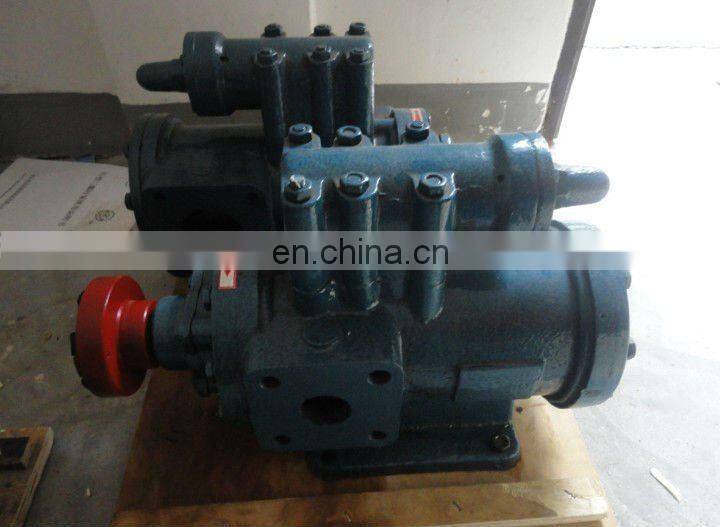

3G horizontal three screw pump
1. Rotative and progressive cubage pump
2. Precise product with simple and reasonable structure
3. Widely aplicable for fuel transfer, hydraulic engineering,maritime boat, petrochemical and other industry.
4. It applies to deliver clean and non-corrosive medium which has lubricating property at temperature beow150°C, with the viscosity of 5-760cSt,pump working pressure range from 0.6MPa to 2.5MPa and flow capacity range from 0.6-123m3/h.
5. Medium is delivered in axial direction continuously without agitation and pulsation.
6. Small vibration and low noise
7. High pressure and high efficiency
8. Simple structure,easy disassembly and assembly
9. Small volume and lighe weight
10. Slight wear and long life of the pump

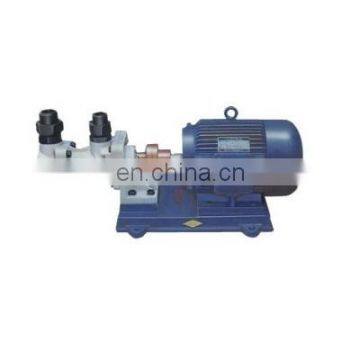

11.Structure:The pumps are sealed generally by mechanical seal and driven by the motor through the claw coupling.
12. Material: The driving and driven screw 16MnCrS5,40Cr,45,38CrMoALA Pump casing: HT200,QT450-10,ZCuSn10Pl,ZG270-500
12. Very competitive price
13. 1 year of warranty
14. Example of pump model
Eg:3G25×4-46
3G:three screw pump
25:out-side dizmeter of the driving screw 25mm
4:potch number of the screw
46:46° pitch angle of the screw
R:heavy fuel oil
r:light fuel oil
W:high temperature heated oil
N:high visc oil
A:code of design improvement
S:double suction
Technical Specifications
Series | Main application | Performancescope | |
Capacity m3/h | Pre MPa | ||
3G | Lub oil visc3-20oE;temp≤80°C | 0.6-570 | 2.5 |
3GR | Heavy feul lil visc3-50oE;temp≤120°C | 0.6-570 | 2.5 |
3Gr | Light feul oil visc1.2-5oE;temp≤120°C | 0.6-570 | 1.6 |
3GW | High temp feul heated oil;temp≤150°C | 0.6-363 | 1.6 |
3GN | High visc oil 100oE;temp≤80°C | 0.6-636 | 2.5 |
