Vertical Installation Magnet Stop Brass Mult Jet Water Flow Meter DN15
- SHANG HAI
- T/T Credit Card
You May Like
-
Plastic Body Zero Error Vane Wheel Multi Jet Water Meter for South Africa
-
1 Inch Brass Body Multi Jet Cold Mechanical Water Meter Manufacture
-
Supply Nylon Body Multi Jet 2 Inch Mechanical Water Flow Meter
-
High Accuracy Brass Cold Multi Jet Flow Meter Water With Inleter Strainer
-
Superior Quality Mechanical Multi Jet Dry Type Cast Iron Water Meters
-
Different Types Brass Body MJ Water Meter List Manufacture
Product Details
| Brand Name | SH-MECH | Place of Origin | Jiangsu, China | |
| Model Number | LXSG |
CARTON OR WOODEN
Product Description

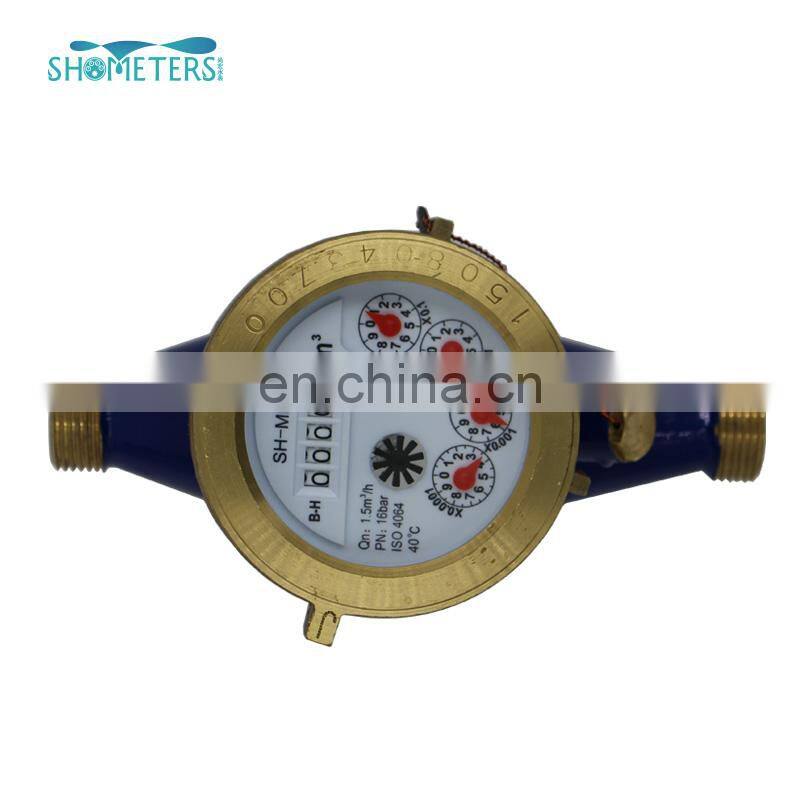

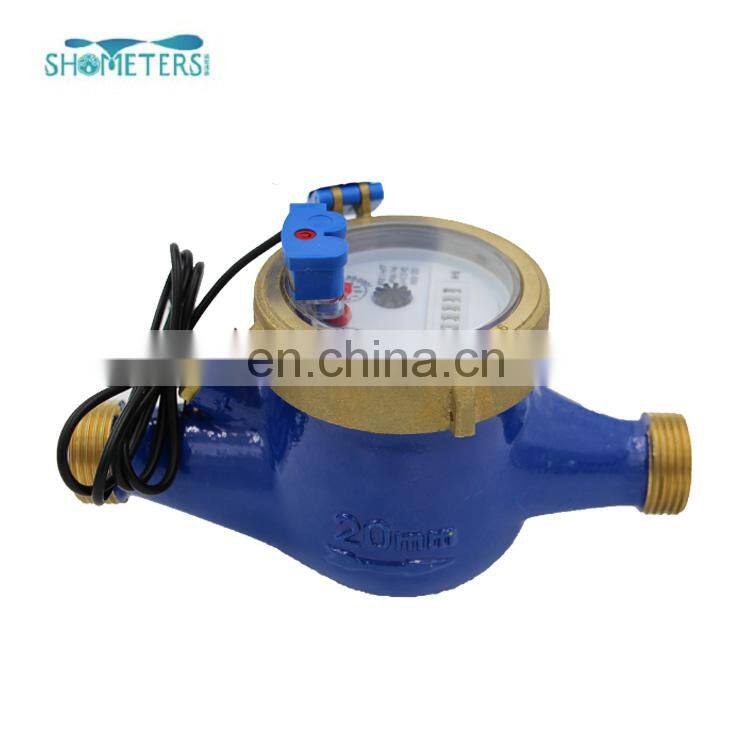

vertical installation magnet stop Brass Mult jet water flow meter DN15
Product details:
TYPE:

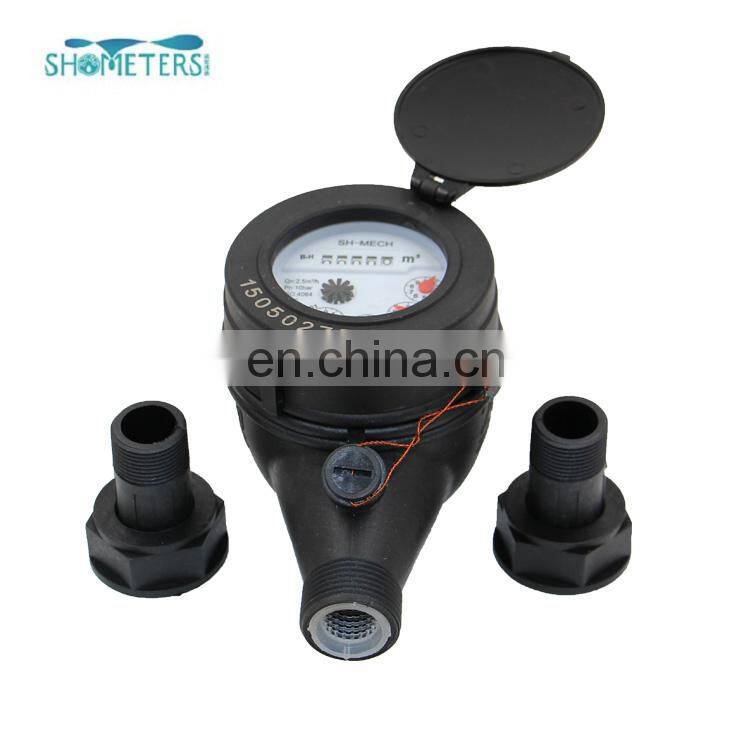

Brass body:15mm - 50mm (1/2"-2") Plastic body:15mm - 50mm (1/2"-2")
cast Iron body:15mm - 50mm (1/2"-2") SS body:15mm - 50mm (1/2"-2")
APPLICATION:
--Measuring the total volume of cold portable water passing through the pipeline
Features
· Magnetic Drive, Lower transmission resistance.
· Magnetic shield, for external magnetic field protection.
· Sealed dry register ensures long time clear reading.
· External regulating device.
Accressories: 2pcs coupling, 2pcs coupling nuts and 2pcs washers.

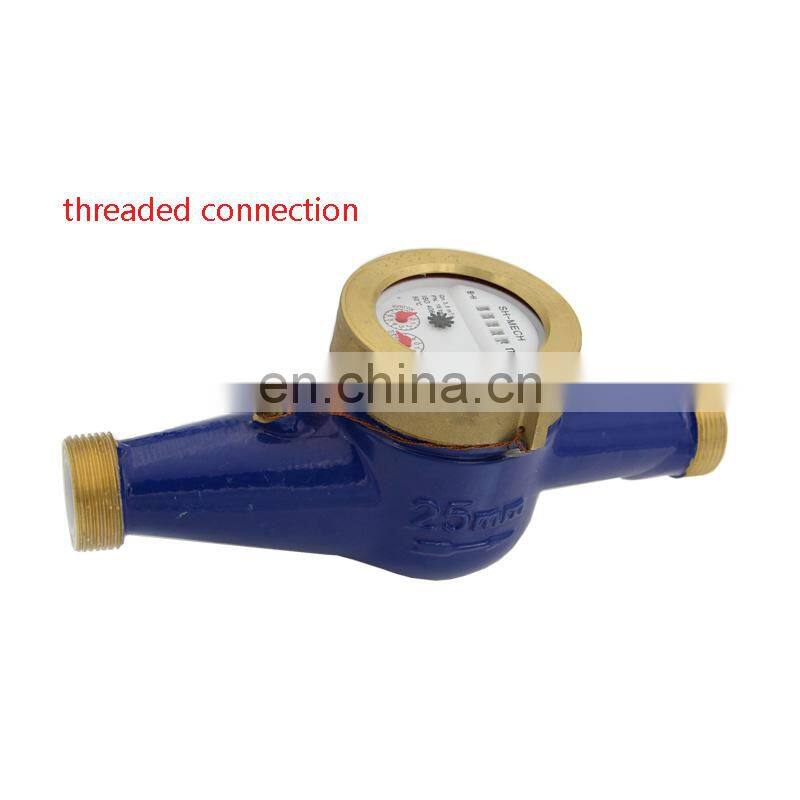

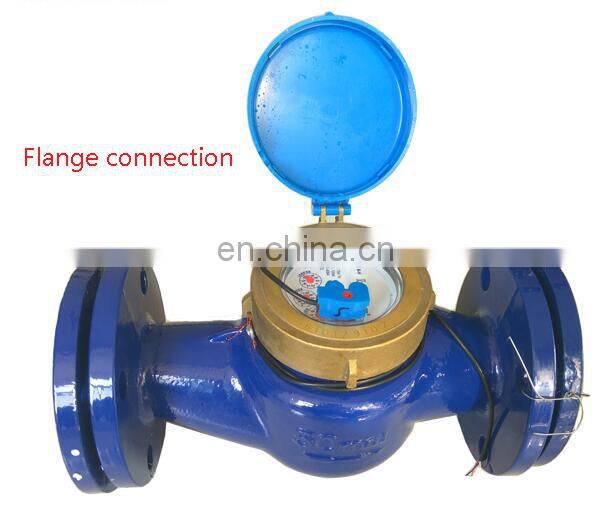

Two kinds of connections
Working condition
Water temperature: 0.1℃~40℃ for cold water meter .
0.1℃~90℃ for hot water meter.
Water pressure : ≤1.0Mpa or1.6Mpa

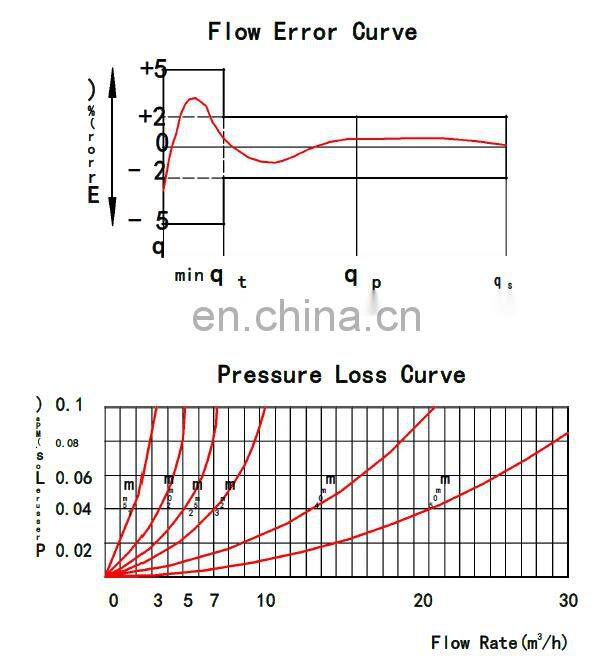

Maximum permissible error
(1) in the lower zone from qmininclusive up to but excluding qt is ±5%.
(2) in the upper zone from qtinclusive up to and including qs is ±2%:
Hot water meter ±3%

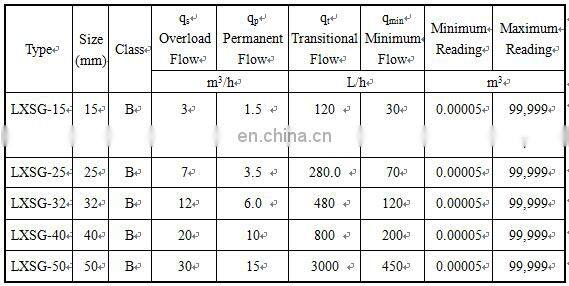

Specfications

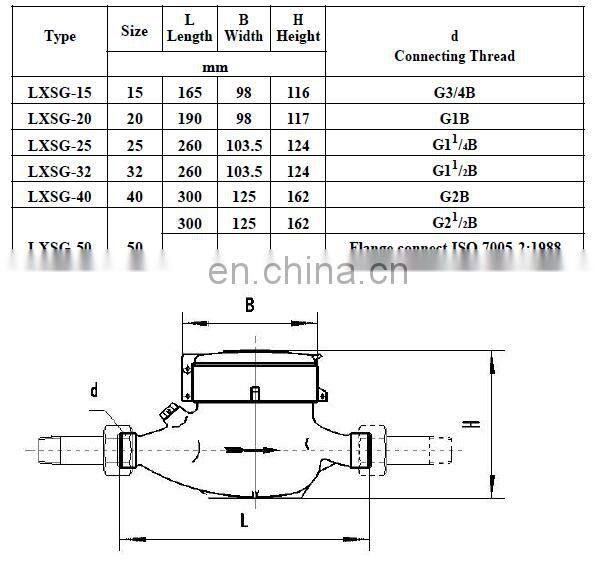

Dimensions
Packaging Detail: Pallets without fumigation or wooden box
Delivery Detail: 30-45 days after received deposit payment
Company Information:
Our company has own factory. Its business covers different types water meters for domestic, agricultural and industrial services,
Complying with the standard ISO 4064, such as:
Multi-jet type,
Single- jet type,
Volumetric type,
Woltman type,
Prepaid IC card type.
