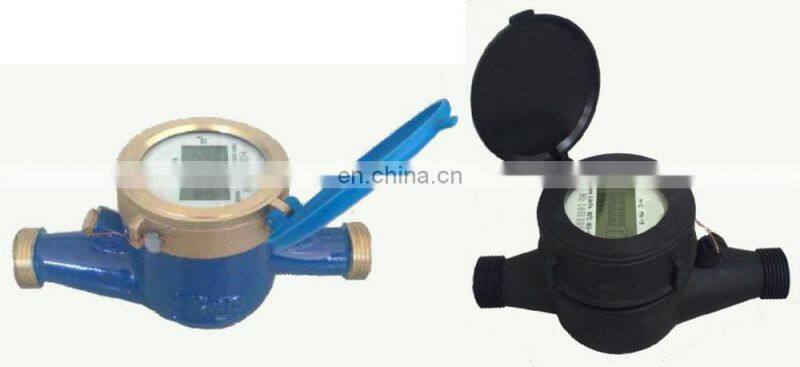

M-BUS Transmit Plastic Multi Jet Type Complete Electronical Water Flow Meter

Function

1. Whole water meter has only one movable part of impeller, it greatly reduces mechanical wear and prolongs the working life.

2.Increase much of the sensitivity of measurement, solve the problem of small flow measurement of mechanical water meter, range ratio reaches R200, range ratio of some diameters can be made larger.

3.Optimized error curve of water meter by piecewise linear , measurement accuracy is more high.

4.Reading display of digital LCD , indicate accurate information correctly

5.No magnetic design of whole water meter, avoid magnetic-field interference

6. Prompt and accurate measurement of the retrorse water flow

7. Display function of instantaneous flow, may be calibrated on-site

8. Modular design, easy to install and maintain

9. Automatic processing different price of using water

10.Combine with valve , realize the function of prepaid and remote control

11. Automatic storage of historical data of using water.

12.Output Model: M-BUSMOD-MUSRS485.

13. Remote diagnosis running status

14. Automatically upload data on specified date

15. Protection grade: IP68.

Technical Parameters:

Quiescent current: 6μA

Dynamic working current: 9μA

Communication working current: 500μA

Continuous working time: 6 years, 70% of remaining power

Power supply: 3.6V

Working temperature: -10~50℃

Storage temperature: -10~60℃

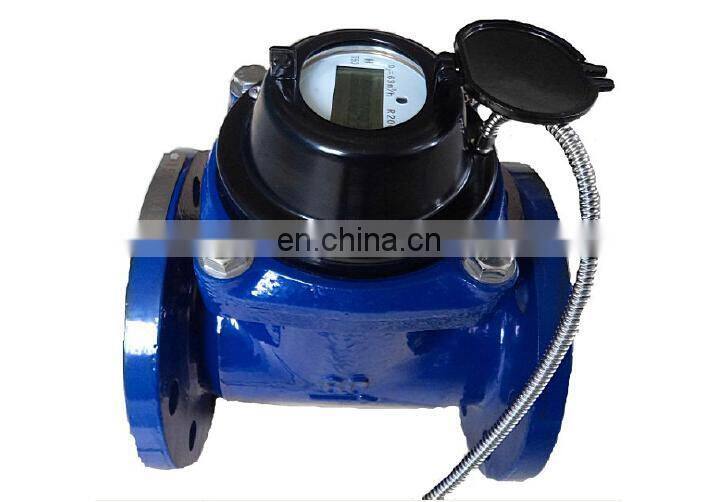

ONE:   Flange end woltman type water meters:

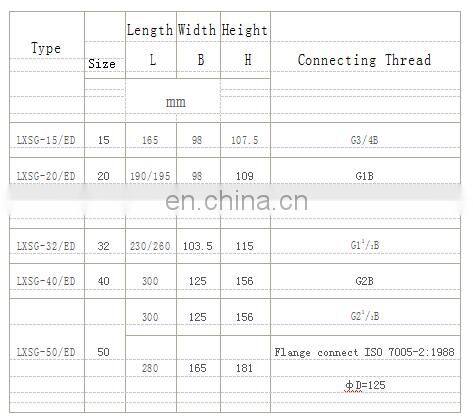

TWO: Thread end type

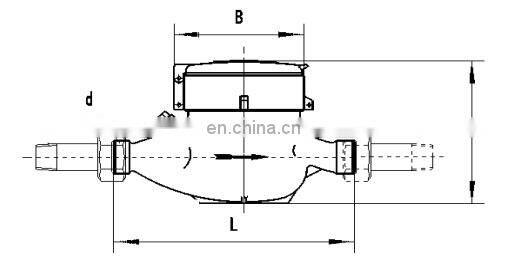

Demensions

Packaging Detail: Pallets without fumigation or wooden box

Company Information:

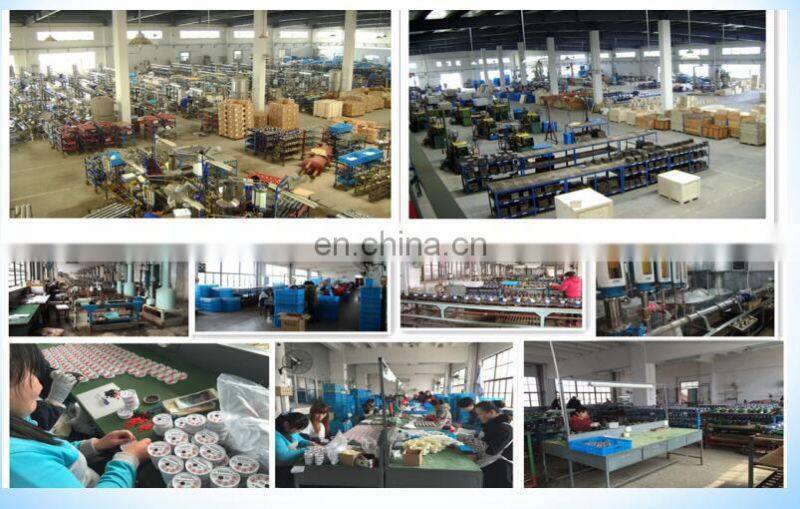

Our factory build up since 1966, with more than 50 years experience in the line for water meter technology and manufacture. We provide OEM services for many famous brand, from German and Italy, for example, Zenner and B Meters. We also export the mechanism and spare parts for many countries, like Egypt, Turkey and so on. So we have enough confidence to believe that our product can meet with your request.

Warranty
  All meters will be guaranteed against defects in workmanship and materials for a period of one (1) year from the date
of acceptance. Defective meters or parts discovered within this period shall be replaced without charge upon return
to the SH-MECH Meters.

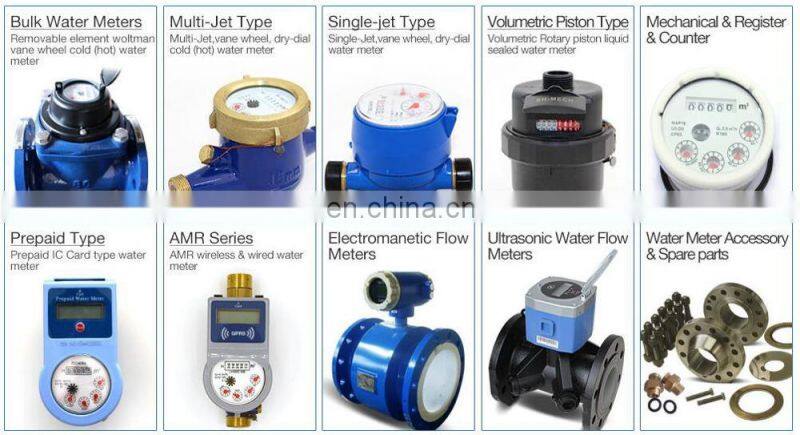

Technical data conform to international standard ISO 4064, and we have more water meter types,such as:
