High Head Stainless Steel Deep Well Submersible Screw Pump
- Ningbo Port
- T/T Credit Card
You May Like
-
High Head Multistage Deep Well ac Electric Submersible Water Pumps
-
Home Use Oil Filled Electric Water Pump Price Philippines
-
STM Series Head 100 Meter 1.5 Inches Submersible Pump With Float Switch
-
Plastic Impeller Multistage Centrifugal Borehole Deep Well Water Pump
-
100 Meter Head Electrical Shallow Deep Well Submersible Water Pump
-
High Pressure Stainless Steel 220v 380 Volt Well Water Booster Pump
Product Details
| Brand Name | BAQIU | Place of Origin | Zhejiang, China | |
| Model Number | 4"STM8 | Application | Submersible | |
| Power | Electric | |||
| Usage | Water | Theory | Centrifugal Pump | |
| Standard or Nonstandard | Standard | Structure | Multistage Pump | |
| Pressure | High Pressure |
Product Description

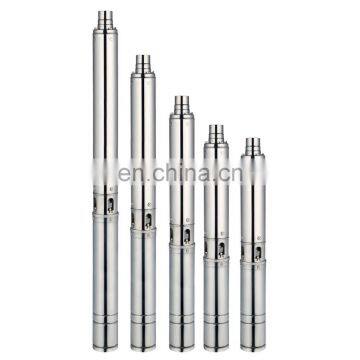

high head stainless steel deep well submersible screw pump
Fields of Application
*For water supply from wells or reservoir
*For domestic use, for civil and industrial applications
*For garden use and irrigation
Technical Date
*Suitable fluids:Clear, free from solid or abrasive substances
Chemically neutral and close to the characteristics of water
*Speed range: 2850rpm
*Fluid temperature range: -10℃-40℃
*ing pressure: 40bar
*Ambient temperature permissible up to 40℃
| MODEL | POWER | DELIVERY n≈2850L/min | ||||||||||||
1- 220v/240v | 2- 380v/415v | kw | hp | m3/h | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6 | 7.2 | 8.4 | 9.6 | 10.8 |
| L/min | 0 | 20 | 40 | 60 | 80 | 100 | 120 | 140 | 160 | 180 | ||||
| 4STM8/5 | 4ST8/5 | 0.55 | 0.75 | Head | 34 | 33 | 32 | 30 | 29 | 26 | 23 | 19 | 14 | 7 |
| 4STM8/7 | 4ST8/7 | 0.75 | 1.1 | 48 | 46 | 44 | 42 | 40 | 37 | 33 | 27 | 19 | 10 | |
| 4STM8/9 | 4ST8/9 | 1.1 | 1.5 | 61 | 59 | 57 | 54 | 51 | 48 | 42 | 35 | 25 | 13 | |
| 4STM8/11 | 4ST8/11 | 1.5 | 2 | 75 | 72 | 70 | 67 | 63 | 58 | 52 | 42 | 30 | 17 | |
| 4STM8/14 | 4ST8/14 | 2.2 | 3 | 96 | 92 | 89 | 85 | 80 | 74 | 66 | 54 | 38 | 21 | |
| 4STM8/16 | 4ST8/16 | 2.2 | 3 | 109 | 105 | 101 | 97 | 91 | 82 | 75 | 62 | 44 | 24 | |
| - | 4ST8/20 | 3 | 4 | 137 | 132 | 127 | 121 | 114 | 106 | 94 | 77 | 55 | 30 | |
| - | 4ST8/24 | 4 | 5.5 | 164 | 158 | 152 | 145 | 137 | 128 | 113 | 92 | 66 | 36 | |
| - | 4ST8/28 | 5.5 | 7.5 | 191 | 184 | 177 | 169 | 160 | 148 | 132 | 108 | 77 | 42 | |
| - | 4ST8/32 | 5.5 | 7.5 | 218 | 210 | 202 | 194 | 183 | 170 | 150 | 123 | 88 | 48 | |
| - | 4ST8/36 | 7.5 | 10 | 246 | 237 | 228 | 218 | 205 | 191 | 169 | 139 | 99 | 54 | |
| - | 4ST8/40 | 7.5 | 10 | 273 | 263 | 253 | 242 | 228 | 212 | 188 | 154 | 110 | 60 |
Taizhou BAQIU Electrical and Mechanical Co.,LTD, which is located in the hometown of chinese water pumps-Daxi,Wenling China, is integratd manufactural factory.
Our major products are all kinds of water pumps.Based on excellent products and good reputation, we have won favorable views from customers both at home and aboard.
Our products are well sold in more than twenty provinces and cities in China, and exported to America, Europe, Australia and Southeast Asia etc.
Q:Are you a factory or a trading company?
A: Yes, we are water pump manufacturer.
Q: What is your MOQ of this model?
A: MOQ are 100PCS, can offer trial sample order is also OK.
Q: What is the payment terms of our factory?
A: 30%T/T, Balance against the copy of bill of lading.
Q: How many days for 1 container production?
A: 30days after receiving deposit,40days in very busy season.
