Home > Products > Self-Priming Pump > AUTOMATIC Booster Pump Tank Pressure Water Pump 24L

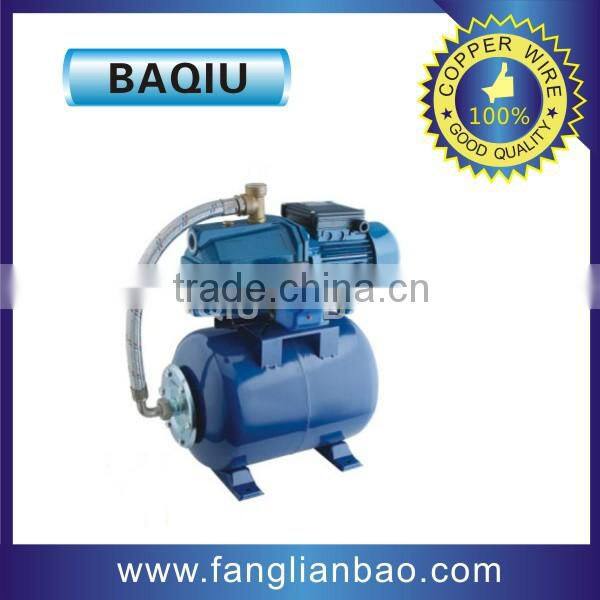

AUTOMATIC Booster Pump Tank Pressure Water Pump 24L
US$ 25 - 40
/ Piece
100 Pieces(Min. Order)
- NINGBO
- T/T Credit Card
You May Like
-
JET Series Electric Self Powered Water Pumps With Pressure Controller
-
2017 New Reliable Quality Automatic Water Pump 2.5hp
-
Factory Hot Sales Electric Vortex Peripheral Water Pump for Sale
-
Manufacturer Supplier Field Irrigation Submersible Agriculture Water Pumps 200
-
Finest Price Manufacture Lower Price Jet Ski Pump
-
China Water Pump Price of JET-L Series Self Priming Jet Water Pump
Product Details
| Brand Name | BAQIU | Place of Origin | Zhejiang, China | |
| Model Number | Pump | |||
| Power | Electric | |||
| Usage | Water | Theory | Jet Pump | |
| Standard or Nonstandard | Standard | Structure | Single-stage Pump | |
| Pressure | High Pressure |
Product Description
| AUTOMATIC booster pump tank pressure water pump 24L |
| |
| Model | Power | Max. Flow (L/min) | Inlet/Outlet (inch) | Tank Capacity | Tank Located | Suggested Pressure Setting Bar | Dim(mm) | G.W(kg) |
| kw | ||||||||
| AUQB60 | 0.37 | 30 | 1''x1'' | 24L | Horizontal | 1.2-2.5 | 525x300x550 | 11.5 |
| AUDP255 | 0.55 | 45 | 1''x1'' | 24L | Horizontal | 1.8-3 | 500x300x530 | 21.4 |
| AUDP505 | 1.1 | 100 | 1.25''x1''x1'' | 24L | Horizontal | 1.8-3 | 600x345x530 | 25 |
| AUSJET60L | 0.46 | 40 | 1''x1'' | 24L | Horizontal | 1.2-2.5 | 500x300x530 | 19.4 |
| AUSJET80L | 0.55 | 47 | 1''x1'' | 24L | Horizontal | 1.8-3 | 500x300x530 | 23.4 |
| AUSJET100L | 0.75 | 55 | 1''x1'' | 24L | Horizontal | 1.8-3 | 500x300x530 | 23.4 |
| 1.Pump material |
| Pump Body: Cast Iron |
| Impeller: Brass/Aluminum(DP-505:two impeller |
| Motor bracket:Aluminum |
| Shaft with rotor:Stainless Steel or Cs45# |
| Mechanical Seal: Ceramic-Graphite |
| Copper winding |
| 2.Pump motor |
| 2-pole induction motor:50Hz/60Hz |
| Insulation:Class B |
| Protection:IP44 |
| With capacitor and thermal overload protection |
| 3. Operation Conditions |
| Suction head up to 9M |
| Liquid temperature up to 40C |
| Ambient temperature up to 40C |
| Max.Pressure:6Bar |
| 4.Application |
| Clean water without abrasive particles |
| Domestic use,irrigation of gardens and allotments etc. |
| High head |
| Suitable for water lifting,distribution with small or medium pressure sets. |
| Installed in enclosed places,or at least protected against inclement weather. |

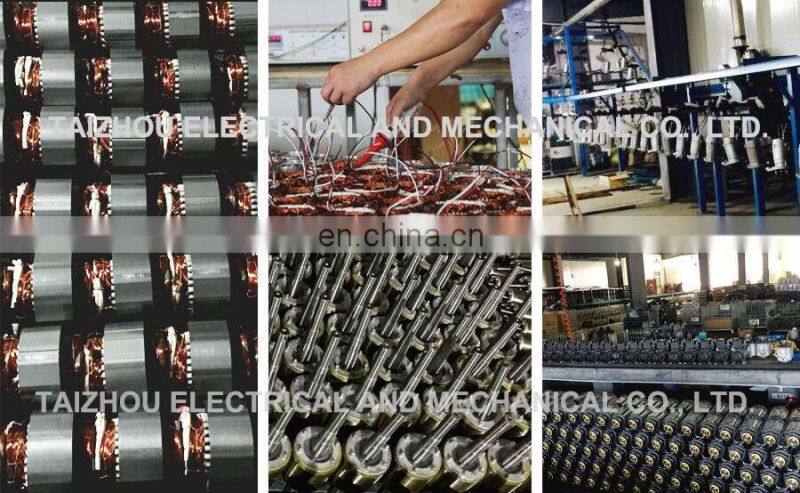

| Work shop area | |||||||||
|
| Brief Introduction |
1)Taizhou BAQIU electrical and mechanical Co.,LTD which located in the home two of chinese water-Daxi,Wenling China.We are integratd manufactural factory. |
2)Our major productions are all kinds of water pumps.Based on excellent products and good reputation,they have won favorable views from customers both at home and aboard and passed some domestric. |
3)Our products are well sold in more than twenty province and cities in China,and exported to America,Europe, Australia and Southeast Asia etc. |
4)Quality always stands the first and honest is our concept.We provide reasonable price,punctuality and satisfying service.We sincerely welcome all the friends from the world to join in us and develop together. |
