Y2 Series 3 Phase Motor Manufacturers Motors

FOB Price

US$ 45 - 3,050 / Piece

80 Pieces(Min. Order)

Port FUZHOU
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	OMEIK MOTOR	Place of Origin	Fujian, China
Model Number	Induction motor	Type	Induction Motor
Output Power	0.75KW/1HP	Frequency	50HZ/60HZ
Efficiency	IE 1
Certification	CCC, CE, ROHS	Phase	Single-phase
Protect Feature	Totally Enclosed

Product Description

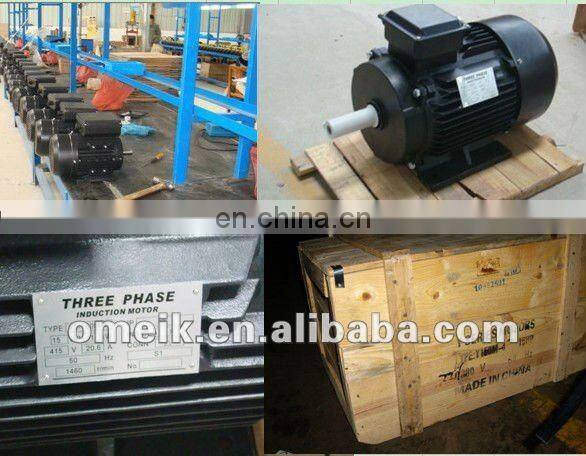

Y2 series 3 phase motor manufacturers motors Description:

1. Y2 Series 3 phase motor manufacturers motors is speciaIly designed for European market, whose terminal box is Iocated on the top of motor.

2. Electric motor has a very compact structure and attractive appearance, the sizes and mounting dimensions are all in conformity with lEC standard.

3. this kinds of electric motor has some good feature, such as high efficiency, energy- saving. High starting torque and easy maintenance etc.

Different Mounting

Technical date at 50 Hz

Model	Power		FULL LOAD					Locked rotor torque Rated torque	Locked rotor current rated current	Max torque Rated torque
	Power		Voltage (V)	Current (A)	Speed (r.p.m)	Eff (%)	Power factor
	KW	HP	Voltage (V)	Current (A)	Speed (r.p.m)	Eff (%)	Power factor
Y2-801-2	0.75	1	220/380	3.1/1.8	2890	75	0.83	2.2	2.2	7
Y2-802-2	1.1	1.5	220/380	4.3/2.5	2900	77	0.84	2.2	2.2	7
Y2-90S-2	1.5	2	220/380	5.9/3.4	2900	79	0.84	2.2	2.2	7
Y2-90L-2	2.2	3	220/380	8.3/4.8	2930	81	0.85	2.2	2.2	7
Y2-100L-2	3	4	220/380	11.1/6.4	2930	83	0.87	2.2	2.2	7
Y2-112M-2	4	5.5	380/660	4.7/8.2	2930	85	0.88	2.2	2.2	8
Y2-132S1-2	5.5	7.5	380/660	6.4/11.1	2940	86	0.88	2.2	2.2	8
Y2-132S2-2	7.5	10	380/660	8.6/15	2950	87	0.88	2.2	2.2	8
Y2-160M1-2	11	15	380/660	12.6/21.8	2950	88	0.88	2	2.2	8
Y2-160M2-2	15	20	380/660	16.9/29.4	2970	89	0.89	2	2.2	8
Y2-160L-2	18.5	25	380/660	20.5/35.5	2970	90	0.9	2	2.2	8
Y2-180M-2	22	30	380/660	24.3/42.2	2970	90.5	0.9	2	2.2	8
Y2-200L1-2	30	40	380/660	32.8/56.9	2970	91.2	0.9	2	2.2	8
Y2-200L2-2	37	50	380/660	40.3/69.8	2980	92	0.9	2	2.2	8
Y2-225M-2	45	60	380/660	48.4/83.9	2980	92.3	0.9	1.8	2.2	8
Y2-250M-2	55	75	380/660	59.4/103	2980	92.5	0.9	1.8	2.2	7
Y2-801-4	0.55	0.75	220/380	2.6/1.5	1400	71	0.75	2.2	2.2	6.5
Y2-802-4	0.75	1	220/380	3.5/2	1400	73	0.77	2.2	2.2	6.5
Y2-90S-4	1.1	1.5	220/380	4.7/2.7	1400	75	0.77	2.2	2.2	6.5
Y2-90L-4	1.5	2	220/380	6.3/3.6	1400	78	0.79	2.2	2.2	6.5
Y2-100L1-4	2.2	3	220/380	8.7/5	1420	80	0.81	2.2	2.2	7
Y2-100L2-4	3	4	220/380	11.8/6.8	1420	82	0.82	2.2	2.2	7
Y2-112M-4	4	5.5	380/660	5.1/8.7	1440	84	0.82	2.2	2.2	7
Y2-132S-4	5.5	7.5	380/660	6.7/11.6	1440	85	0.83	2.2	2.2	7
Y2-132M-4	7.5	10	380/660	8.9/15.4	1440	87	0.84	2	2.2	7
Y2-160M-4	11	15	380/660	13/22.6	1460	88	0.85	2	2.2	7
Y2-160L-4	15	20	380/660	17.5/30.3	1460	89	0.85	2	2.2	7
Y2-180M-4	18.5	25	380/660	20.7/36	1470	90.5	0.85	2.2	2.2	7.5
Y2-180L-4	22	30	380/660	24.5/42.5	1470	91	0.85	2.2	2.2	7.5
Y2-200L-4	30	40	380/660	32.8/56.8	1470	92	0.86	2.2	2.2	7.5
Y2-225S-4	37	50	380/660	40.6/70.4	1480	92.5	0.87	2.2	2.2	7.5
Y2-225M-4	45	60	380/660	48.6/84.2	1480	92.8	0.87	2.2	2.2	7.5
Y2-250M-4	55	75	380/660	59.5/103	1480	93	0.89	2.2	2.2	7
Y2-801-6	0.37	1/2	220/380	2.2/1.3	900	62	0.7	2	2.2	5
Y2-802-6	0.55	3/4	220/380	3.1/1.8	900	65	0.72	2	2.2	5
Y2-90S-6	0.75	1	220/380	3.9/2.3	910	69	0.72	2	2.2	5.5
Y2-90L-6	1.1	1.5	220/380	5.4/3.1	910	72	0.73	2	2.2	5.5
Y2-100L-6	1.5	2	220/380	6.8/3.9	940	76	0.76	2	2.2	5.5
Y2-112M-6	2.2	3	220/380	9.7/5.6	940	79	0.76	2	2.2	6.5
Y2-132S-6	3	4	220/380	12.5/7.2	960	81	0.76	2	2.2	6.5
Y2-132M1-6	4	5.5	380/660	5.4/9.4	960	82	0.76	2	2.2	6.5
Y2-132M2-6	5.5	7.5	380/660	9.3/12.6	960	84	0.77	2	2	6.5
Y2-160M-6	7.5	10	380/660	9.8/17	970	86	0.8	2	2	6.5
Y2-160L-6	11	15	380/660	14.2/24.6	970	87.5	0.79	2	2	6.5
Y2-180L-6	15	20	380/660	18.1/31.4	970	89	0.81	2	2	7
Y2-200L1-6	18.5	25	380/660	21.8/37.7	970	90	0.81	2	2	7
Y2-200L2-6	22	30	380/660	25.7/44.6	970	90	0.83	2	2	7
Y2-225M-6	30	40	380/660	34.3/59.5	980	91.5	0.84	2	2.1	7
Y2-250M-6	37	50	380/660	41.6/72	980	92	0.86	2	2.1	7
Y2-801-8	0.18	1/4	220/380	1.5/0.88	680	51	0.61	1.8	1.9	3.3
Y2-802-8	0.25	1/3	220/380	1.99/1.1	680	54	0.61	1.8	1.9	3.3
Y2-90S-8	0.37	1/2	220/380	2.6/1.5	680	62	0.61	1.8	1.9	4
Y2-90L-8	0.55	3/4	220/380	3.8/2.2	700	63	0.61	1.8	2	4
Y2-100L1-8	0.75	1	220/380	4.2/2.4	700	71	0.67	1.8	2	4
Y2-100L2-8	1.1	1.5	220/380	5.7/3.3	700	73	0.69	1.8	2	5
Y2-112M-8	1.5	2	220/380	7.8/4.5	700	75	0.68	1.8	2	5
Y2-132S-8	2.2	3	220/380	10.1/5.8	710	78	0.71	2	2	6
Y2-132M-8	3	4	220/380	13.4/7.7	710	79	0.73	2	2	6
Y2-160M1-8	4	5.5	380/660	5.7/9.9	720	81	0.73	2	2	6
Y2-160M2-8	5.5	7.5	380/660	7.6/13.3	720	83	0.74	2	2	6
Y2-160L-8	7.5	10	380/660	10.2/17.7	720	85.5	0.75	2	2	6
Y2-180L-8	11	15	380/660	143.2/248	730	87.5	0.76	2	2	6.5
Y2-200L-8	15	20	380/660	19.6/34.1	730	88	0.76	2	2	6.5
Y2-225S-8	18.5	25	380/660	23.8/41.3	740	90	0.76	1.9	2	6.6
Y2-225M-8	22	30	380/660	27.5/47.6	740	90.5	0.78	1.9	2	6.6
Y2-250M-8	30	40	380/660	36.4/63	740	91	0.79	1.9	2	6.6
