Home > Products > Slurry Pump > 250m3/h 75kw Submersible Agitator Sand Pump
250m3/h 75kw Submersible Agitator Sand Pump
- Tianjin Shanghai Qingdao or as customer required
- T/T Credit Card
You May Like
Product Details
| Brand Name | Milestone | Place of Origin | Hebei, China | |
| Model Number | ZJQ | Application | Submersible | |
| Power | Electric | |||
| Theory | Centrifugal Pump | |||
| Standard or Nonstandard | Standard | Structure | Single-stage Pump | |
| Pressure | High Pressure |
Product Description

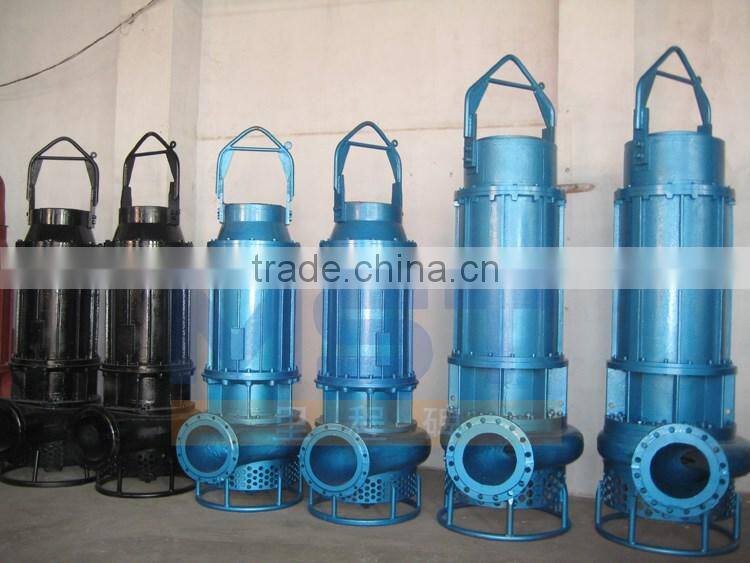

250m3/h 75kw Submersible Agitator Sand Pump
Descriptions

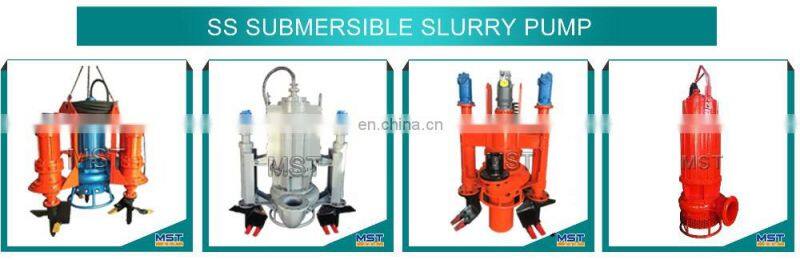

Submersible slurry pump are designed to handle a wide range of slurries and abrasive particles in submersible applications in mining and insustry.
Submersible agitator slurry pump are avaliable in 72 different models in sizes ranging from 80mm to 400mm(3.15-16 inches) discharge and are capable of flow rates from 23 to 2400 cubic meters per hour(100- 10560USGPM) and head up to 64 metres(210ft).
Submersible agitator slurry pump can pass solids up to 60mm(2.4inches) in diameter enabling them to transfer dense slurries with large abrasive particles.
| Item | Submersible slurry pump |
| Model | SS |
| Material | 27% Chrome White Iron, SS 304,SS 316, or cutomized |
| Color | Decided by user |
| Mode | Submersible |
| Impeller | single impeller |
| Drive | Direct coupling |
| Seal | Packing seal or mechanical seal |
| Speed | 1460r/min,980r/min |
| Theory | Centrifugal pump |
| Structure | Single stage pump |
| Usage | High density slurries with solids etc. |
| Power | Electric motor |
| Standard | ISO |
| Application | Mining. civil construction, industry, dredging |
| Outlet diameter | 3.15-16inches |
| Capacity | 22-2400 m3/h |
| Head | 8.6-70m |
| Power | 7.5-315kw |
| Warranty | 1year |
| Certificate | ISO9001 |
| OEM | Acceptable |
| Max Solids Dia | 2.4 inches |
Features of submersible slurry pump

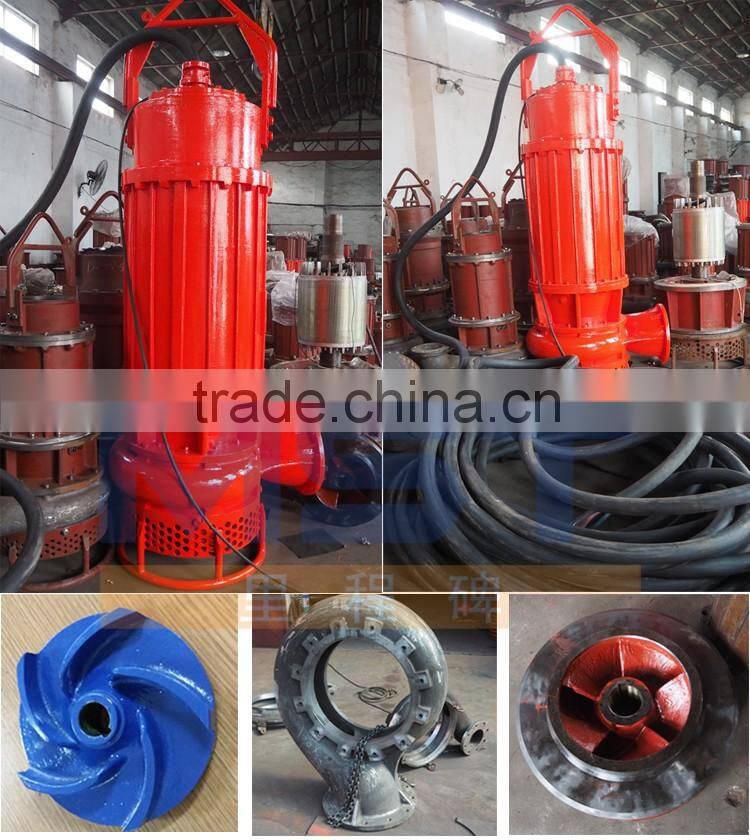

1.Wear parts are all constructed with abrasion resistant materials - chromium alloy; so pumps have better stability & longer service life.
2.Unique mechanical seal device can prevent the electric motor from high pressure water and impurities; thus high suction efficiency can be ensured.
3.In addition to the main impeller, a pair of agitation impeller is equipped to help break and mix the sludge.
4.Easy installation, operation and cost saving, since no additional vacuum pump or pump house is needed.
5.Professional technology support is provided during the whole process of the usage and maintenance.

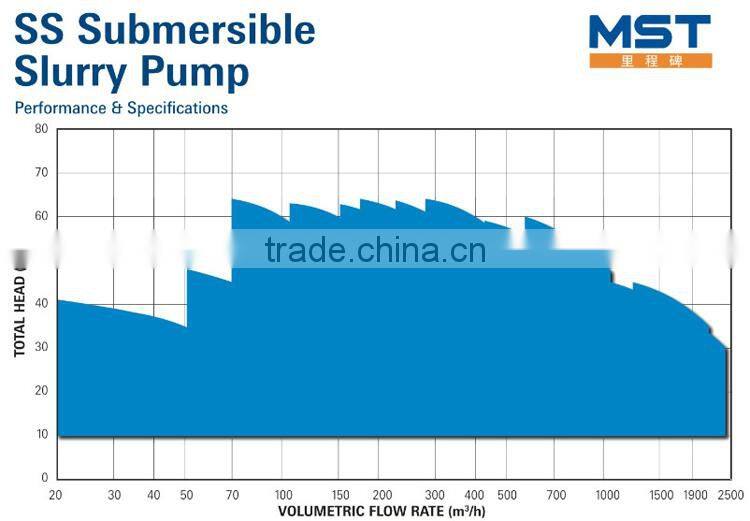

Performance curves
