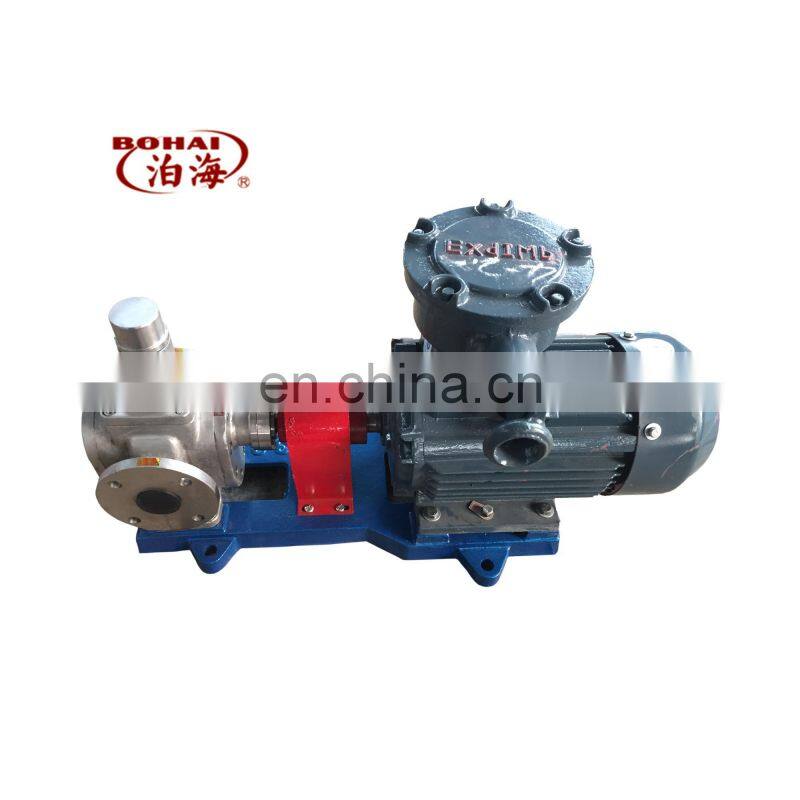

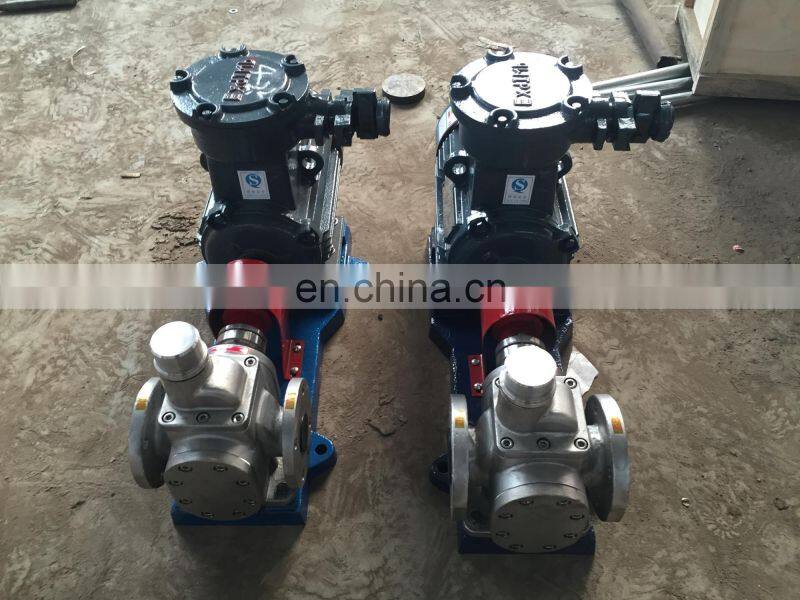

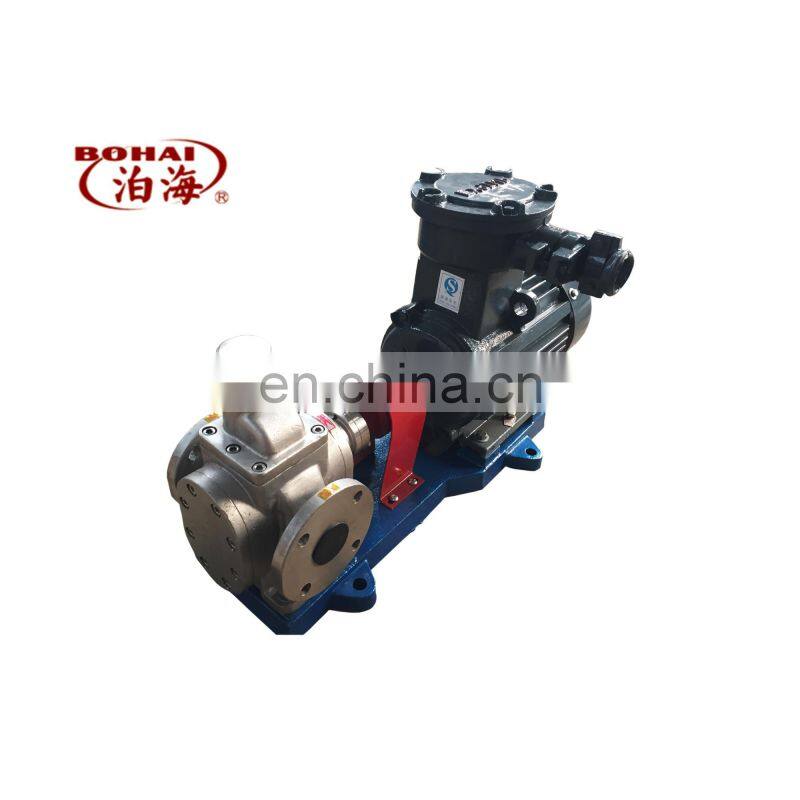

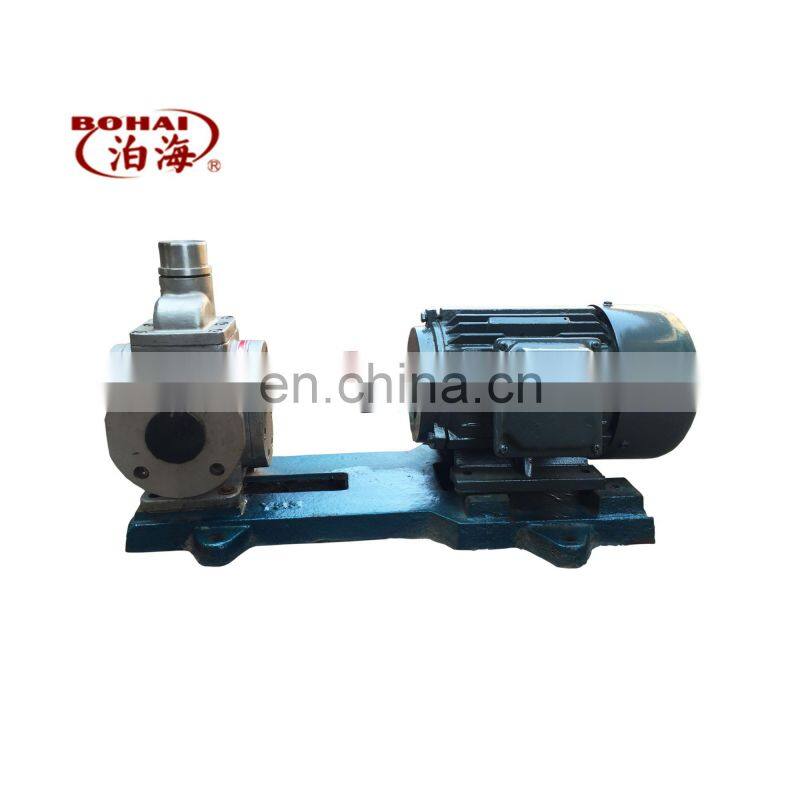

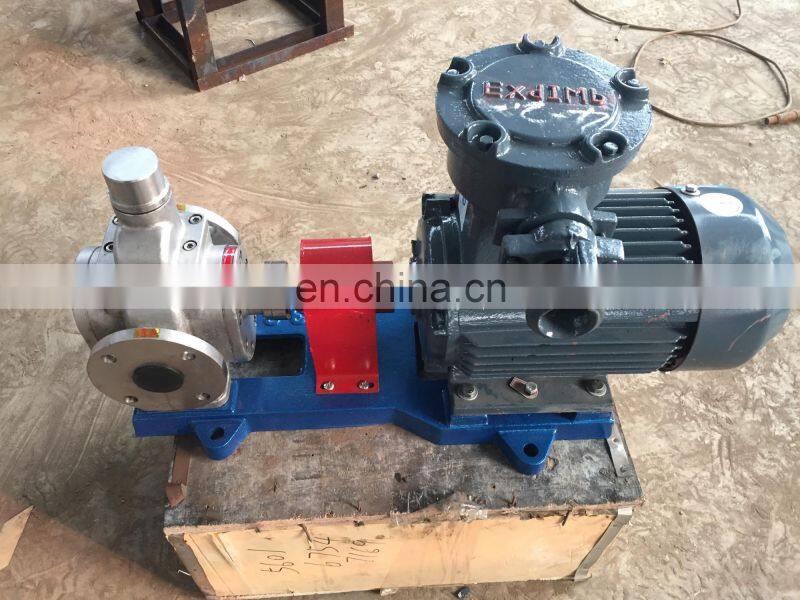

YCB Series Circular Arc Gear Oil Pump

                Gear pump--YCB series circular arc gear oil pump

Application Scope

It applies to delivering non-corrosive lubricating-oil or equivalent liquid without solid particles and fibres at temperature below 80℃ and with the viscosity of 5-1500cSt.

Application

1. It can give performance as transfer pump or booster in oil deliver system.

2. It can be also applied as fuel pump for delivery system, pressurization and injection in fuel supply system.

3. It can be also hydraulic pump supplying hydraulic power in hydraulic system;

4. In all industry fields it can be as lubricating pump.

Structure Features

YCB series circular gear pumps are mainly composed of gears, axles, pump body, pump cover, bearing sleeves and axle-end seals etc. The gears adopt the international advanced technology level in 90s——double circular teeth shape, which makes the gears less wear on gear surface, stable revolution, low noise, long service life and high efficiency, due to no sliding on the teeth during gear falling-in. This kind of pump has got rid of traditional design and come into a new decade in designing and application.

The pump is also designed with safety valve for protection against overload. The full return flow pressure of the safety valve is 1.5 times higher than the rated exhaust pressure of the pump. It can be also adjusted within the allowance of exhaust pressure range according to circumstances. But please note the safety valve can't be applied as pressure reducing valve for long time. You may install pressure reducing valve separately on pipe-line if needed.

There are two kinds of axle-end seals, mechanical seal and packing seal, which can be chosen according to the clients; requirement or application circumstance.

The direction of rotation is clockwise viewed from coupling end.

The direction of rotation is clockwise viewed from coupling end.

 Factory Direct Sales! More quantity, more discount!

Packing &Transportation

Company Information

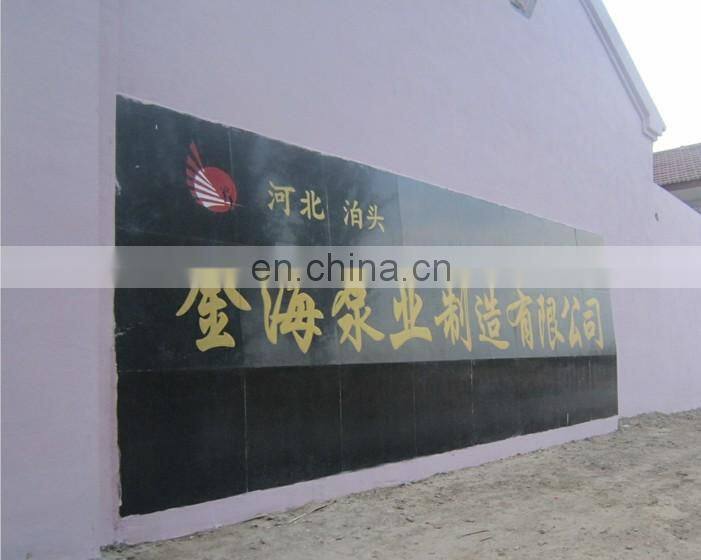

Our Company
