2bv5 7.5kw Pharmacy Plant Use Mechanical Seal Water Ring Vacuum Pump
- T/T Credit Card
You May Like
-
Upgraded 2sk Series 10hp Water Ring Distillation Vacuum Pump
-
2BE1 403 Vacuum Pump Water Ring in Russia Water Circulating Vacuum Pump
-
2BE1-405 Water Liquid Ring Vacuum Pump EVP Brand Vacuum Pump for Egg Tray Machine
-
2BE3 40 Vacuum Pump Liquid Ring Compressor EVP Liquid Ring Vacuum Pump
-
CL701 Cone Liquid Vacuum Pump In Paper Making Plant Liquid Ring Compressor
-
CL702 Cone Same to Nash CL Liquid Ring Vacuum Pump Paper Making Industry
Product Details
| Brand Name | EVP | Model Number | 2BV5-121 | |
| Power | Electric | |||
| Structure | Single-stage Pump | Pressure | Low Pressure |
Product Description

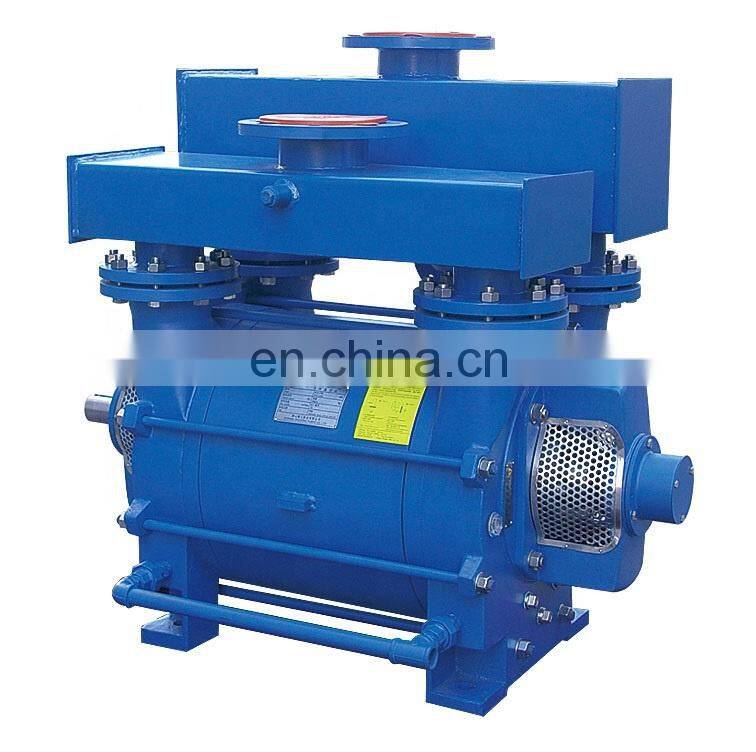

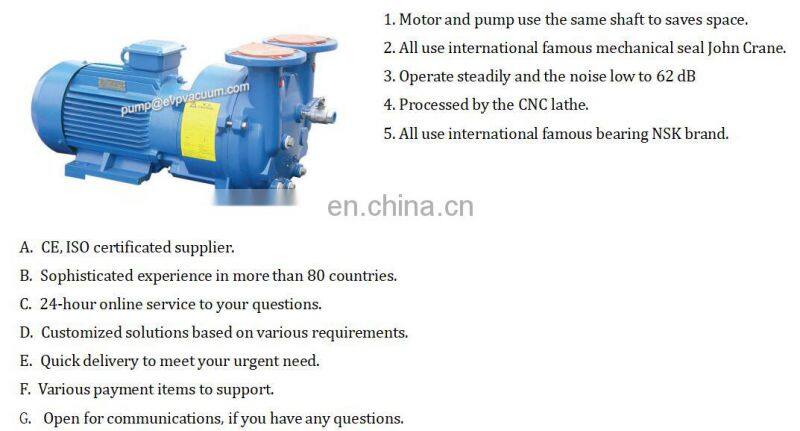

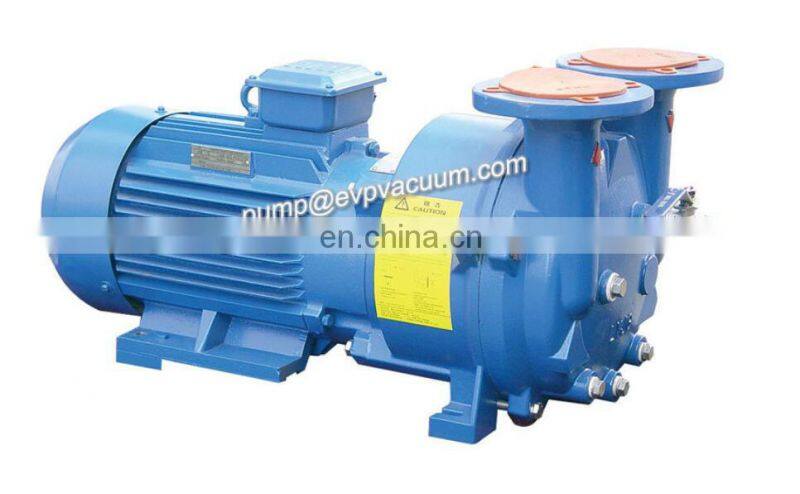

2bv5 7.5kw pharmacy plant use mechanical seal water ring vacuum pump
| INFORMATION OVERVIEW | |
| Basic information: 1) Model: EVP brand 2BV5-121 liquid ring vacuum pump 2) Ultimate vacuum pressure: 33 mbar (abs.) 3) Max suction capacity: 280m3/h @50hz, 336m3/h @60hz |
Packaging Details: Standard woonden case suitable for all countries Packing dimension: L x W x H= 950 x 500 x 550 mm Net weight / Gross weight: 148 kg / 168 kg | |
Certificates: ISO9001:2000 / SGS / CE Lead Time: Have many models in stock, if not, it is about 20 days when less than 5 units, about 35 days when less than 10 units. If urgent, please tell us. | More Items, please scan:
|
Click here for more information!
SPECIFICATIONS: 2BV Liquid Ring Vacuum Pump | |||||
Model |
Max.Suction capacity m³/h |
Inlet &outlet |
Feed water inlet |
Motor power kw 50Hz |
Pump speed r.p.m |
Operating liquid flow rate L/min |
Noise dB(A) |
Weight kg |
2BV2-060 | 27 | G1" | G3/8" | Y90S-2-0.81 | 2840 | 2.5 | 62 | 31 |
2BV2-061 | 52 | G1" | G3/8" | Y90S-2-1.45 | 2840 | 2.5 | 65 | 36 |
2BV2-070 | 80 | G1.5" | G3/8" | Y100L-2-2.35 | 2860 | 3 | 66 | 56 |
2BV2-071 | 110 | G1.5" | G3/8" | Y112M-2-3.85 | 2880 | 4.7 | 72 | 60 |
2BV5-110 | 165 | DN50 | G1/2" | Y112-4-4KW | 1440 | 7.2 | 63 | 105 |
2BV5-111 | 230 | DN50 | G1/2" | Y132-4-5.5KW | 1440 | 8.8 | 68 | 126 |
2BV5-121 | 280 | DN65 | G3/4" | Y132-4-7.5KW | 1440 | 11 | 69 | 149 |
2BV5-131 | 400 | DN65 | G3/4" | Y160-4-11KW | 1460 | 16 | 73 | 195 |
2BV5-161 | 500 | DN80 | G3/4" | Y180-6-15KW | 970 | 22 | 74 | 320 |
Click here for more information!

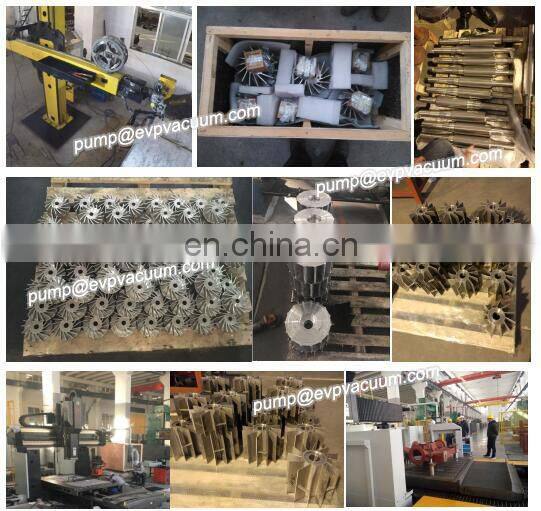

| QUALITY CONTROL |
Click here for more information!
| WHY CHOOSE US? |
Pump features + Company advantages
Customers' feedbacks
Some selling records
