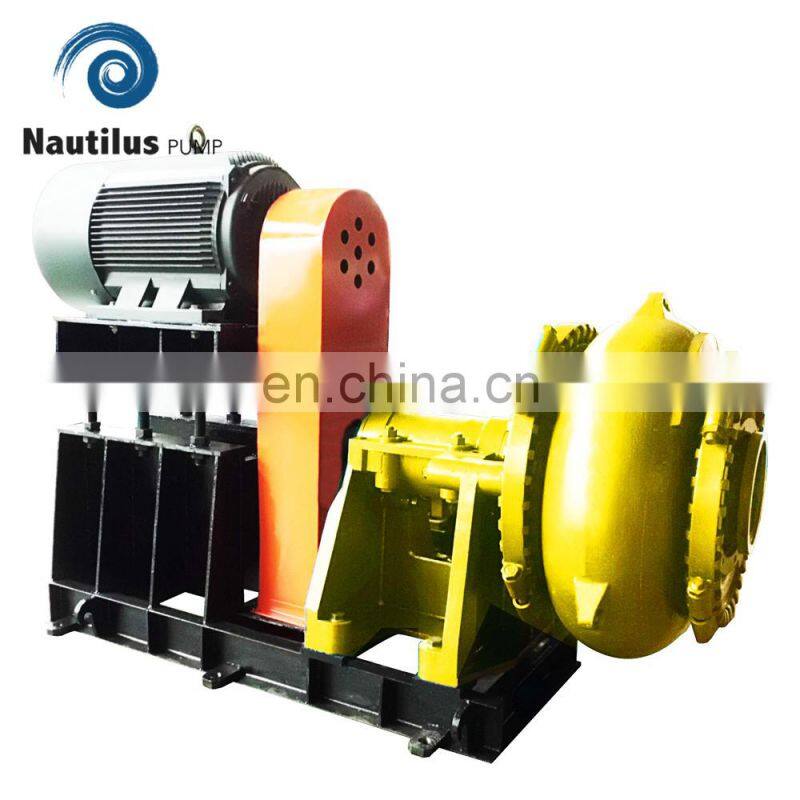

Heavy Duty Gold Mining Sand Dredge Pump
- Xin gang
- T/T Credit Card
You May Like
Product Details
| Brand Name | Nautilus Pump | Place of Origin | Hebei, China | |
| Model Number | 10X8NF-G | |||
| Power | Electric | |||
| Structure | Single-stage Pump |
Product Description
T series dredge pump is a kind of cantilevered single-stage centrifugal pump. It can be
equipped with diesel engines or electric motors driven directly. The wet parts are made
of anti-wear Cr alloy, including impeller, pump body , front plate and back plate.
Model List
| TYPE | Capacity | Head | Speed | Allowable Max.Solids size | Weight |
| 6x4ND-G | 36-252 m3/H | 3.5-51 m | 600-1400 r/min | 82 mm | 460 KG |
| 8X6NE-G | 137-580 m3/H | 10-48 m | 800-1400 r/min | 127 mm | 1120 KG |
| 10X8NF-G | 220-1000 m3/H | 13-50 m | 500-1000 r/min | 178 mm | 2250 KG |
| 12X10NG-G | 360-1520 m3/H | 11-58 m | 400-850 r/min | 220 mm | 4450 KG |
| 14X12NG-G | 500-3100 m3/H | 6-66 m | 300-700 r/min | 241 mm | 5400 KG |
| 16X14NG-G | 650-3610 m3/H | 9-48 m | 250-500 r/min | 254 mm | 12247KG |
Features
b) The impeller and liner are all made of high chrome alloy(Cr26) material with
features of anti-wear, anti-abrasive, high efficiency and long service life.
c) Gravel pump's bearing assembly use cylindrical structure, adjusting the space between impeller and front liner easily. They can be removed completely when
being repaired. Bearing assembly use grease lubrication.

Application
a) Ports, rivers, lakes and other dredging, dredging, removal of mud and so on;
b) The extraction of sand, gravel, etc., sea construction projects;
c) Iron ore, tailing, concentration and other mine slag, plaster and all the solution containing solid matter;
d) In metallurgy, steel and other industries used to absorb high concentrations of
tailing, slag and high temperature iron slag, iron and so on;
e) Pumping sand, gold and so on.


1. About Price
We always would like to updated the best price for our clients. Please contact with us if interested.
2. About Quality
We realised quality and service is now becoming more and more important. We shall keep our business going with clients with our best product quality and service. We care about quality more than others.
3. About Delivery
We shall arrange immediately after deposit payment received and make sure the production goes as planned. But we suggest that you confirm with us about delivery of your order in advance.
4. About Price Term
We prefer to do business with Trade Assurance Contract on Alibaba, although there are many avaiable terms such as "TT".
5. About Warranty
one year for pump, three month for spare parts.
