Home > Products > Belt filter press > Small Belt Filter Press For Mud Slurry Dewatering
Small Belt Filter Press For Mud Slurry Dewatering
- Shanghai
- T/T Credit Card
You May Like
-
Belt Machine Automatic Filter Press For Sewage Sludge Dewatering
-
Rotary Drum Thickening Sludge Belt Filter Press Equipment
-
Fully Automatic Rotary Drum Thickening Dewatering Machine Manufacturer
-
Stainless Steel Wastewater Treatment Dewatering Belt Filter Press For Print Sewage
-
Fully Automatic Wastewater Treatment Sludge Dewatering Press
-
Continuous Sludge Dewatering Machine Used in Municipal Water Treatment
Product Details
| Brand Name | QILEE | |||
| Warranty | 1 Year | Weight | 1750 | |
| Dimension(L*W*H) | 4900*1600*3000 | Voltage | 220/380V | |
| Certification | CE,ISO | Condition | New | |
| Power(W) | 920 | Automatic Grade | Automatic |
Product Description

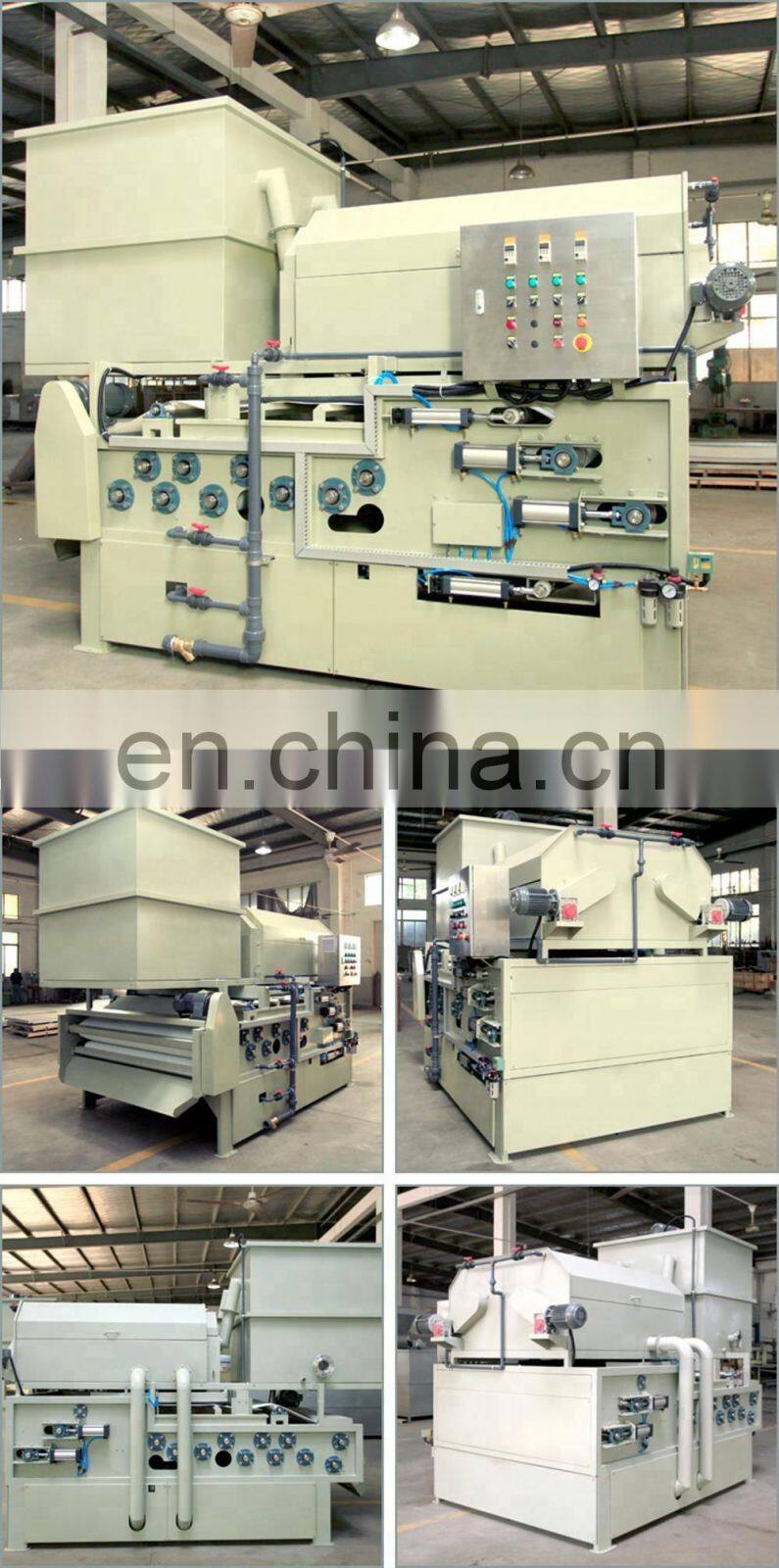

Small Belt Filter Press For Mud Slurry Dewatering
Belt Filter Press For Mud Slurry Dewatering Featurs:
1.The principal part adopts stainless steel as its material and possesses high strength. It is rust- less.
2. The filter cloth imported from Swiss, to provide the best performance and long service life.
3. Air chamber type automatic deviation correction device is set to assure stable running of the filter cloth.
4. Great product capability, good washing effect, flexible operation, low containing moisture in cake and low maintain expense
5. Low energy consumption,high efficiency ,low revolutions,low noise≤75dB(A)
6. Safety system monitor the entire working environment,automatic stopping devices to satisfy the need of operation security.
Belt Filter Press For Mud Slurry Dewatering Selection of models:
| Model | QTB-500 | QTB-750 | QTB-1000 | QTB-1250 | QTB-1500 | QTB-1500L | QTB1750 | QTB-2000 | |
| Belt Width(MM) | 500 | 750 | 1000 | 1250 | 1500 | 1500 | 1750 | 2000 | |
Treating Capacity( m³/hr ) Inlet Consistency(ss0.5~1.5%) | 3.0~5.2 | 4.5~7.5 | 6.5~10.5 | 7.5~12.5 | 9.5~16 | 12~20.5 | 15~24.5 | 18~30 | |
| Dried Sludge(kg/hr) | 45~78 | 68~113 | 98~158 | 113~188 | 143~240 | 180~308 | 225~368 | 270~450 | |
| Water Content's Rate(%) | 63~84.5 | 63~84.5 | 63~84.5 | 63~84.5 | 63~84.5 | 63~84.5 | 63~84.5 | 63~84.5 | |
| Power Consumption (HP) | Driving Motor | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1 | 1 | 1 |
| Disposal Agitaor Motor | 1/4 | 1/4 | 1/2 | 1/2 | 3/4 | 3/4 | 3/4 | 1 | |
| Drum Thickener | 1/4 | 1/4 | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 | 3/4 | |
| Lower Collecting Tray For Pressed Filtrate | Yes | Yes | Yes | Yes | Yes | Yes | No | No | |
| External Dimensions (Reference) (MM) | L | 2600 | 2600 | 2600 | 2600 | 2700 | 3300 | 3300 | 3400 |
| W | 1050 | 1300 | 1550 | 1800 | 2150 | 2150 | 2400 | 2650 | |
| H | 2150 | 2350 | 2350 | 2350 | 2500 | 2500 | 2500 | 2600 | |
| Base Dimension(L1*W1,MM) | 2100*830 | 2100*1080 | 2100*1330 | 2100*1580 | 2100*1830 | 2450*1860 | 2580*2110 | 2580*2360 | |
| Reference Weight(Kg) | 830 | 1000 | 1210 | 1450 | 1850 | 2200 | 2450 | 2850 | |
Belt Filter Press For Mud Slurry Dewatering Application:
1. Sludge dewatering of various industrial waste water.
2. Sludge dewatering of butchery, husbandry.
3. Slurry and water separation in food& beverage industry, chemical industry, mining and other industries.
4. Sludge dewatering of city sewage, excretion, water purifying industries.

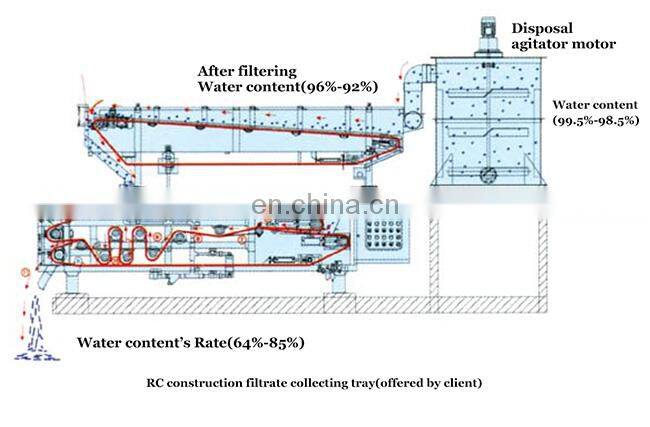

Belt Filter Press For Mud Slurry Dewatering Treatment Flowchart:

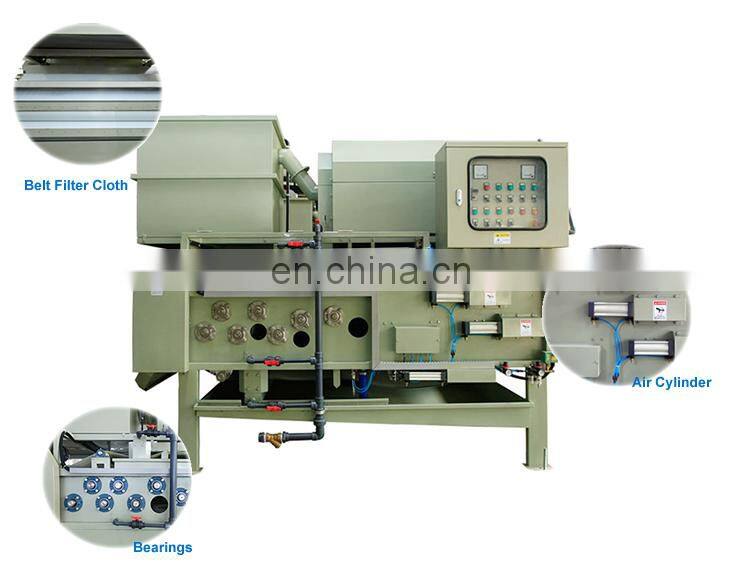

Belt Filter Press For Mud Slurry Dewatering Structure:
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
