Fruit and Vegetable Washing and Drying Machine

Fruit and vegetable washing and drying machine

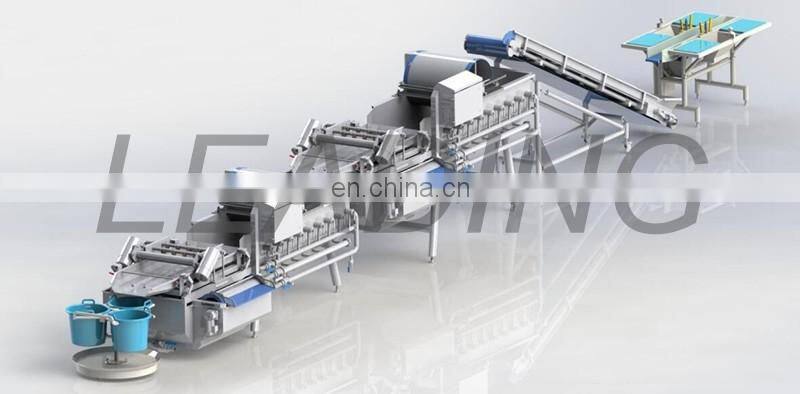

The vegetable washing line include:

Trimming table -- Fast disassemble elevator--(First washing) Washing machine with vibrator outfeed--(Second washing)washing machine with vibration outfeed--Saving car

1.Washing machine's technical parameter:

2.Description:

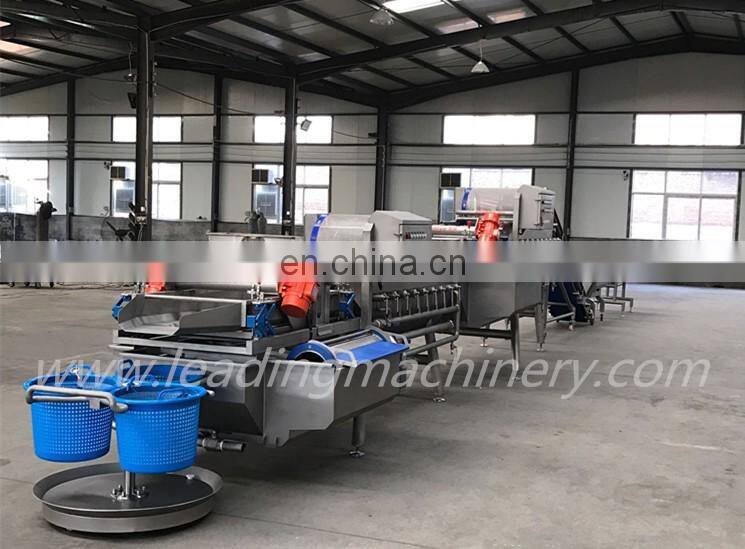

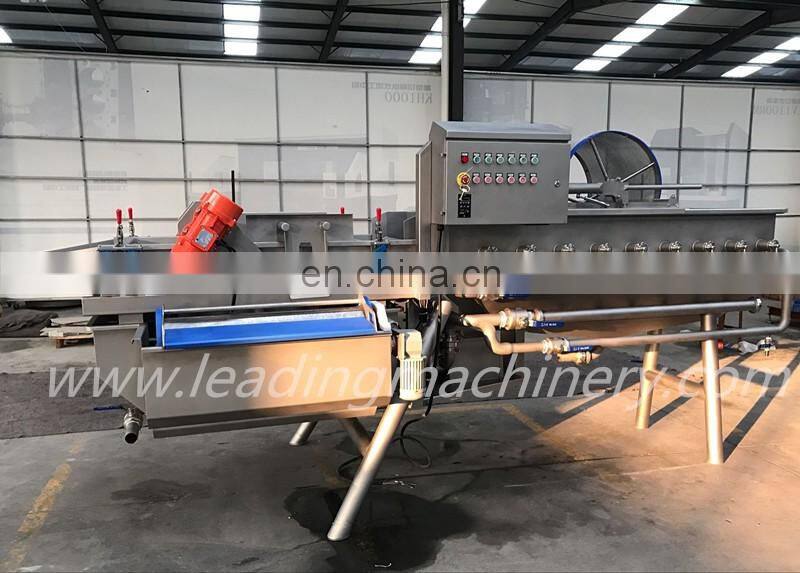

Vegetable Washing machine with vibration outfeed (product outfeed over vibration screen) for medium to bigger capacities, for example approx. 400-1500 kg per hour, depending on product.

Efficient and gentle washing of lettuces, vegetables and fruit by means of adjustable water rotation.

HELICAL wash system

The HELICAL washing system permits the product to pass through the washing tank along an adjustable water spiral, which means a distance of approximately four times the length of the wash tank itself.

Compact and modular construction

The washing machines assembly is modular. This allows our machines to adapt to different production requirements and conditions, for example changing the discharge system from vibration to belt conveyor, or installing a new air bubble system on an existing machine. Mounting new optional devices to existing machines can be done by yourself or by our trained service team.

Sand trap

Heavy dirt particles (like small stones) and sand are removed from the product flow and settled separately in the sand trap, at the bottom of the wash tank. Thus we avoid the sand particles to return to the product flow.

Insect and fines removal system

The insect and fines removal system is available in two versions:

• Removable, static basket like insert, for cut and not delicate products
• Motorized drum, in addition for delicate products and whole leaves. The insect removing drum can be easily lifted out of the washing tank (for example for cleaning). Opposed to other systems,LEADING insect removal drum is conceived open and easily accessible for cleaning and service. The device meets the highest industry standards and safety regulations.

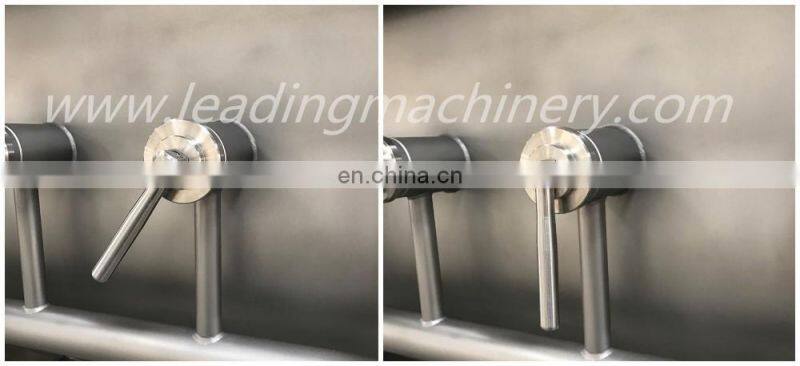

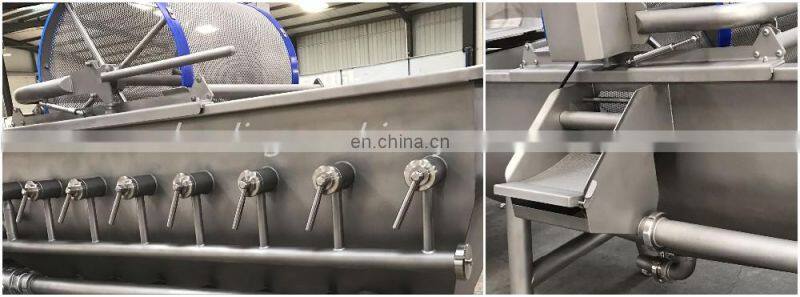

Water flow adjust knob

1.Can easily adjust the nozzles angle and the flow speed during machine’s running,can adjust the material running track;
2.Smooth discharge, no accumulate material phenomenon, and improve the washing effect.

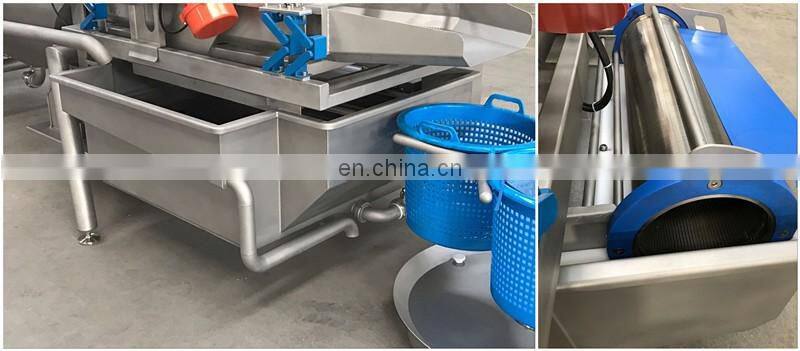

Filter drum

The filter drum allows continuous washing with LEADING Plus machines, without ever blocking the filters on top of the pump tank - even on foamy products and products with high quantity of fines. The fines drum has a 0.5 mm opening wedge wire and filters circulating washwater, protecting the LEADING water pumps from particles. Water flows through the filter drum back to the pump tank. A scraper removes all retained particles from the drums filter surface.
This fines drum can be easily tilted over and taken out completely from its fixtures to allow cleaning. The device is driven by the same type of motor used on the insect removal drum, which simplifies spare parts inventory.

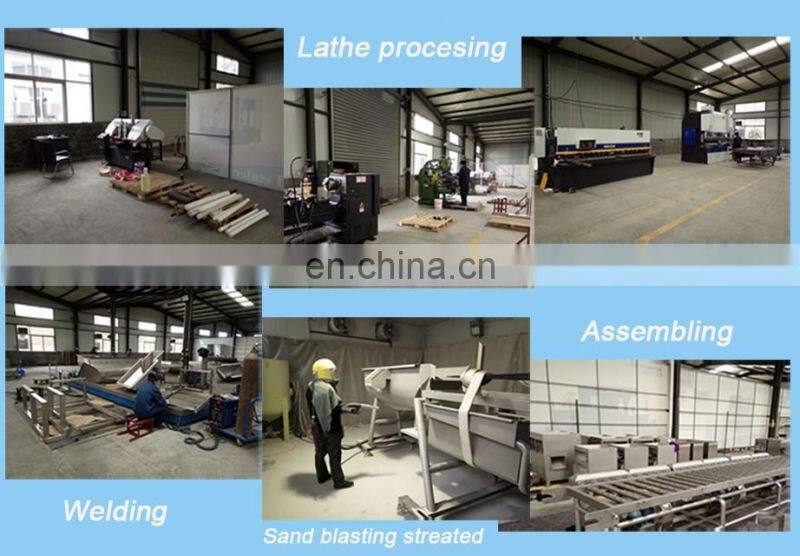

3.Production procedure in our factory

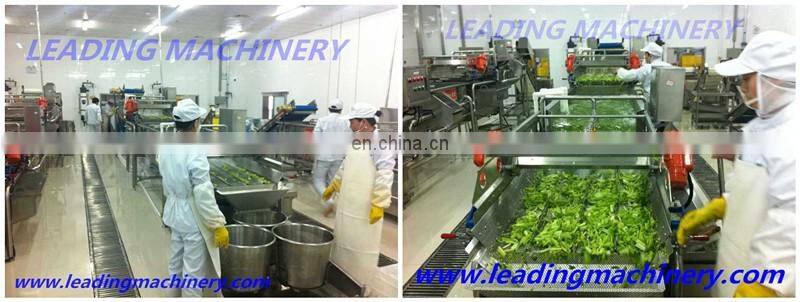

4.Customer visiting

Our customer from Portugal,America,Australia ,Russia and so on.

5.CE Certification

6.Packing and shipping

7.FAQ

1.Can i customize the machines?
Yes,we have a professional R&D engineer team to design the product according to the customers requirements.
2.Do you have factory?
Yes,we have,we are manufacture.
3.Where did you exported to?
We have sold to Saudi Arabia,Kuwait,Russia,Portugal,Australia,Iceland,Canada,South Africa and so on.
4.Can i use my Logo?
Yes,we can use customer’s logo on the machine.
5.How can i pay?
We accept T/T,L/C,West union,Trade assurance on Alibaba.

 8.Contacts
