NJP-3500C Fully Automatic Capsule Filling Machine

FOB Price

US$ 40,000 - 45,000 / Set

1 Set(Min. Order)

Port Ningbo/Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Huayuan	Place of Origin	Zhejiang, China
Model Number	NJP-3500C	Certification	GMP,CE,ISO 9001:2008
After-sales Service Provided	Engineers available to service machinery overseas	Weight	900KG
Dimension(LWH)	10208601970mm	Voltage	220V/380V 50/60Hz
Power	3KW	Application	Machinery & Hardware, Medical
Condition	New	Automatic Grade	Automatic
Driven Type	Electric

Product Description

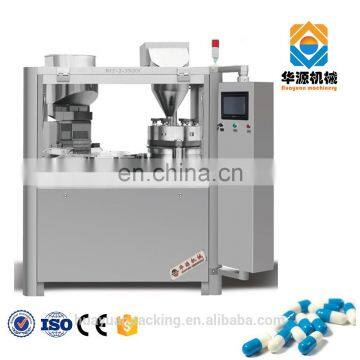

NJP-3500C Fully Automatic Pharmaceutical Hard Capsule Filling Machine

Application
NJP-3500C Fully Automatic Capsule Filling Machine is filled by powder,grain,tablet, It adopts multi-bore dosing, intermittent motion and timing frequency-conversion.It is suitable for automatically completing capsule feeding,separating,filling,(waste capsule rejecting),closing,finished product ejecting for powder or tiny pill medicine in capsule. It is designed sophisticatedly by our factory according to the practice on domestic, it is fully accord with the GMP standard.

Featrues

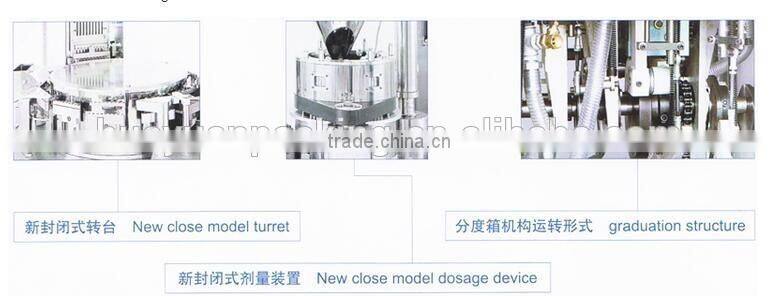

I. It has been improved the inner design turret,and imports beeline bearings for each machine from Japan directly,so that it can be sure a longer usage-life and precision of machine.
II. The working station cam runs under the good lubricating condition,and maintains the inner lubrication of cam slot to a full extent,increasing the pressure pulverization oil pump,thus extends the operation life of the spare parts.
III. It is controlled by the computer, has a stepless timing with the frequency-conversion, the numeral showing makes an easy operation and clear appearance.
IV. The multi-bore dosing brings a precision dosage (it is controlled around ±3.5%); the good capsule applicability makes a higher capsule qualified rate (99%).It can be filled with the Chinese traditional medicine and the Western medicine.
V. Add the extra function of capsule control switch.(Control the capsule outside of the machine,it is more safely and quickly.

Main Technical Data

Model	NJP-200C	NJP-400C		NJP-800C	NJP-1200C		NJP-2000C	NJP-3500C
Capacity (Capsules/min)	200	400		800	1200		2000	3500
Capsule Size	Capsule Size 00”-5” And Safety Capsule A-E
Filling Precision	Empty capsule 99.9% Fully capsule over 99.5%
No.of Segment Bores(pcs)	2	3		6	9		18	27
Designing Precision	Better than CP regulation
Voltage	220V / 380V, 50Hz, 3 phase
Power (Kw)	3	3		6	9		9	12
Noise db (A)	≤75dB(A)
Filling type	Powder,Pallet,Tablet
Compressed Air	75m3/h0.4
Vacuum (MPa)	(-0.04)~-0.085
Filling error	±3%-±4%
Overall Size(mm)	7506801700	7506801700	10208601970		10208601970	120010502100		185014702080
Net Weight (Kg)	700	700	900		900	1300		2400

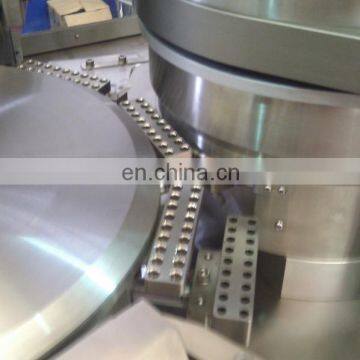

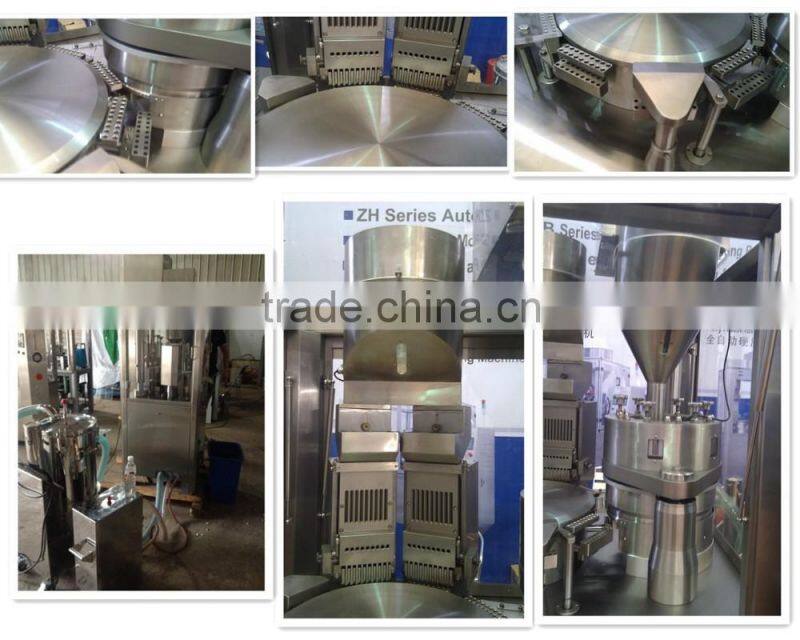

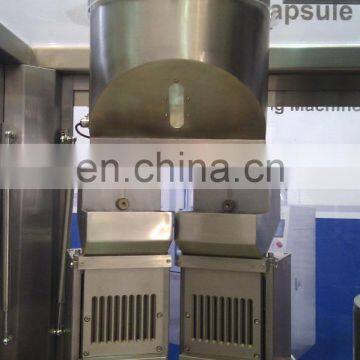

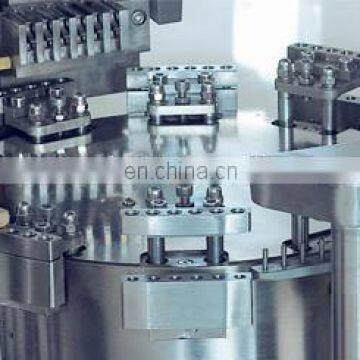

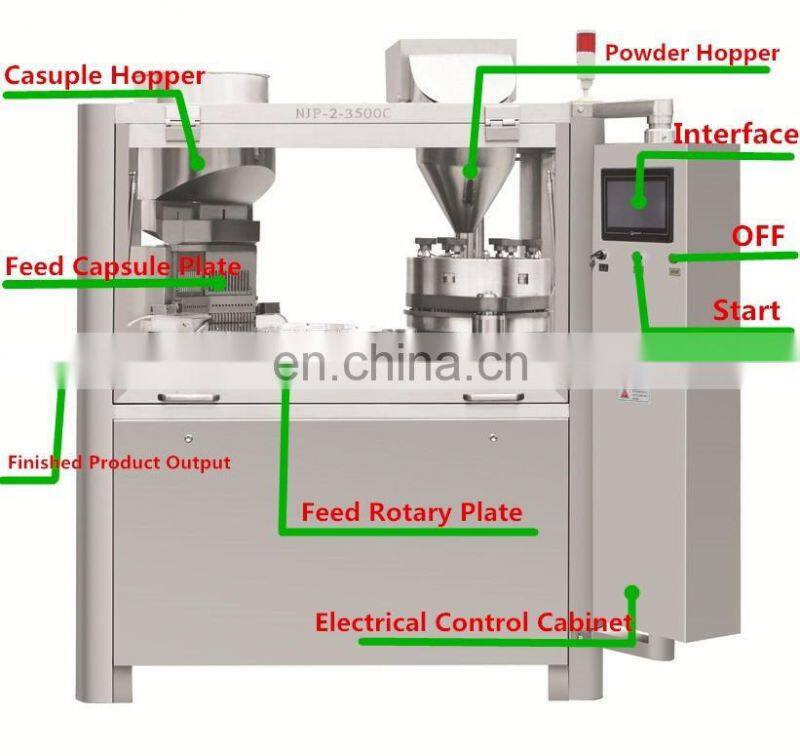

Details of Machine
