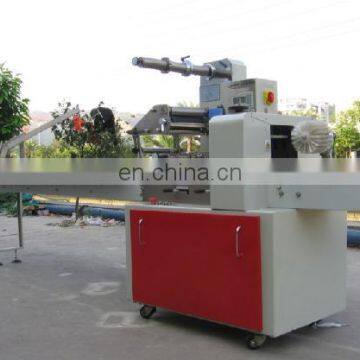

KD-260 Automatic flavouring packing machine

Scope of application:

Suitable for biscuits, packaging of all kinds of objects with regular solid state, such ,as bread ,speed wheaten food, moon ,cake ,candy ,medicines, dailynecessities, five metalspart, paper carton or the tray , etc.

Featrues:

Compact structure, stable function and simple operation.

Double frequency converter controller,length of package will cut immediately once setting, adjustment needless, saving time and film.

It adopts imported electric appliance, touch manmachine interface, convenient parameter setting.

Self-cheching function, trouble can be read easily. High sensor photoelectric color chart tracking, make the cutting position more correctly.

Dependant temperature PID controlling suitable for various materials of packagingmenbrane.Position stop function, no adhesive and no waste of membrane.

Clean rotation system, more reliableoperation and more convenient maintenance.

All the controlling operates by the software,convenience for function ad-justment and technical up grading.

Main Technical Data:

Model                     KD-260

Size of bag(mm)L           65-330mm

Size of bag(mm)w           30-110mm

Size of bag(mm)H           5-40mm

Intensity of Sealing          ≥15

Capait(packa/min)           25-220

Total Power(kw)             220V50Hz2.7Kw

Overall weight(kg)           700kg

Dimension(LxWxH)(mm)     4000mmx920mmx1500mm
