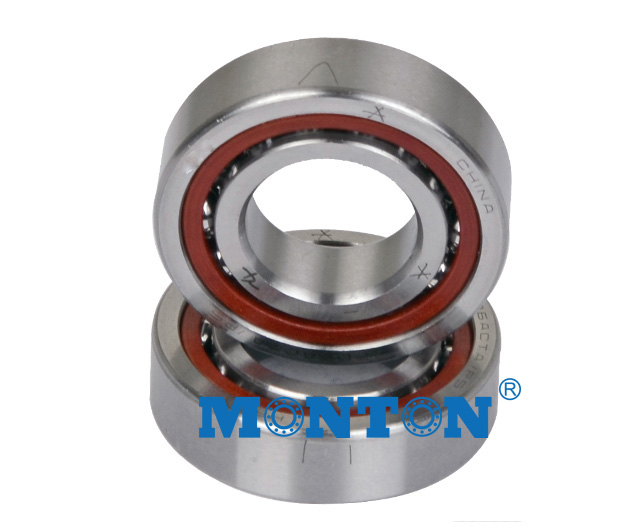

71804C / 71806C For Gas Turbines Single Row Angular Contact Ball Bearings

FOB Price

US$ 15 - 100 / Piece

1 Piece(Min. Order)

Port Shanghai or Beijing
Payment TermsT/T L/C Credit Card PayPal Other Cash Escrow
Delivery Detail1 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	monton	Place of Origin	China
Model Number	71811 ACDP4	Number of Row	Single Row
Seals Type	open or sealed	Precision Rating	50000r/min
Outside Diameter	10, 300	Bore Size	5, 200

Product Description

71804C / 71806C For Gas Turbines Single Row Angular Contact Ball Bearings

71804C / 71806C For Gas Turbines

Single Row Angular Contact Ball Bearings

Angular Contact Ball Bearing Introduction:

Angular contact ball bearings can bear radial load and axial load simultaneously. It can work at a high speed. The greater the contact angle, the higher the axial bearing capacity. The contact angle is the angle between the contact point of the ball and raceway in the radial plane and the vertical line of the bearing axis. High precision and high speed bearings usually take 15 degrees of contact angle. Under the action of the axial force, the contact angle will increase.

Model	Size			〆15o		〆25o		Cage Material
	Size			Limit Speed		Limit Speed
	ID	OD	H
	ID	OD	H	Cr Cor	Grease Oil	Cr Cor	Grease Oil
71804C	20	32	7	3.9 3.4	44000 66000	3.7 3.2	39000 59000	Bakelite
71805C	25	37	7	4.2 4.1	37000 55000	3.9 3.9	33000 49000	Bakelite
71806C	30	42	7	4.4 4.8	31000 47000	4.1 4.5	27000 42000	Bakelite
71807C	35	47	7	4.6 5.5	25000 39000	4.3 5.2	23000 37000	Bakelite

Classification of Angular Contact Ball Bearing:

Angular contact ball bearings are: 7000C (=15), 7000AC (=25 =25) and 7000B (=40 =40). The bearing's locking port is on the outer ring, which can not be separated from the inner and outer rings, and can bear radial and axial combined loads and axial loads in one direction. The ability to bear axial load is determined by the contact angle. The greater the contact angle, the higher the ability to bear axial load. The bearing can restrict the axial displacement of the shaft or shell in one direction.
The contact ball bearing can bear both radial and axial loads at the same time, and can also bear the pure axial load. The axial load capacity of the bearing is determined by the contact angle and increases with the increase of the contact angle.

Angular Contact Ball Bearing Precision Degree:

The accuracy grade of angular contact ball bearing includes dimension tolerance and rotation accuracy. The accuracy from low to high is expressed as P0 (normal), P6 (P6X), P5, P4 and P2. In addition, European and American brands also use P3, P7 and P9 to express accuracy level. P3 is equivalent to P6 level of ISO and JIS standard, P7 is equivalent to P4 level, P9 is equivalent to P2 level.
