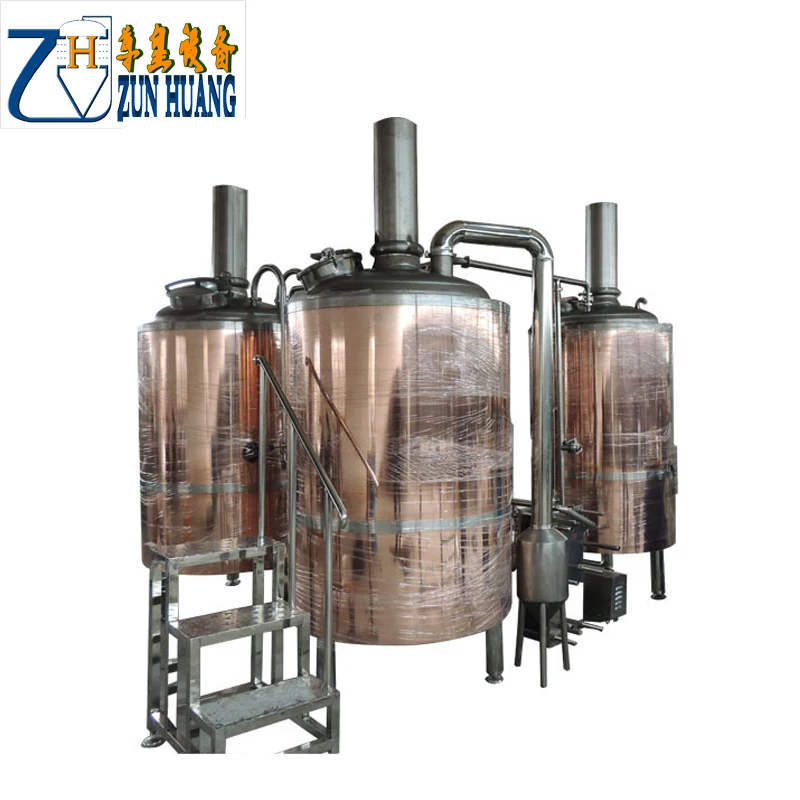

Micro mini brewery 3 vessel beer brewing equipment 500L beer mash tun

Micro mini brewery 3 vessel beer brewing equipment 500L beer mash tun

 Product Information:

1. Appearance clean and generous: The tank is polished by mirror, and the equipment is bright;

2. Good insulation effect: The equipment is divided into two kinds of heat insulation and cold insulation, which is the best to ensure the temperature of the beer brewing process;

3. Visualization operation: the equipment is controlled by PLC, and the fermentation tank is equipped with a glass tube level gauge, which is convenient for visual operation;

4. Low energy consumption: environmental protection, energy saving, low power consumption, saving energy consumption of about 20%;

5. Applications area: Beer Bars, Hotels, Restaurants etc.

Beer Equipment List

Products show:

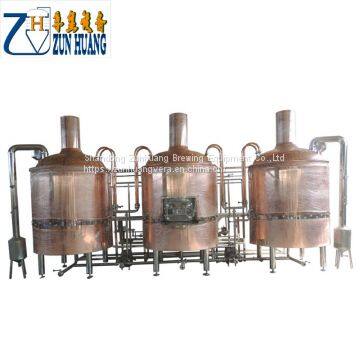

1.  System is mainly composed by mash/lauter tun, boiling pot, whirlpool tank, hops adding equipment etc.

2.The main body of mash tun, mash copper system all using international standards, high-quality 304 stainless steel.

 3.The manufacture is using of modern automatic plasma & laser cutting and the protection of pure argon gas welding and other technology.

4.The full mirror polished technology for the inside of the tanks which expose to materials such as wheat mash; external matte polished to ensure customers with high quality and low price, beautiful mash system.

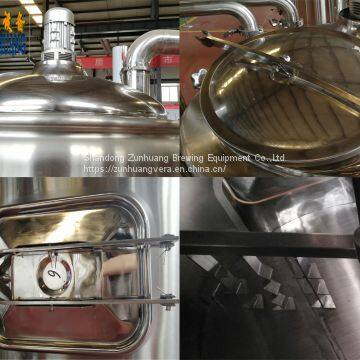

 Details as follows:

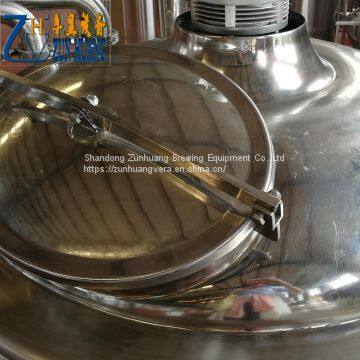

1. Manhole, stainless steel top manhole or glass sight manhole

2.Temperature measurement method: PT100 temperature probe.

3.Cleaning method: Fixed rotate cleaning ball and sprage coil on top.

4.Mechinical agitation& Raker: at the top stirring. High power, low speed to ensure complete worse layer.

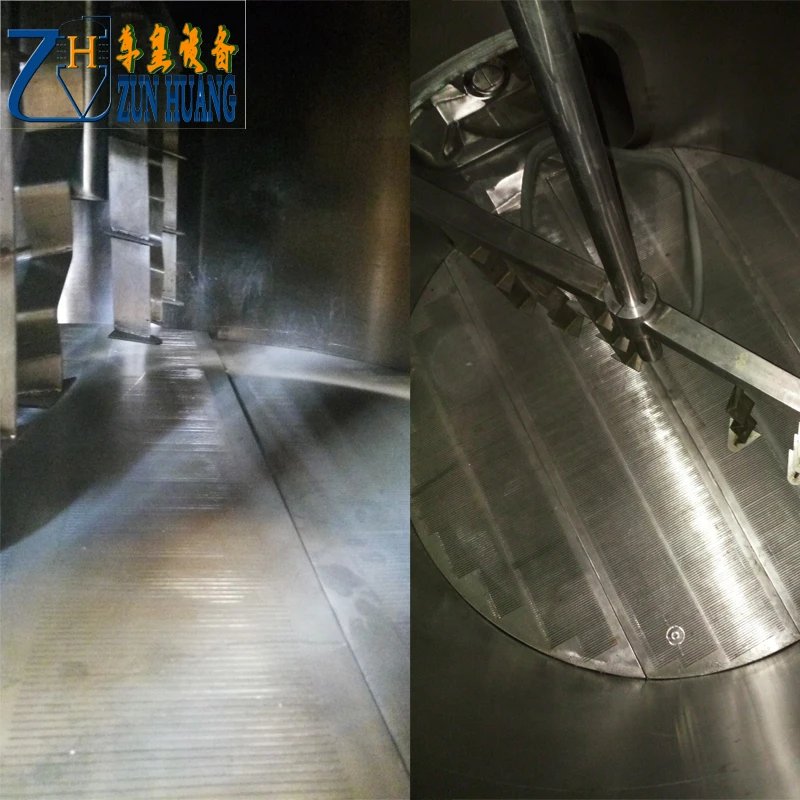

5.Milled sieve plate,0.7mm distance with discharge hole.

6.Whirlpool tangent pumped at 1/3 height of the tank and glass level.

7.Stainless steel legs, with screw assembly to adjust leg height.

 Ten provide to service you:

1. After-sale Service for the whole life.

2. 24h service for you, solve your urgent problem first time.

3. 3 years warranty for the main products.

4. Free design for your brewery layout for 2D or 3D.

5. Spare parts replacement and repair service provided.

6. Engineer going abroad for installation, debugging and technical training if you need.

7. Provide the Form E, CO, etc..others necessary reduce import Tax files for you.

8. To provide update information about brewing equipment technology once we test.

9. Help you send the goods if you have others company order, then send to you together.

10. Door to Door service, if you need any brewing parts.
