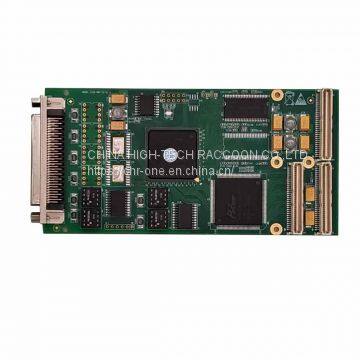

CHR MIL-STD-1553 PMC Dual Channels Interface Cards

CHR MIL-STD-1553 PMC Dual Channels Interface Cards

CHR's MIl-STD-1553 PMC dual channels interface cards are independently developed and produced. These cards are based on the latest 32-bit FPGA protocol engine and has reliable performance. MIL-STD-1553 Serial Data Bus is widely used in analysis, simulation, monitoring and test platform construction，as well as other fields. CHR can provide customized MIl-STD-1553 interface cards.

Key Features:

* Two Dual Redundant MIL-STD-1553 channels.

* PMC bus.

* Single function and Full function optional:

   Single function: BC or RTs or Mon

   Full function: BC and RTs and Mon

* Advanced 32-bit FPGA protocol engine.

* Communication rate: 1M, Inter-message gap times up to 1μs

* 32-bit, 1μs hardware time tags.

* Large on-board memory: 32M*16bit.

* Software support: Windows，Linux，LabVIEW/RT，RTX, QNX and other operating systems.

* API and Customized ICD software available.

* Programmable response time: 0-32768μs.

* Programmable single message sending interval time minimize to 1ms

* Support interrupt and monitor message receive.

* Programmable message insert.

* Size: Standard PCI size：175*106mm （4.2*6.9in.)

* Connector: SCSI-68 connector.

* Extended temperature model: -40℃～+85℃.

* Humidity：0-95% RH, noncondensing.

CHR 1553 PMC interface card part Number:
