Home > Products > Big Gantry Type Structure Industry Robot > Three CNC lathe machine

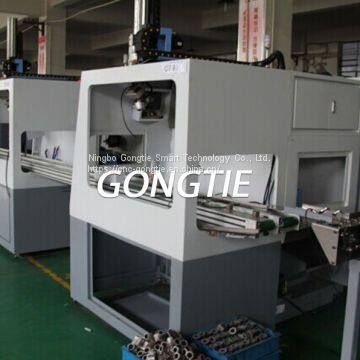

Three CNC lathe machine
- 500 Set / Sets per Month
- NINGBO
- T/T L/C
- 80 days
You May Like
Product Details
| Place of Origin | China | Condition | New |
Product Description
Three CNC lathe machine
custom Three CNC machine
Three CNC lathe machine for sale
Q series-precise linear guide-way with flat bed in blade row : Q5，Q7，Q5C，Q7C
S series-precise linear guide-way with flat bed in blade row : S36, S350
with the features of high precision. high speed. high efficiency, is the ideal selection for substituting hard rail lathes and imported lathes.
* High precision: importing components from Japan and Taiwan through the advanced assembly and inspection technology, realizing the precise turning with tolerance of μ level.
* High speed: more than 5000RPM for spindle ,rapid traverse 20m/s, to reach the high speed machining.
*High-efficiency: with the concept of technique innovation and application oriented, and sustainability improve the overall performance, to make the processing more efficiency.
* Stability: high quality requirement and strict selecting for all the components, to make the machine performance more stable.
(Synchronous electric spindle)- the best selection for substituting the imported lathes.
* More precision: the complete Synchronous servo configuration for the spindle and the X/Z axis, makes the processing accuracy get a new break through.
* Higher speed: the superior Synchronous electric spindle make the spindle perform higher, faster, and more stable.
* More efficiency: the complete, Synchronous control for the core parts (all the axis),makes the processing efficiency better.
Main parameters | UNIT | S36 | S36C | S350 | S36D | S350D | |
Capability | Max. swing diameter | mm | 300 | 300 | 350 | 300 | 350 |
Max. turning diameter | mm | 270 | 270 | 350 | 270 | 350 | |
Max. turning length | mm | 330 | 330 | 420 | 330 | 420 | |
Max. bar through-hole | mm | 26（35） | 26（35） | 40 | 26（35） | 40 | |
Axis Stroke | X-axis travel | mm | 420 | 420 | 420 | 330 | 330 |
Z-axis travel | mm | 330 | 330 | 330 | 420 | 420 | |
Rapid Traverse | X/Z-axis | m/min | 20 | 20 | 20 | 20 | 20 |
Spindle | Spindle nose size | N/A | A2-5 | A2-5 | A2-5 | A2-5 | A2-5 |
Spindle servo motor power | kW | 3.7/5.5 | 3.7/5.5synchro | 5.5/7.5 | 3.7/5.5 | 5.5/7.5 | |
Spindle speed range | rpm | 0～5000 | 0～5000 | 0～4500 | 0～5000 | 0～4500 | |
Work piece clamping method | N/A | 36 collet | 36 collet | 6' hydraulic | 36 collet | 6' hydraulic | |
No. of tools | Number of tools | PCS | 5 | 5 | 5 | 3+8 | 3+8 |
Toolholder | Toolholder type | N/A | T-slot blade row+spindle head | T-slot blade row+spindle head | T-slot blade row+spindle head | T-slot blade row+63turret+s pindle head | T-slot blade row+63turret+spi ndle head |
Toolholder center height in radial | mm | 62 | 62 | 62 | 62 | 62 | |
Tool size | mm | 20*20 | 20*20 | 20*20（25*25） | 20*20 | 20*20（25*25） | |
Boring rod diameter | mm | 25 | 25 | 25 | 25 | 25 | |
Accuracy | XZ axis repeating postioning accuracy | mm | 0.002 | 0.002 | 0.002 | 0.002 | 0.002 |
Others | Cooling motor capacity | L | 120 | 120 | 120 | 120 | 120 |
hydraulic box capacity | L | 60 | 60 | 60 | 60 | 60 | |
Required electric power | kVA | 12 | 12 | 14 | 15 | 15 | |
Height from floor to spindle center | mm | ≈1070 | ≈1070 | ≈1070 | ≈1000 | ≈1000 | |
Overall size(L*W*H) | mm | 1850*1750*1750 | 1850*1750*1750 | 1850*1750*1750 | 1850*1750*1750 | 1850*1750*1750 | |
Net weight | kg | ≈2400 | ≈2400 | ≈2400 | ≈2600 | ≈2600 | |
Standard configuration:Tool box, instruction book, operational manual, cooling system , lighting system, lubrication system, chips cleaner, hydraulic collet(chuck), foot switch. | |||||||
Optional configuration: program control blowing function, precision C axis dividing, power spindle head , automatic door, loading and unloading system, industrial robotic, automatic bar feeder, receiving device for bar materials, automatic detection system, automatic cutter radius compensation system, high-pressure cooling system. | |||||||
