Home > Products > UHMWPE sheet > impact resistance UHMW-PE marine fender facing pad
impact resistance UHMW-PE marine fender facing pad
- Tianjin,Shanghai,Guangzhou,Qingdao
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 5 days
You May Like
Product Details
| Brand Name | Wanhong | Place of Origin | China | |
| Model Number | 1210 | Material | PE | |
| Size | 1300*4100 mm,1040*4000 mm,1500*4100 mm,1300*6200 mm or as your requirement | Thickness | 8-200 mm |
Product Description

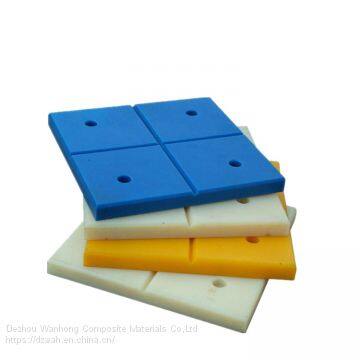

impact resistance UHMW-PE marine fender facing pad
UHMW-PE marine fender pad is a thermoplastic engineering plastic. It combines the advantages of all plastics, wear resistance, chemical corrosion, self-lubrication, resistance to low temperature, safe, non-toxic and odorless, etc .It is the highest number of existing plastic varies. With the development of plastic processing technology, the application field of UHMWPE will become wider and wider.
Features:
? Extremely high impact strength
? Excellent wear and abrasion resistance
? Optimal sliding properties
? Dimensional stability
? Energy absorption capacity at high loading rates
? Resistance against fatigue
? Water repellent
? Good chemical resistance
? Electrical and dielectric properties
? Physiologically harmless
Technical Parameters:
Property | Unit | Value |
Density | g/cm3 | 0.93-0.96 |
Average molecular weight | g/mol | 3million- 10 million |
Tensile strength (23°C in air) | MPa | 22 |
Breaking strength | MPa | 42 |
Tensile strain at break | % | 600 |
Charpy impact strength (notched) | MJ/mm2 | No break |
Ball indentation hardness | N/mm2 | 42 |
Shore hardness | -- | 65-70 |
Abrasion | % | 70-80, steel = 100 |
Static Friction Coefficient | -- |
≤0.16 |
Kinetic Friction Coefficient | -- |
≤0.10 |
Water Absorption | -- | NIL |
Elongation at break at 23°C | % | ≥300 |
Temperature Resistance | °C | -269 to +85 |
Melt Temperature | °C | 130-140 |
Application fields :
port wharf fender board ,
anti collision board ,
dock water pressure cushion .
