Product Details
| Brand Name | WANTUO | Place of Origin | Henan, China | |
| Certification | Other | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 1 Year | Weight | Actual | |
| Dimension(L*W*H) | 2950*1320*1500mm | Voltage | 380V, 380v | |
| Condition | New |
Product Description
Automatic Egg Paper Tray making machine price
Automatic Egg Paper Tray making machine price:
No. | Description | Type and specifications |
| (1) pulp making system | |
1 | HydraPulpter |
ZJ070 Volume: 0.4m3 Capacity: 40~50kg/h; Material code: Q235 and CAST IRON Impeller knife -CAST IRON Dielectric Concentration:4%~6%. |
2 | Pulp agitator |
ZB020-11 For Mixing the pulp in the pool, and keep consistence of the pulp steady. Include reducer (1.1kw) and agitator. Material of the lamina is stainless steel. Agitating diameter:1000mm |
3 | Electric cabinet for the pulp making system |
EC-PV400 Regulated whole process of pulp supplying system and vacuum system. Control the hydrapulper, pulp pump, water pump, Pulp pool agitators, vacuum pump… Main electronic parts brand: Siemens , LG/LS; |
| (2) forming system | |
4 | Reciprocating forming machine |
CW050 Mould Plate size:800*400mm Forming method: Vacuum suction Driving method: air cylinder. Number of moulds:2sets of forming mould and 2sets of transfer mould Production cycle: For egg tray 65g/pc. 12~18s. Capacity for egg tray:400~600pcs/h. The main electronic parts brand: Siemens; |
5 | forming mould |
For 30 packed egg tray: 1pcs/mould Material is aluminum Or PC |
6 | Transfer mould |
For 30 packed egg tray: 1pcs/mould Material is aluminum |

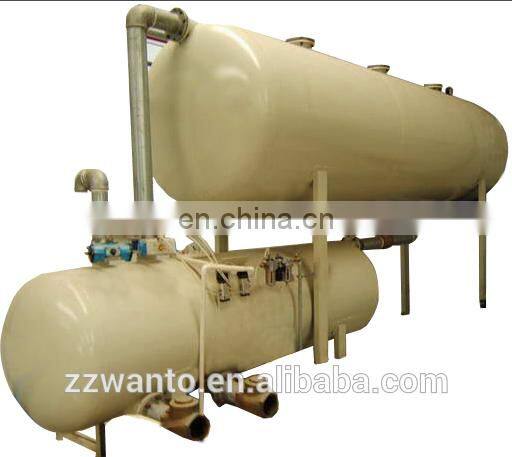

7 | Vacuum and auto drain system |
VD10-4 Control the vacuum air/water separation and water drain/recycle automatically. Include control valves, check valves, magnetic valves, inductor , vacuum container(1m3), water discharge container(0.4m3), and other parts |
Select WANTUO, the future success
Corporate Homepage
https://zzwanto.en.china.cn/company_profile.html#top-nav-bar
1.Delivery time: Within 5-7 days after receiving clients' payment
2.Payment Terms :
3.Packing: Wooden box free of fumigation
4.Quality Gurantee: Quality gurantee term is for 1 years, Malfunctions which are caused by operation mistakely will be reponsible for customers
1. Qualtiy Gurantee :1 years guanrantees for each machine
2. Pre-Testing before forwarding :All machines will be pre-tested to make sure it will be received
in good condition
3. Operation Video and instruction :We will provide you operation video and detailed instructions to install and you can make full use of the machine
4. Full Techinical service :Engineer is ready to provide you our full-process tracing
and instruction "
1.Alibaba Assessed Gold Supplier
2.100% Quality control before forwarding
3.Competitive price withe best quality and service
1. Are you manufacturer ?
Yes we are the manufacturer and welcome to visit our factory
2. Can you change the machine voltage as our request?
Yes we can change the machine voltage as customers’ request
3. How about your after-sale service?
Our engineer can go outside to installand train your workers to operate the full machine line.
4. Warranty time of your machine?
1 years warranty time except for consumable spare parts
5. How about delivery time of your machine?
Generally it needs 10-15 days,for big machine or producing line,it will be much longer but wthin our negotiated delivery time
