Large Capacity Round Bamboo Tooth Pick Making Machine Bamboo Tooth Pick Processing Equipment Production Line

duct introduction of Bamboo tooth pick making machine

Can use many different specifications woods, such as round log, square wood and

undersized wood. As well as the bamboo.we have one line process wood or bamboo to tooth pick or chopsticks.can introduce you best machine as customer request.

2. work efficiency of Bamboo tooth pick making machine

Usually one cubic meter can produce 100000 wooden toothpick of ¢ 2.2 X65MM

specifications. According to different press bubble wood and hardwood material,it is about 150 to 200 kilograms.

3. Production line

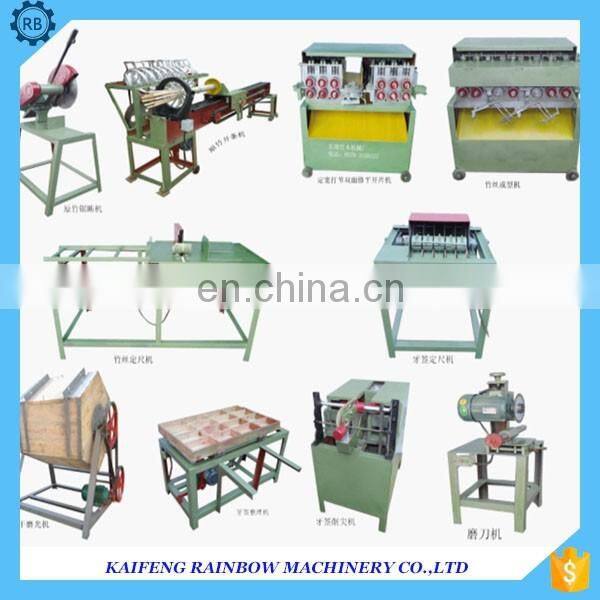

Raw bamboo saw -- bamboo dissection machine -- thickness and width slicer -- bamboo filament shaping machine -- bamboo filament set-size machine -- toothpick set-size machine -- rolling sharpen machine -- toothpick sorting machine -- toothpick mincing machine -- multisharpen machine

4.Product Description of Bamboo tooth pick making machine
1)Raw Bamboo Sawer
This machine is used to saw raw bamboo. Saw bit can saw the whole raw bamboo into required length. This machine has easy operationhigh efficiencyconvenient maintain and installment.

2)Bamboo sharpener
This machine is one of the making line of toothpickchopsticks and food peg wood. It is used to dissect the raw to inquired size. The width and thickness are about 60mm.

3)Fixing width Double sided Trimmer
This machine is one of bamboo toothpick making line. Its main function is to wipe off bamboo jointrefit bamboo brim and split layers. It applies to make required width and thickness of bamboo flake.

4)Bamboo batten drawing machine
This machine is used to draw the slice to wirelike bamboo thread. The threads have the same width and thickness as the toothpick. This machine applies to make bamboo toothpick, food peg wood and so on.

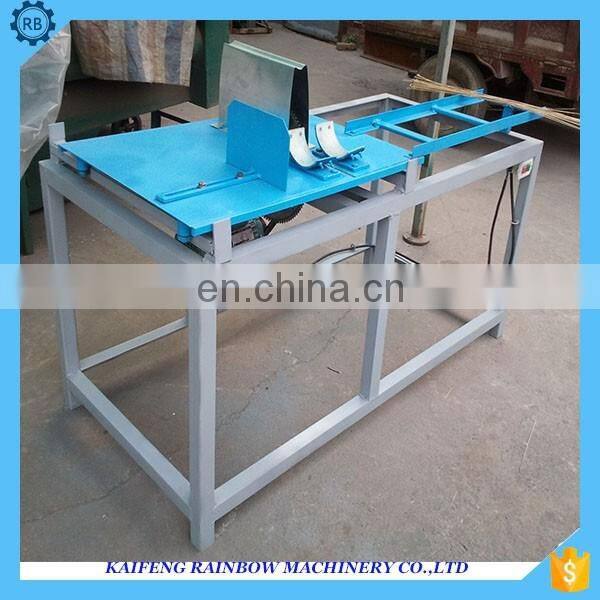

5)Bamboo-wool ruler fixer
This machine applies to set size of wooden or bamboo thread. The length is about 260-300mm. After cutting the thread, the thread can be cutter into toothpick length by toothpick ruler fixer.

6)Toothpick ruler fixer
This machine is used to set size of wooden or bamboo thread. The length is about 65mm, just as the length of toothpick. It consists of fixed clampmotor saw bit and foundation bed. The fixed is installed in a removable frame.

7)Reciprocating Polishing machine
This machine applies round toothpick wood chopsticksbarbecue peg wood and other food peg wood.
The motor pull the hopper back and forth, and then sticks rub each other and become smooth.

8)Aligning machine
This machine is used to put the wood sticks in order. Put the polished wood sticks into the quadrate basket. The basket has many small quadrate grids; The length is the same as sticks. Start the motor, the basket move back and fro, then disorder sticks fall into grids because of inertia and become order.

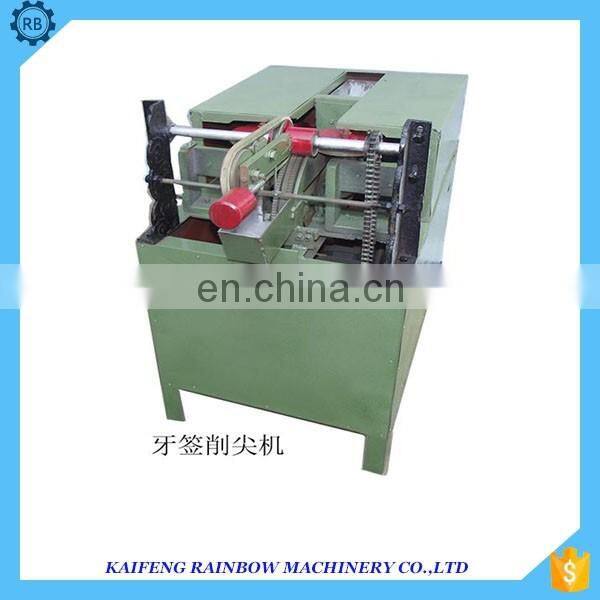

9)Toothpick polishing machine
The machine is to process wooden and bamboo toothpick. It consists of hopperfeeding gear fixed geardischarging tankgrinding wheel, transmission system with belt and chain. Hopper inside has vibrating sliding plate and on-off board, make material feeding smoothly. It can sharpen one end or two ends of toothpick. This machine install dust absorption system, the dust is expelled automatically.

10)Blade sharper
Blade sharpener is specially designed for grinding carbide saws easily and efficiently. This blade sharpener machine can sharpen flat tooth, tilting tooth, alternate tooth, composite tooth of carbide saw blade and other saw bit.

Parameter Bamboo tooth pick making machine

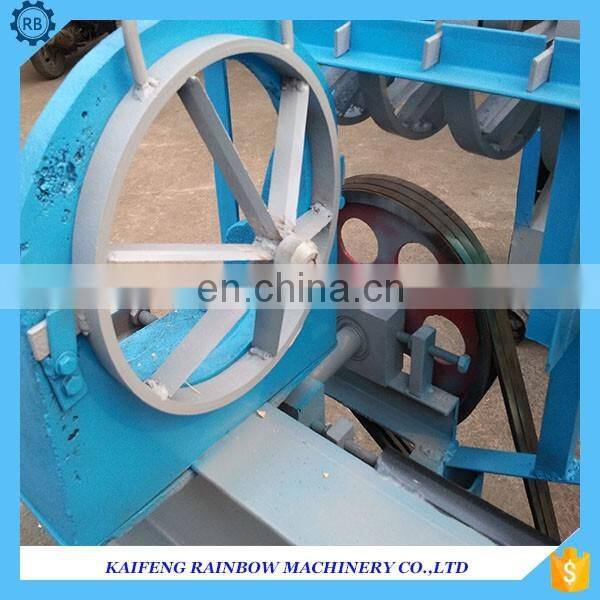

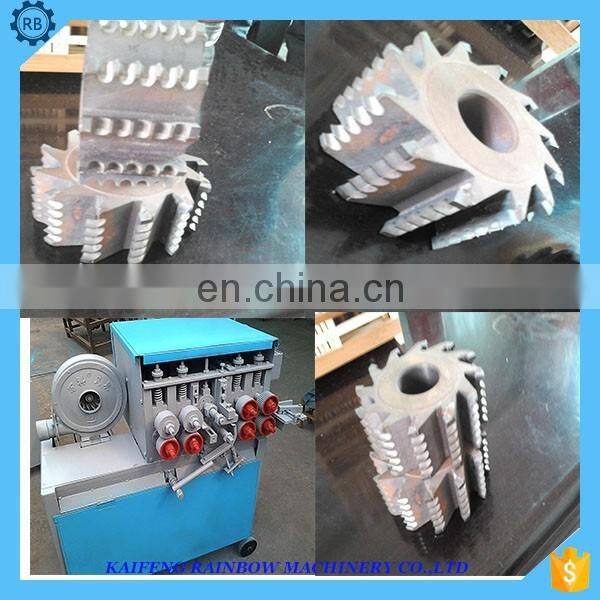

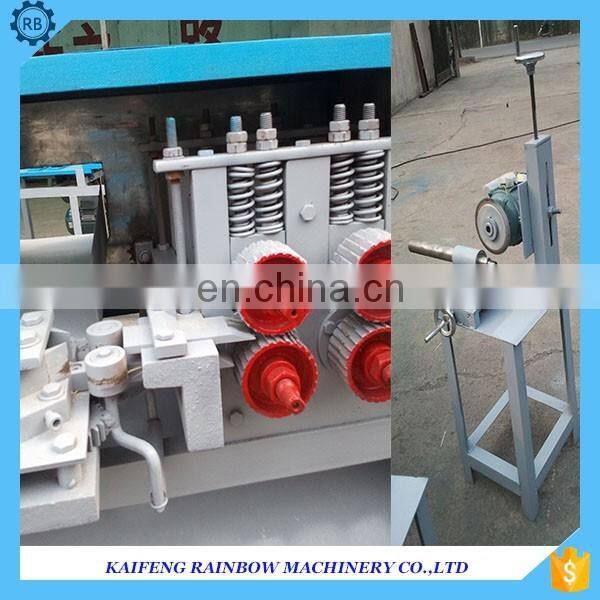

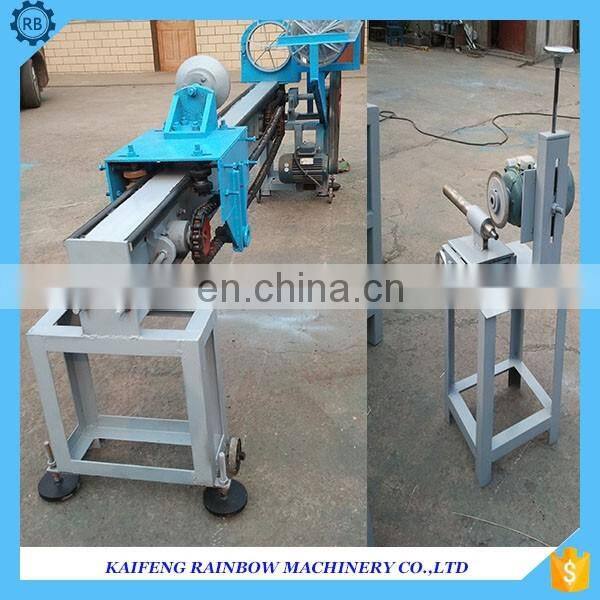

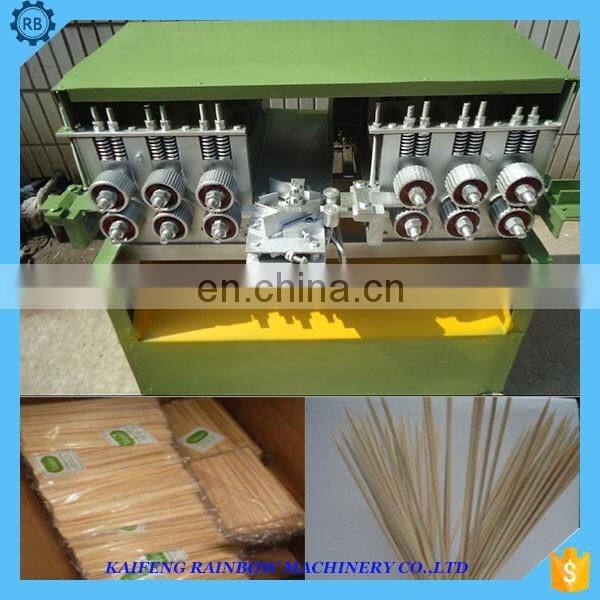

Picture of Bamboo tooth pick making machine

About packaging, for small size or single machine, we can offer free fumigation wooden case with steel frame, it not only can protect machine from damage, but also avoid checking when exporting.

For multiple machines or production line, it's better to loaded in standard container 20GP, 40GP, 40HQ, usually it needs wrapped with plastic firstly, then loaded in container.

we can offer EXW, FOB and CIF terms.

EXW: You arrange the shipping details from our factory to your port by yourself.

FOB: We arrange freight transport to Qingdao, Shanghai or other ports of China, then you arrange the shipping details from China port to your country port.

CIF: We arrange all shipping details to your country port, and ensure machines smooth arrival.

Kaifeng Rainbow Machinery Co., Ltd. is a domestic large-scale new energy environmental protection equipment manufacturers in China. The registered trademark is "Rainbow".

Our company has combined Research and Development, Production, Sales and Service in one, and our main product have Wood Crushing and Recycling Workstation, New Energy Particle Machinery, Feed Machinery, Organic Fertilizer Machinery, Broken machinery. Totally, have a lots of products, more than 300models, which make our company the most professional development and production of high-tech enterprises of new energy environmental protection machinery manufacturer in China.

1. Help you choose the most suitable machine.

2. Making the machine according to your request.

3. Give you machine’s details and video for help you use the machine more better.

4. One year warranty

5. Quality problem,we will send you the accessories.

6. Free repair whole using life without extra charge.

1. What's the delivery time?
We will deliver the product in 7 days after receiving the deposit.
2. What's your payment terms?
We can accept various payment terms if it is convenient for you.
3. what's your MAQ?
Our MAQ is 1 piece.
4. What's the lifetime of the wearing parts?
The material of our product is of high quality, and the lifetime of our wearing parts is twice longer than the others,including the roller skin, die and bearing.
5. What is your warranty?
12 months except the spare parts.
6. Will you send engineers to install the plant?
Of course yes,but at an extra cost will be paid by customers. Or you can get local contractors to do the commissioning and we send one supervising engineer.

7. Do you have some foreign customers using your equipments?
 Yes , we have customers all over the world.
