Rice and Wheat Harvesting and Bundling Machine
- Qingdao Shanghai Ningbo
- T/T Credit Card
You May Like
-
Tractor PTO high efficiency straw to field machine for farm
-
Large Capacity Cotton Seeds Sheller With 4 Blade
-
Disk Type Cotton Seeds Shelling Machine For Oil Press
-
High Quality corn straw /rice straw cutter/field straw chopper machine
-
Best Selling Professional field grass cutting machine for sale
-
Lowest price Tractor Crop cutting and collecting machine in field / Corn stalk harvester as silage / silage harvetser machine
Product Details
| Brand Name | RB | Place of Origin | Henan, China | |
| Certification | ISO | |||
| Weight | 200 kg | Dimension(L*W*H) | 2100*1250*1000 | |
| Condition | New |
Product Description
KAIFENG RAINBOW MACHINERY CO.,LTD

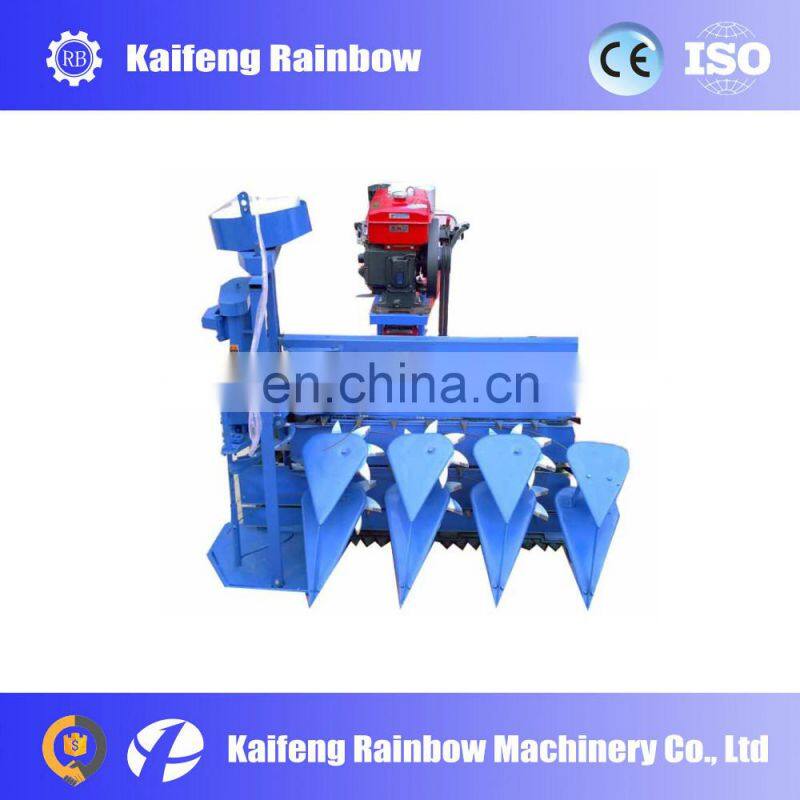

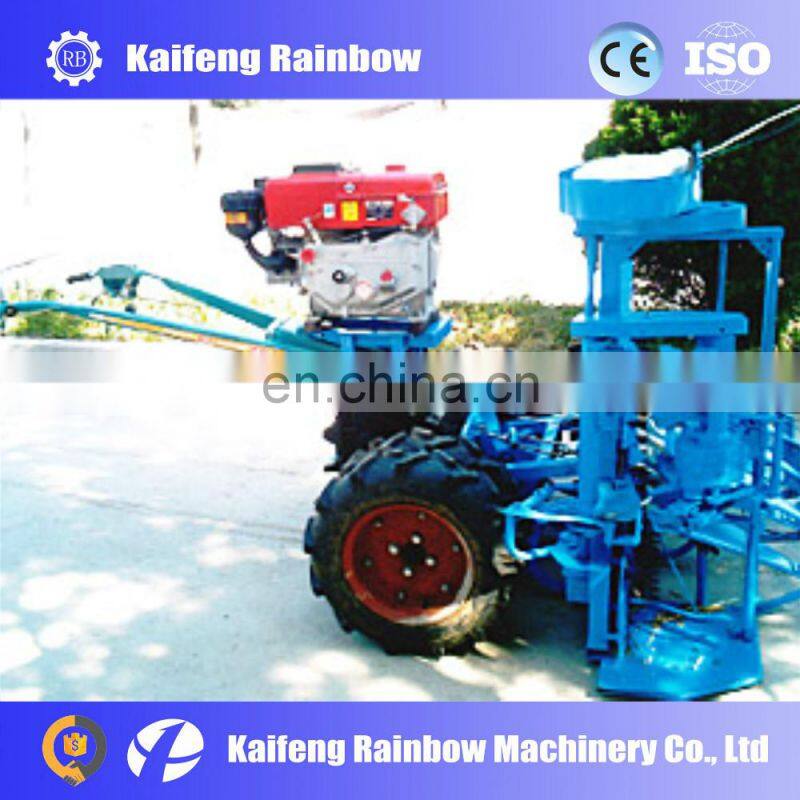

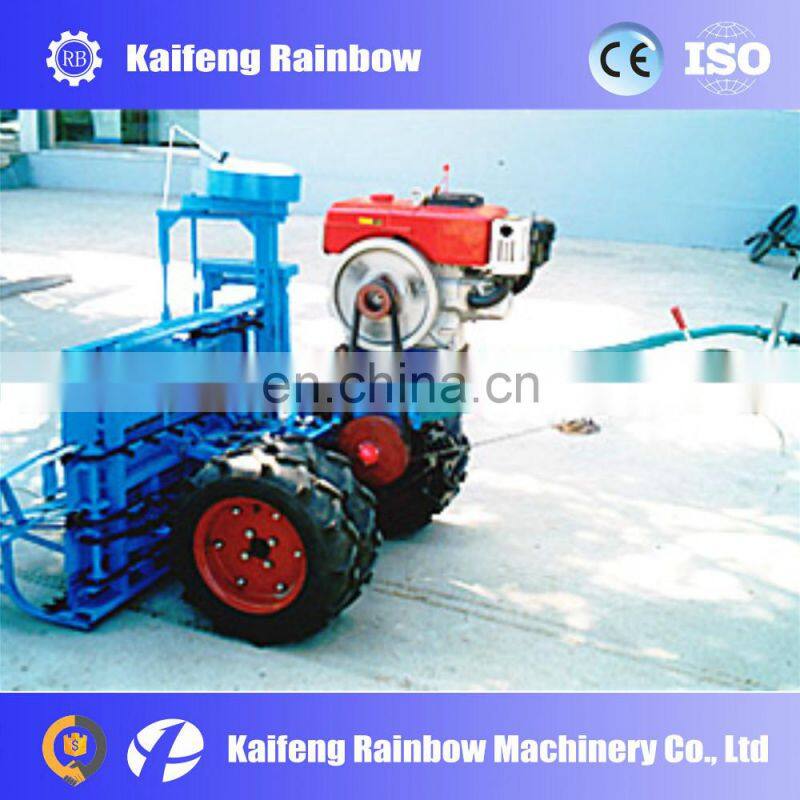

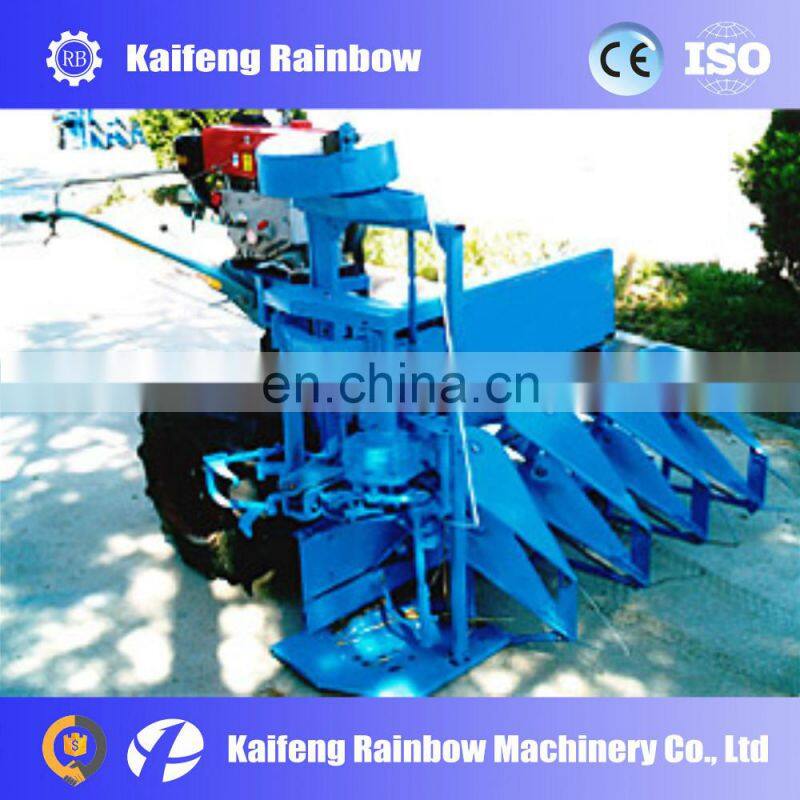

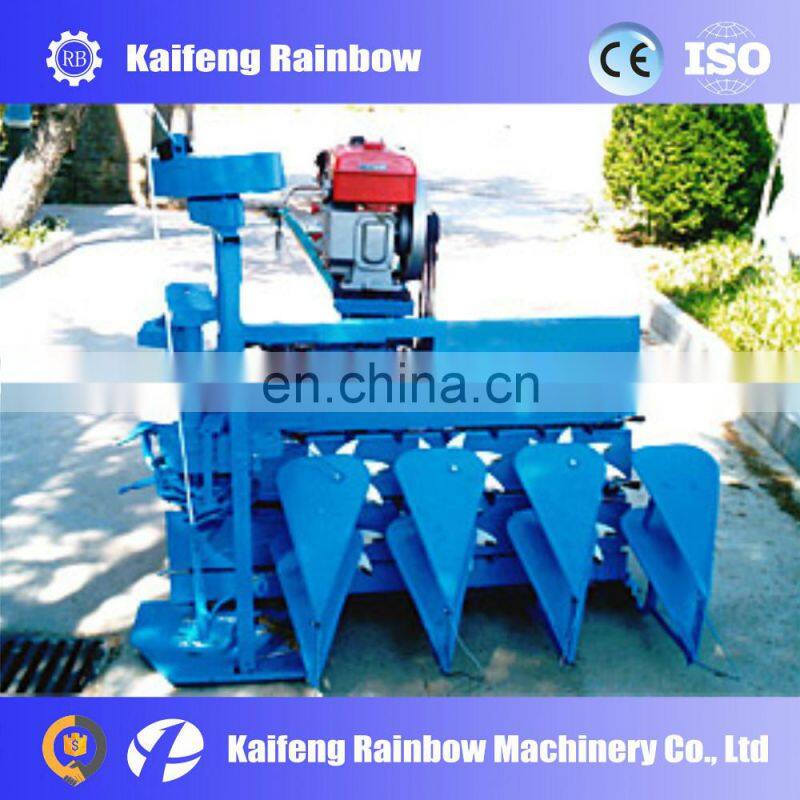

Rice and wheat harvesting and bundling machine
This machine can reap rice, wheat, soya and bulrush etc. It has the peculiarity of the simple configuration, small volume, light weight and low consuming, and its capability is very steady. So it is very suitable to
Small field, mountainous areas and hilly land.
Features:
Matched with the walking tractor, with a rugged, light weight, mobility flexible, simple and convenient operation of labor-saving, low-cut stubble, not pressure are summarized, and from the ridge away from the crop row spacing and the advantages and restrictions. Widely applicable to the size of the harvested crop land, especially for the harvest of muddy land.
It can cut the grain and then bind the grain.
Easy to operate,
In the conditions of no weed on the cutting line, crop standing, the paddy with the natural height of 500-1000mm, the lodge angle less than 10° , and the wind power no more than 3m/s, the machine would have the performance index as follows: | |||
Item | Index | ||
Placing Angle | 90° ± 20° | ||
Total Losing Rate (%) | Wheat< 0.5, Rice< 1.0 | ||
Root Difference | ≤ 80 | ||
(II)Technical Parameters | |||
Model | RBGK-100 | RBGK-120 | RBGK-150 |
Types of cutting table | Vertical-Typed | ||
Cutting width (mm) | 1000 | 1200 | 1500 |
Min cutting Height (mm) | ≥ 50 | ≥ 50 | ≥ 50 |
Placing type | Sidewise & Banded Placed | ||
Productivity (M2/hour) | 2400~3300 | ||
Overall Dimensions (mm) (L*W*H) | 2100*1250*1000 | 2200*1600*1100 | 2200*1800*1100 |
Total Weight (kg) | 200 | 210 | 230 |
Engine Power | J170F Diesel Engine, 4.5HP | J170F Diesel Engine, 4.5HP | J170F Diesel Engine, 4.5HP |
Type | Single-cylinder, Horizontal, 4-cycle | ||
Fuel | Diesel | Diesel | Diesel |
Bore X Stroke (mm) | 70 X 75 | ||
Displacement | 0.288L | ||
Rated Speed r/min. | 2600 | ||
Cooling Method | Air Evaporative Cooling | Air Evaporative Cooling | Air Evaporative Cooling |
Lubrication Method | Centrifugal Splashing | Centrifugal Splashing | Centrifugal Splashing |
Starting Method | Hand Cranking | Hand Cranking | Hand Cranking |
Teeth Space (mm) | 127 | ||
Running Speed of Crank (r/min) | 550 | ||
Diameter of Star wheel(mm) | 280 | ||
Working Speed (km/h) | 2.6~3.6 | ||
Chain speed (m/s) | 2.24 | ||
Number of Operator | 1 | ||
Crop | Paddy, Wheat, Rage, Soya & Grass | ||
About packaging, for small size or single machine, we can offer free fumigation wooden case with steel frame, it not only can protect machine from damage, but also avoid checking when exporting.
For multiple machines or production line, it's better to loaded in standard container 20GP, 40GP, 40HQ, unually it needs wrapped with plasitc firstly, then loaded in container.
we can offer EXW, FOB and CIF terms.
EXW: You arrange the shipping details from our factory to your port by yourself.
FOB: We arrange freight transport to Qingdao, Shanghai or other ports of China, then you arrange the shipping details from China port to your country port.
CIF: We arrange all shipping details to your country port, and ensure machines smooth arrival.
1. Help you choose the most suitable machine.
2. Making the machine according to your request.
3. Give you machine’s details and video for help you use the machine more better.
4. One year warranty
5. Quality problem,we will send you the accessories.
6. Free repair whole using life without extra charge.
